Dell Inspiron 14 5451 Specifications
Summary
This document provides views and specifications for the Inspiron 14 5000 Series laptops (models 5458 and 5451). It details the computer's physical dimensions, port configurations including USB 3.0, HDMI, and media card reader, and system specifications such as processor options, memory configurations, and display features. The manual includes diagrams showing front, left, right, and base views with labeled components. This reference is intended for customers, sales staff, and support technicians who need detailed hardware information about these Inspiron laptop models.
Page 1 Text Content
Inspiron 14 5000 Series
Views
Specifications
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies. 2015 ‑ 02 Rev. A00 Regulatory model: P64G | Type: P64G001/P64G003
NOTE: The images in this document may differ from your computer
Computer model: Inspiron 14‑5458/Inspiron 14‑5451 depending on the configuration you ordered.
Page Summary Contents For Dell Inspiron 14 5451 Specifications

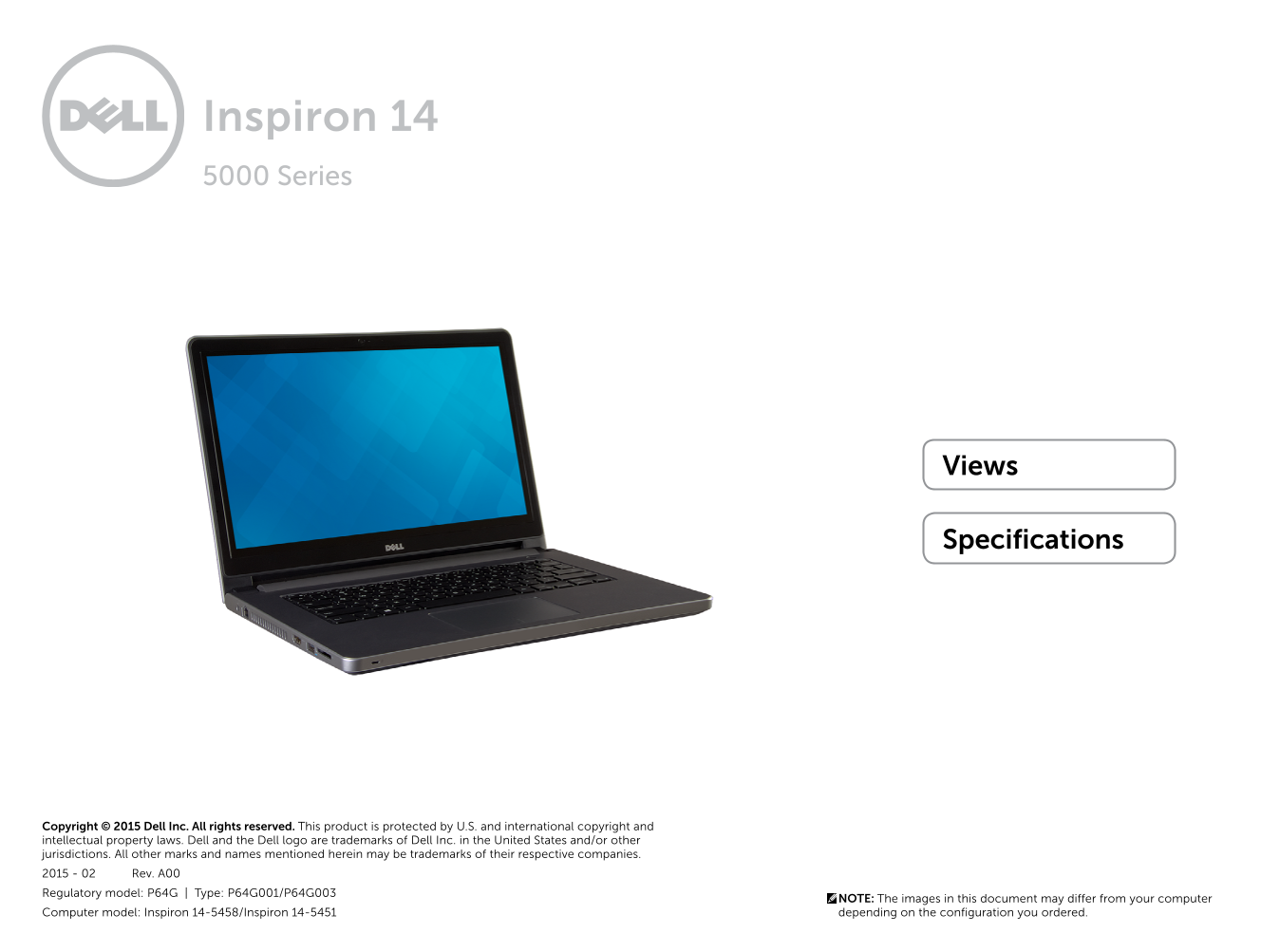

Page 1
Inspiron 14 5000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power and battery-status light/hard-drive activity light Indicates the power state and battery state of the computer. Solid White — Power adapter is connected and the battery is f...
Page 3
Views Specifications Power-adapter port HDMI port Connect a power adapter to provide power to your Connect a TV or another HDMI‑in enabled device. computer and charge the battery. Provides video and a...
Page 4
Views Specifications Headset port Optical drive Connect a headphone, a microphone, or a headphone Reads from and writes to CDs and DVDs. and microphone combo (headset). Security-cable slot USB 2.0 por...
Page 5
Views Specifications Left-click area Power button Press to left click. Press to turn on the computer if it is turned off, in sleep state or in hibernate state. Touch pad Press to put the computer in s...
Page 6
Views Specifications Display Left microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right microp...
Page 7
Specifications Views Dimensions and weight Height: Touch 23.60 mm (0.93 in) Non‑touch 23.35 mm (0.92 in) Width 345 mm (13.58 in) Depth 243 mm (9.56 in) Weight (maximum): Touch 2.18 kg (4.80 lb) Non‑to...
Page 8
Specifications Views System information Computer model Inspiron 14-5451 Inpiron 14-5458 Processor Intel Celeron Dual Core 4th Generation Intel Core i3 Intel Pentium Quad Core 5th Generation Intel Core...
Page 9
Specifications Views Memory Inspiron 14-5451 Inspiron 14-5458 Slots One SODIMM slot Two SODIMM slots Type DDR3L DDR3L Speed 1300 MHz 1600 MHz Configurations supported 2 GB, 4 GB, and 8 GB 2 GB, 4 GB, ...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port (Inspiron 14‑5458 only) USB Two USB 2.0 ports One USB 3.0 port Audio/video One HDMI port One headset port (headphone and micro...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11ac Wi‑Fi 802.11b/g/n Bluetooth 4.0 Intel Wi Di (optional) Dimensions and Sy...
Page 12
Specifications Views Video Inspiron 14-5458 Inspiron 14-5451 Controller: Integrated Intel HD Graphics Intel HD Graphics Intel HD Graphics 4400 Intel HD Graphics 5500 Discrete NVIDIA Ge Force 920M N/A ...
Page 13
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.2 W Microphone Single microphone (Inspiron 14‑5451) Digital array‑microphone...
Page 14
Specifications Views Storage Interface SATA 3 Gbps (Inspiron 14‑5451) SATA 6 Gbps (Inspiron 14‑5458) Hard drive One 2.5‑inch drive (supports Intel Smart Response Technology) Optical drive One 9.5 mm D...
Page 15
Specifications Views Media-card reader Type One SD card slot Cards supported SD card Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media‑card ...
Page 16
Specifications Views Display Type • 14‑inch HD WLED • 14‑inch HD WLED touch screen Resolution (maximum) 1366 x 768 Refresh rate 60 Hz Operating angle 0 degree (closed) to 135 degrees Pixel pitch 0.226...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Toggle Fn‑key lock Increase volume Sleep Toggle between power and Play previous track/chapter battery‑status light/hard‑drive act...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 HD at 30 fps Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video Audio Sto...
Page 20
Specifications Views Touch pad Resolution: Horizontal 1223 dpi Vertical 1573 dpi Dimensions: Width 105 mm (4.13 in) Height 65 mm (2.55 in) Dimensions and System Ports and Memory Communications Video A...
Page 21
Specifications Views Battery Type 4 cell “smart” lithium ion (40 WHr) 4 cell “smart” lithium ion (47 WHr) Dimensions: Width 270 mm (10.63 in) Depth 37.50 mm (1.47 in) Height 20 mm (0.78 in) Weight (ma...
Page 22
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum): 45 W 1.30 A 65 W 1.70 A Output current (maximum): 45 W 2.31 A 65 W 3.34 ...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
