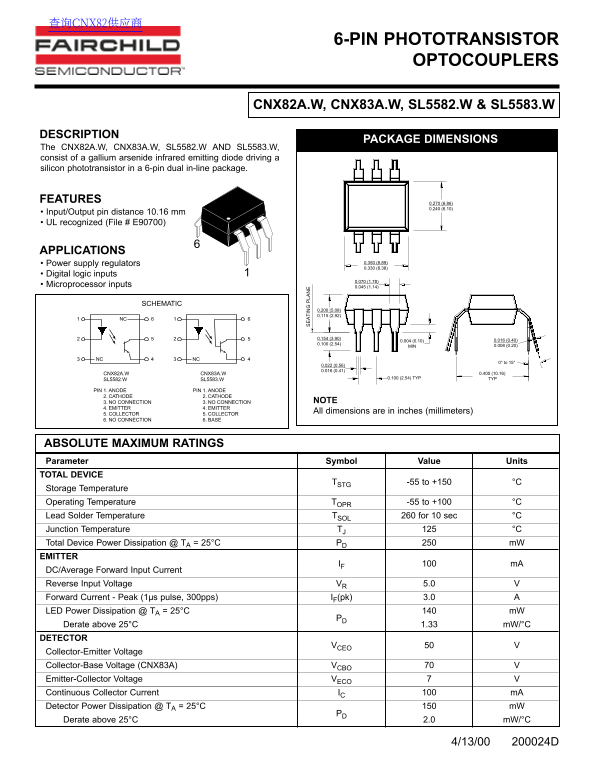

6-PIN PHOTOTRANSISTOR
OPTOCOUPLERS
CNX82A.W, CNX83A.W, SL5582.W & SL5583.W
DESCRIPTION
PACKAGE DIMENSIONS
The CNX82A.W, CNX83A.W, SL5582.W AND SL5583.W, consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
FEATURES
• Input/Output pin distance 10.16 mm • UL recognized (File # E90700)
APPLICATIONS
• Power supply regulators 0.350 (8.89) 0.330 (8.38)
• Digital logic inputs
• Microprocessor inputs 0.045 (1.14)
SCHEMATIC
0.200 (5.08) IN LA
NC NC
0° to 15°
CNX82A.W CNX83A.W 0.400 (10.16)
SL5582.W SL5583.W 0.100 (2.54) TYP TYP
PIN 1. ANODE PIN 1. ANODE
2. CATHODE 2. CATHODE
3. NO CONNECTION 3. NO CONNECTION NOTE
4. EMITTER 4. EMITTER
All dimensions are in inches (millimeters)
5. COLLECTOR 5. COLLECTOR 6. NO CONNECTION 6. BASE
ABSOLUTE MAXIMUM RATINGS Parameter Symbol Value Units TOTAL DEVICE
TSTG -55 to +150 °C
Storage Temperature Operating Temperature TOPR -55 to +100 °C Lead Solder Temperature TSOL 260 for 10 sec °C Junction Temperature TJ °C Total Device Power Dissipation @ TA = 25°C PD m W EMITTER
IF m A
DC/Average Forward Input Current Reverse Input Voltage VR 5.0 Forward Current - Peak (1µs pulse, 300pps) IF(pk) 3.0 LED Power Dissipation @ TA = 25°C m W
Derate above 25°C 1.33 m W/°C DETECTOR
Collector-Emitter Voltage Collector-Base Voltage (CNX83A) VCBO Emitter-Collector Voltage VECO Continuous Collector Current IC m A Detector Power Dissipation @ TA = 25°C m W
Derate above 25°C 2.0 m W/°C
