Dell W-AirWave 7.4 Configuration Guide
Summary
The Dell PowerConnect W-AirWave 7.4 Configuration Guide documents the network management platform for managing Dell PowerConnect W wireless networks. Published in December 2011, it covers system setup, device provisioning, RF management, and user role-based access control. Network administrators deploying AirWave for centralized wireless management can use this guide for configuration of monitoring, alerting, and reporting across Dell PowerConnect W access points and controllers.
Page 1 Text Content

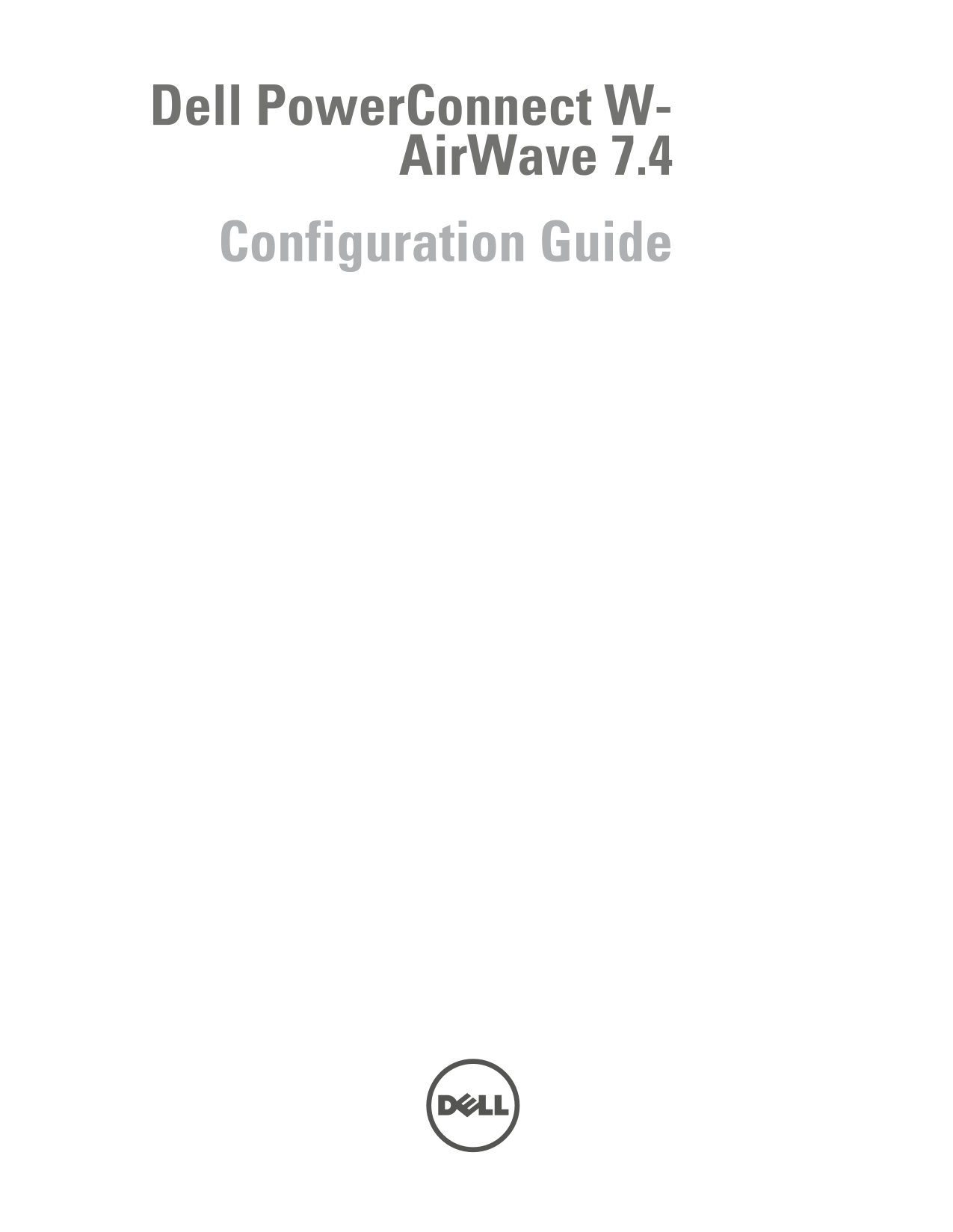

Dell Power Connect W-
Air Wave 7.4 Configuration Guide
Page Summary Contents For Dell W-AirWave 7.4 Configuration Guide
Page 1
Dell Power Connect W- Air Wave 7.4 Configuration Guide
Page 2
Copyright © 2011 Dell Power Connect W Networks, Inc. Dell Power Connect W Networks trademarks include , Dell Power Connect W Networks®, Dell Power Connect W Wireless Networks®, the registered Dell Pow...
Page 3
Contents Preface....................................................................................................................................................................... Document Audienc...
Page 4
General Profiles Guidelines General Controller Procedures and Guidelines Using Controllers in Dell Power Connect Configuration................................................ Pushing Device Configurat...
Page 5
Profiles IDS General Profiles IDS Signature Matching..................................................................................... Profiles IDS Signature Matching Signature........................
Page 6
Overview of IP Mobility Domains......................................................................................... Advanced Services IP Mobility.....................................................
Page 7
Preface Document Audience and Organization This configuration guide is intended for wireless network administrators and helpdesk personnel who deploy Aruba OS on the network and wish to manage it with...
Page 8
Contacting Support Table 2 Web Support Web Support Main Website dell.com Support Website support.dell.com Documentation Website support.dell.com/manuals 8 | Preface Dell Power Connect W-Air Wave 7.4 |...
Page 9
Chapter 1 Dell Power Connect W Configuration in Air Wave Introduction Aruba OS (AOS) is the operating system, software suite, and application engine that operates Dell Power Connect W-Series mobility ...
Page 10
Configuration changes are pushed to the controller via SSH with no reboot required. AMP only supports configuration of the settings which a master controller would push to the standby / local controll...
Page 11
Groups > Dell Power Connect W Config Page With Global Configuration Enabled—the way this page displays depends on whether global or group configuration is enabled in AMP Setup > General > Dev...
Page 12
Groups > Dell Power Connect W Config Page With Global Configuration Enabled When Use Global Dell Power Connect W Configuration is enabled in AMP Setup > General, focused submenu page displays an...
Page 13
Figure 4 Groups Dell Power Connect Config with Group-Level Configuration Dell Power Connect W Configuration Sections in the Tree View Whether you are using global or group configuration, the Dell Powe...
Page 14
You can import a controller configuration file from AOS for Dell Power Connect W AP Group deployment in Air Wave. For additional information, refer to the following sections in this document: “Setting...
Page 15
WLAN profiles contain several diverse settings including SSIDs, referenced Dell Power Connect W AP Groups, Traffic Management profiles, and device Folders. This document describes WLAN configuration i...
Page 16
Figure 7 Dell Power Connect Configuration Security Navigation The following general guidelines apply to Security profiles in Dell Power Connect W configuration: Roles can have multiple policies; each ...
Page 17
For additional information about IP Mobility and VPN Services, refer to “Advanced Services” on page 149. APs/Devices > List Page This page supports devices in all of Air Wave. This page supports co...
Page 18
Figure 11 APs/Devices Manage Page Illustration (Partial Display) APs/Devices > Monitor Page Used in conjunction with the Manage page, the Monitor page enables review of device-level settings. This ...
Page 19
Additional Concepts and Components of Dell Power Connect W Configuration Dell Power Connect W Configuration emphasizes the following components and network management concepts. Global Configuration an...
Page 20
Save, Save and Apply, and Revert Buttons Several Add or Detail pages in Dell Power Connect W Configuration include the Save, Save and Apply, and Revert buttons. These buttons function as follows: Save...
Page 21
Dell Power Connect W Configuration includes several settings or functions that are dependent on special licenses. The user interface conveys that a special license is required for any such setting, fu...
Page 22
If the page reports a device mismatch, the page will display an Import button that allows you to import the Dell Power Connect W-Series controller settings from a Dell Power Connect W-Series controlle...
Page 23
Figure 15 Dell Power Connect Configuration Dell Power Connect AP Groups Add/Edit Details Page (Partial View) The following section of this configuration guide provides additional information about con...
Page 24
“General Profiles Guidelines” on page 28 10. Provision multiple Dell Power Connect W AP Groups on one or more controllers by putting the controllers into an AMP group and configuring that group to use...
Page 25
Figure 17 APs/Devices Audit Page Illustration (Partial Display) Figure 18 APs/Devices Mismatched Page Illustration After initial AOS deployment with the Dell Power Connect W-Series Configuration featu...
Page 26
access this file from the System > Status page. For additional information, refer to the Dell Power Connect W- Air Wave 7.4 User Guide on support.dell.com/manuals. To resolve communication issues, ...
Page 27
Chapter 2 Using Dell Power Connect W Configuration in Daily Operations Introduction This chapter presents common tasks or concepts after initial setup of Dell Power Connect W Configuration is complete...
Page 28
Selecting Dell Power Connect W AP Groups To select Dell Power Connect W AP Groups, navigate to the Dell Power Connect W Configuration > Dell Power Connect W AP Groups page. This page is central to ...
Page 29
Group or WLAN setup. In the latter case, Air Wave takes you to profile setup on separate pages, then returns to the Dell Power Connect W AP Group or WLAN setup. For complete Profiles inventory and fie...
Page 30
Supporting APs with Dell Power Connect W Configuration AP Overrides Guidelines The AP Override component of Dell Power Connect W Configuration operates with the following principles: AP devices functi...
Page 31
4. On the APs/Devices > List page, you can specify the Group and Folder to which a device belongs. Click Modify Devices to change more than one device, or click the Wrench icon associated with any ...
Page 32
9. Click Modify Devices. 10. Select the APs you want to re-group. 11. In the field that states Move to Dell Power Connect W AP Group below the list of the devices, select the appropriate group and cli...
Page 33
Additional factors for visibility are as follows: Administrative and Management users in Air Wave can view the Dell Power Connect W Configuration page and the APs/Devices > Manage pages. Administra...
Page 34
a. At least one user must have administrative privileges, but several additional users may be required with less rights and visibility to support Dell Power Connect W Configuration without access to t...
Page 35
Appendix A Configuration Reference Introduction This appendix describes the pages, field-level settings, and interdependencies of Dell Power Connect W Configuration profiles. Additional information is...
Page 36
The Dell Power Connect W AP Groups page displays the following information for every group currently configured: Table 1 Dell Power Connect Configuration Dell Power Connect AP Groups Page Column Descr...
Page 37
Table 2 Dell Power Connect Configuration Dell Power Connect AP Groups Details, Settings and Default Values (Continued) Field Default Description Referenced Profiles 802.11a Radio Profile 5_am Defines ...
Page 38
Table 2 Dell Power Connect Configuration Dell Power Connect AP Groups Details, Settings and Default Values (Continued) Field Default Description AP System Profile default Defines administrative option...
Page 39
Table 2 Dell Power Connect Configuration Dell Power Connect AP Groups Details, Settings and Default Values (Continued) Field Default Description Mesh Cluster Profiles Add New Mesh Select to display ne...
Page 40
Table 4 AP Overrides Add or Edit Page Fields (Continued) Field Default Description WLANs WLANs This section lists the WLANs currently defined in Dell Power Connect Configuration by default. You can di...
