The Dell PowerEdge M1000e Systems Configuration Guide provides setup instructions for this blade server chassis enclosure. It covers system overview, control panel features including the LCD module with menu navigation, back-panel features, and blade server installation. Published in August 2008, this guide is intended for data center administrators deploying PowerEdge blade servers in the M1000e enclosure, including iDRAC configuration and Dell OpenManage integration for remote management.
Page 1 Text Content
U003Cbk0.book Page 1 Wednesday, July 30, 2008 12:19 PM

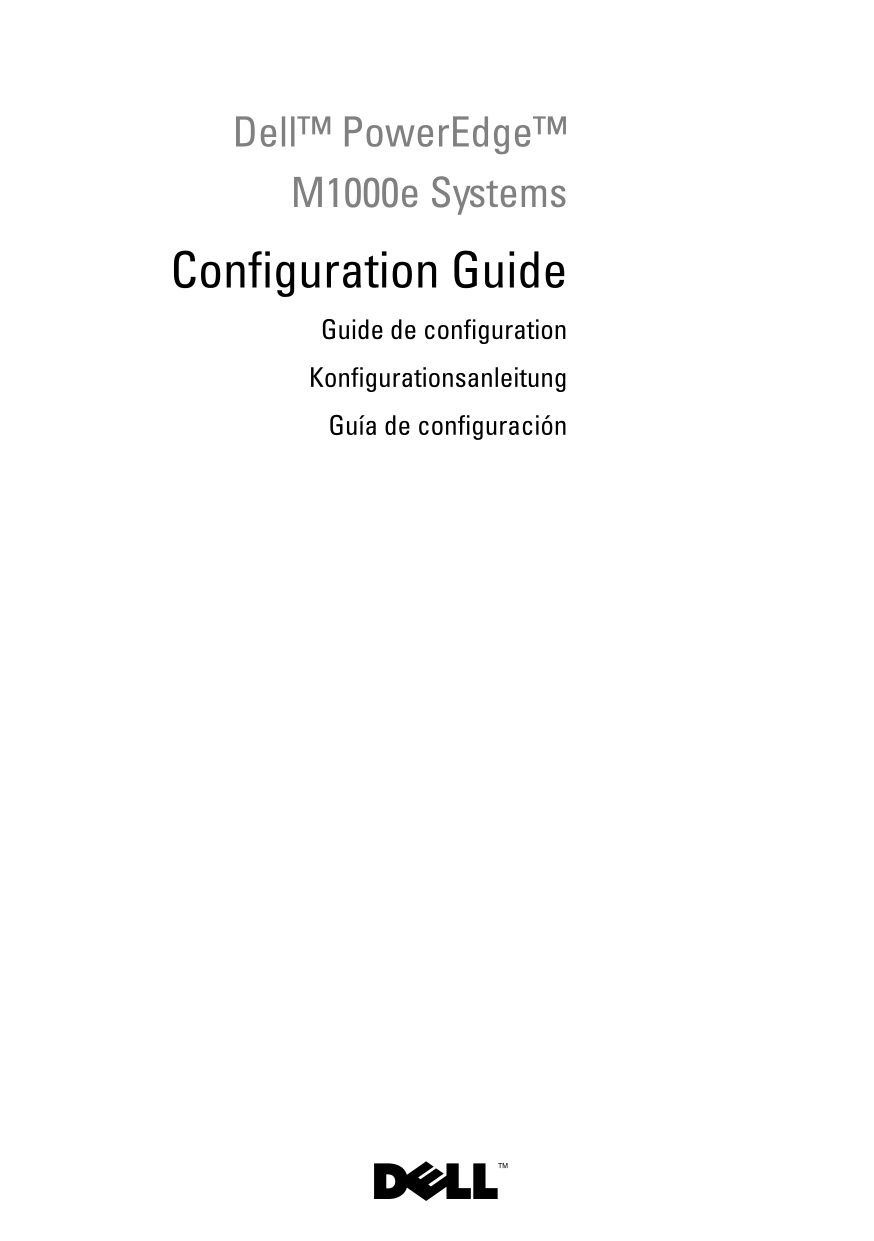

Dell™ Power Edge™ M1000e Systems
Configuration Guide Guide de configuration Konfigurationsanleitung
Guía de configuración
Page Summary Contents For Dell Configuration Guide
Page 1
U003Cbk0.book Page 1 Wednesday, July 30, 2008 12:19 PM Dell™ Power Edge™ M1000e Systems Configuration Guide Guide de configuration Konfigurationsanleitung Guía de configuración
Page 2
U003Cbk0.book Page 2 Wednesday, July 30, 2008 12:19 PM
Page 3
U003Cbk0.book Page 1 Wednesday, July 30, 2008 12:19 PM Dell™ Power Edge™ M1000e Systems Configuration Guide
Page 4
U003Cbk0.book Page 2 Wednesday, July 30, 2008 12:19 PM Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your computer. NOTICE: A NOTICE indic...
Page 5
U003Cbk0.book Page 3 Wednesday, July 30, 2008 12:19 PM Contents About Your System System Overview System Control Panel Features LCD Module LCD Module Menus Back-Panel Features Blades CMC Module CMC Da...
Page 6
U003Cbk0.book Page 4 Wednesday, July 30, 2008 12:19 PM Configuring i DRAC Networking Using the Web-Based Interface Setting the First Boot Device for Servers Configuring and Managing Power Installing o...
Page 7
U003Cbk0.book Page 5 Wednesday, July 30, 2008 12:19 PM Pass-through Modules Ethernet Pass-through Module Fibre Channel Pass-through Module Contents
Page 8
U003Cbk0.book Page 6 Wednesday, July 30, 2008 12:19 PM Contents
Page 9
U003Cbk0.book Page 7 Wednesday, July 30, 2008 12:19 PM About Your System System Overview Your system can include up to 16 half-height blades (server modules), eight full-height blades, or a mixture of...
Page 10
U003Cbk0.book Page 8 Wednesday, July 30, 2008 12:19 PM Figure 1-1. Blade Numbering – Half-Height Blades Configuration Guide
Page 11
U003Cbk0.book Page 9 Wednesday, July 30, 2008 12:19 PM Figure 1-2. Blade Numbering - Full Height Blades Figure 1-3. Blade Numbering - Mixed Full-Height and Half-Height Blades Configuration Guide
Page 12
U003Cbk0.book Page 10 Wednesday, July 30, 2008 12:19 PM System Control Panel Features Figure 1-4 shows the control panel features on the M1000e enclosure front panel. Figure 1-4. Control Panel Feature...
Page 13
U003Cbk0.book Page 11 Wednesday, July 30, 2008 12:19 PM LCD Module The LCD module provides an initial configuration/deployment wizard, as well as access to infrastructure and blade information and err...
Page 14
U003Cbk0.book Page 12 Wednesday, July 30, 2008 12:19 PM LCD Module Menus Main Menu The Main Menu options include links to the Server Menu, the Enclosure Menu, and the LCD Setup Menu. LCD Setup Menu Yo...
Page 15
U003Cbk0.book Page 13 Wednesday, July 30, 2008 12:19 PM Back-Panel Features The back of the M1000e enclosure supports six I/O modules, one or two CMC modules, an optional i KVM module, nine fan module...
Page 16
U003Cbk0.book Page 14 Wednesday, July 30, 2008 12:19 PM Figure 1-7. Front Panel Features - Power Edge M600 and M605 blade handle release button hard drives (2) blade status/identification indicator US...
Page 17
U003Cbk0.book Page 15 Wednesday, July 30, 2008 12:19 PM Figure 1-8. Front Panel Features - Power Edge M905 and M805 blade handle release button hard drives (2) blade status/identification indicator US...
Page 18
U003Cbk0.book Page 16 Wednesday, July 30, 2008 12:19 PM CMC Module Figure 1-9. CMC Module Features Ethernet connector Gb1 Ethernet connector STK (used for daisy-chaining CMCs in separate enclosures) l...
Page 19
U003Cbk0.book Page 17 Wednesday, July 30, 2008 12:19 PM CMC Daisy Chaining (Enclosure Stacking) CMC daisy chaining can be utilized to minimize the number of network connections required for chassis (e...
Page 20
U003Cbk0.book Page 18 Wednesday, July 30, 2008 12:19 PM Figure 1-10. CMC Daisy-Chaining – Enclosure With Redundant CMC Modules Management network segment CMC1 – cable from connector Gb1 to network CMC...
Page 21
U003Cbk0.book Page 19 Wednesday, July 30, 2008 12:19 PM i KVM Switch Module The optional Avocent i KVM analogue switch module provides connections for a keyboard, video (monitor), and mouse. It includ...
Page 22
U003Cbk0.book Page 20 Wednesday, July 30, 2008 12:19 PM Figure 1-11 shows the external features of the i KVM module. Figure 1-11. Avocent i KVM Switch Module identification indicator status indicator ...
Page 23
U003Cbk0.book Page 21 Wednesday, July 30, 2008 12:19 PM Initial System Configuration Before You Begin Power Requirements NOTICE: The enclosure power supplies must be connected to a Type B or permanent...
Page 24
U003Cbk0.book Page 22 Wednesday, July 30, 2008 12:19 PM Press the power button on the enclosure control panel. See Figure 1-4. Configure the CMC network settings. The LCD Configuration Wizard allows y...
Page 25
U003Cbk0.book Page 23 Wednesday, July 30, 2008 12:19 PM Configuring the CMC Network Settings Using the LCD Configuration Wizard When you first start up your system, the screen on the LCD module will d...
Page 26
U003Cbk0.book Page 24 Wednesday, July 30, 2008 12:19 PM If desired, configure the i DRAC network setting for DHCP mode. NOTE: You cannot set a static IP address for the i DRAC using the LCD Configurat...
Page 27
U003Cbk0.book Page 25 Wednesday, July 30, 2008 12:19 PM Configure the CMC network settings: To set a static IP address, type setniccfg -s<IP address><network mask><gateway> and press...
Page 28
U003Cbk0.book Page 26 Wednesday, July 30, 2008 12:19 PM The CMC Login page appears. NOTE: The default CMC user name is root, and the password is calvin. The root account is the default administrative ...
Page 29
U003Cbk0.book Page 27 Wednesday, July 30, 2008 12:19 PM Click the Network/Security tab, and then click the Users sub-tab. The Users page appears, listing each user’s user ID, login state, user name, a...
Page 30
U003Cbk0.book Page 28 Wednesday, July 30, 2008 12:19 PM Enable or disable IPMI over LAN by checking the or unchecking the checkbox next to the server beneath the Enable IPMI over LAN heading. Enable o...
Page 31
U003Cbk0.book Page 29 Wednesday, July 30, 2008 12:19 PM NOTE: To perform power management actions, you must have Chassis Control Administrator privileges. Log in to the CMC Web-based interface. Select...
Page 32
U003Cbk0.book Page 30 Wednesday, July 30, 2008 12:19 PM Verify that the active or primary CMC firmware is at the requested level using the getsysinfo command or through the Web-based interface. Once b...
Page 33
U003Cbk0.book Page 31 Wednesday, July 30, 2008 12:19 PM Click Yes to continue. The firmware transfer process will begin and the status will display the message "Firmware Update in Progress"....
Page 34
U003Cbk0.book Page 32 Wednesday, July 30, 2008 12:19 PM Click the Update tab. The Updatable Components page appears. Click the i KVM name. The Firmware Update page appears. In the Value field, type th...
Page 35
U003Cbk0.book Page 33 Wednesday, July 30, 2008 12:19 PM Enter a screen delay time of at least 1 second. Click OK. Setting the Screen Delay time to 1 second allows you to soft switch to a server withou...
Page 36
U003Cbk0.book Page 34 Wednesday, July 30, 2008 12:19 PM Table 2-3. Cabling Requirements for External Digital KVM Switches Switch Tiering Requirements Dell Power Connect 2161DS-2, Seamless tiering usin...
Page 37
U003Cbk0.book Page 35 Wednesday, July 30, 2008 12:19 PM To access the Main dialog box: Press <Print Screen> to launch the OSCAR interface. The Main dialog box appears. or If a password has been ...
Page 38
U003Cbk0.book Page 36 Wednesday, July 30, 2008 12:19 PM If a cascade switch was detected, the Enter Cascade Switch Information dialog box appears. Select the type of switch connected to the appliance ...
Page 39
U003Cbk0.book Page 37 Wednesday, July 30, 2008 12:19 PM Configuring the I/O Modules Overview The M1000e enclosure supports three redundant I/O fabrics, selectable between combinations of Ethernet and ...
Page 40
U003Cbk0.book Page 38 Wednesday, July 30, 2008 12:19 PM Fabric A Fabric A is a redundant Gb Ethernet fabric, supporting I/O module slots A1 and A2. The integrated Ethernet controllers in each blade di...
