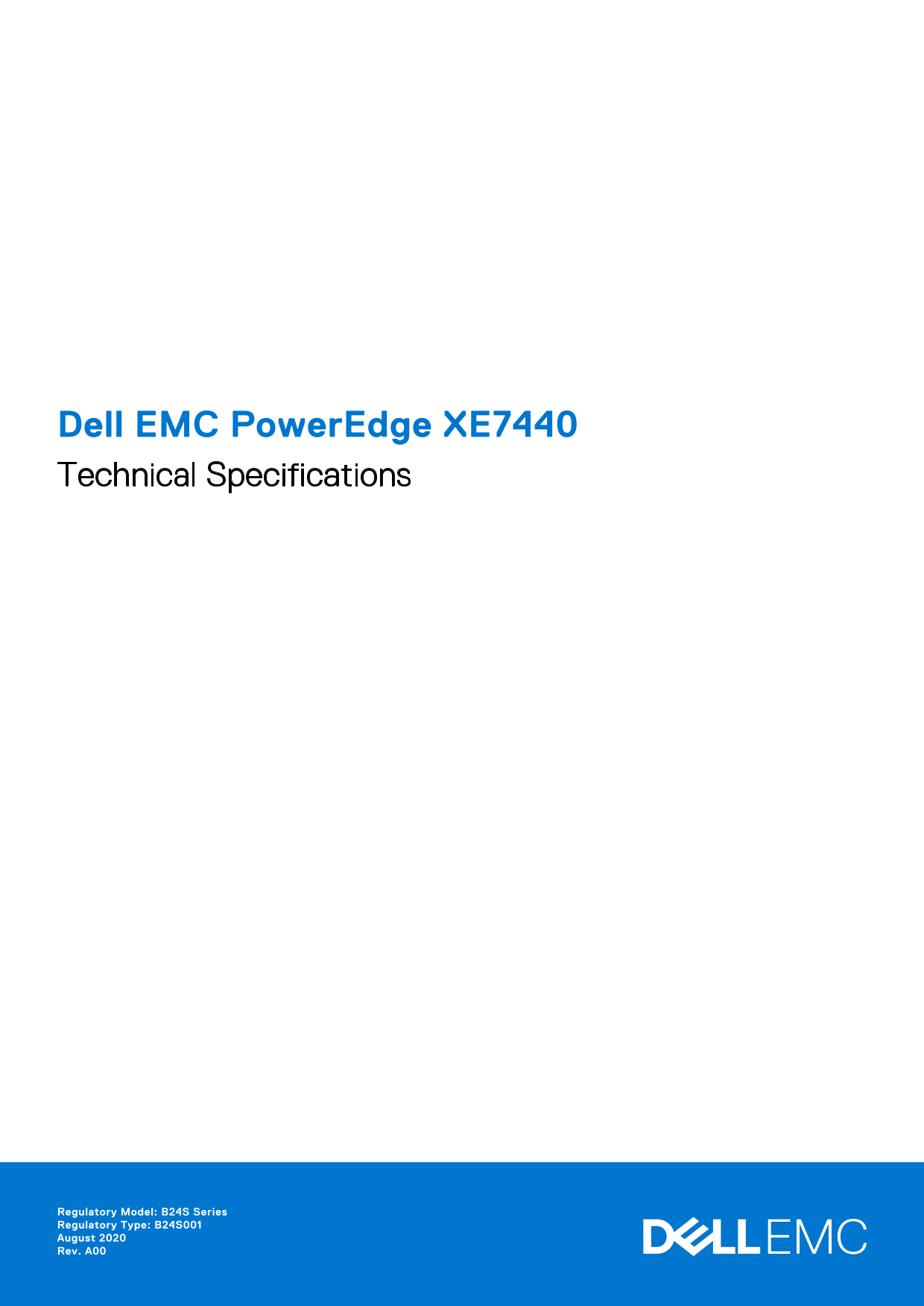

Dell EMC Power Edge XE7440 Technical Specifications Regulatory Model: B24S Series Regulatory Type: B24S001 August 2020 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Power Edge XE7440 overview........................................................................................4 Chapter 2: Technical specifications................................
Page 4
Power Edge XE7440 overview The Power Edge XE7440 server is a 1U server that supports: Two Intel Xeon Cascade Lake scalable processors (up to 150 W) with 26 cores per processor 16 DDR4 RDIMM and Load R...
Page 5
Technical specifications The technical and environmental specifications of your system are outlined in this section. Topics: Dimensions of the Power Edge XE7440 sled Chassis weight Processor specifica...
Page 6
Chassis weight Table 2. Chassis weight of the Power Edge XE7100 enclosure with Power Edge XE7440 and XE7420 sleds System Maximum weight (with all sleds and drives) Chassis weight without sled 132.26 K...
Page 7
Table 4. Cooling fan-mapping (continued) Fan name and configuration i DRAC sensor number (Node_A) FAN 7 3E FAN 8 3F FAN 9 FAN 10 FAN 11 FAN 12 (Node_B) FAN 13 FAN 14 FAN 15 FAN 16 FAN 17 E2 FAN 18 E3 ...
Page 8
Table 5. Expansion bus specifications PCIe Slots Description Form factor x8 DCS Mezz PCIe riser Slot 1: x8 PCIe Gen3 from processor 1 Mini PERC form factor Slot 2: x8 PCIe Gen3 from processor 1 Standa...
Page 9
Video specifications The Power Edge XE7440 sled supports a Matrox G200 integrated graphics card with 16 MB RAM. Table 8. Supported video resolution options Resolution Refresh rate (Hz) Color depth (bi...
Page 10
Relative humidity specifications Table 11. Relative humidity specifications Relative humidity Specifications Storage 5% to 95% RH with 27°C (80.6°F) maximum dew point. Atmosphere must be noncondensing...
Page 11
Table 14. Gaseous contamination specifications Gaseous contamination Specifications Copper coupon corrosion rate <300 Å/month per Class G1 as defined by ANSI/ ISA71.04-2013 Silver coupon corrosion ...
Page 12
System diagnostics and indicator codes This section describes the diagnostic indicators on the system front panel that displays the system status during system startup. Topics: NIC indicator codes Usi...
Page 13
Dell Embedded System Diagnostics NOTE: The Dell Embedded System Diagnostics is also known as Enhanced Pre-boot System Assessment (e PSA) diagnostics. The Embedded System Diagnostics provide a set of o...
Page 14
Documentation resources This section provides information about the documentation resources for your system. To view the document that is listed in the documentation resources table: From the Dell EMC...
Page 15
Table 20. Additional documentation resources for your system (continued) Task Document Location For information about installing the www.dell.com/operatingsystemmanuals operating system, see the opera...
Page 16
Getting help Topics: Contacting Dell EMC Documentation feedback Accessing system information by using QRL Receiving automated support with Support Assist Recycling or End-of-Life service information C...
Page 17
Reference materials, including the Installtion and Service Manual, LCD diagnostics, and mechanical overview Your system service tag to quickly access your specific hardware configuration and warranty ...
