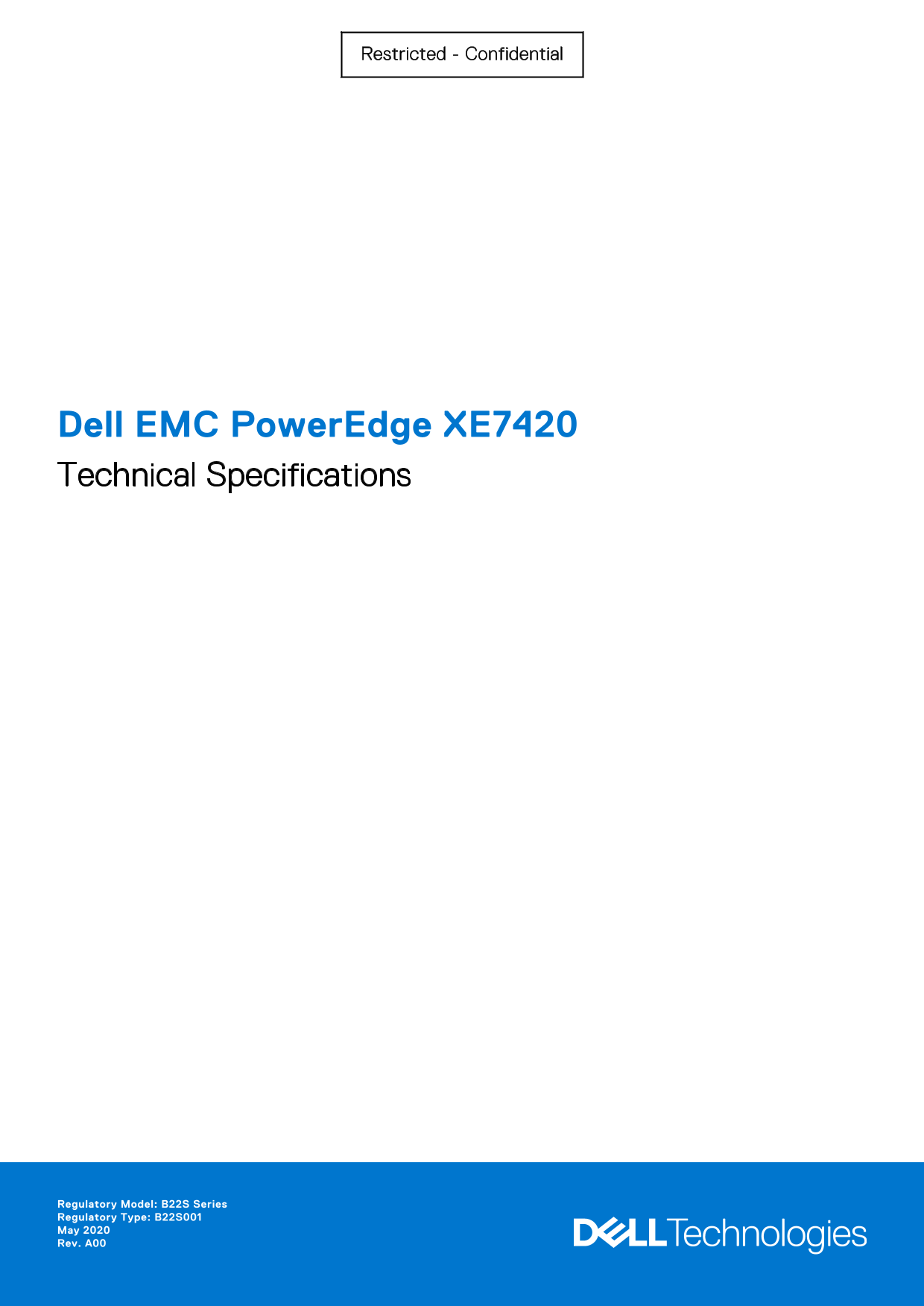

Restricted - Confidential Dell EMC Power Edge XE7420 Technical Specifications Regulatory Model: B22S Series Regulatory Type: B22S001 May 2020 Rev. A00
Page 2
Restricted - Confidential Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damag...
Page 3
Restricted - Confidential Contents Chapter 1: Power Edge XE7420 overview........................................................................................4 Chapter 2: Technical specifications......
Page 4
Restricted - Confidential Power Edge XE7420 overview The Power Edge XE7420 server is a 1U server that supports: Two Intel Xeon Cascade Lake scalable processors (up to 150 W) with 26 cores per processo...
Page 5
Restricted - Confidential Technical specifications The technical and environmental specifications of your system are outlined in this section. Topics: Dimensions of the Power Edge XE7420 sled Chassis ...
Page 6
Restricted - Confidential Chassis weight Table 2. Chassis weight of the Power Edge XE7100 enclosure with Power Edge XE7440 and XE7420 sleds System Maximum weight (with all sleds and drives) Chassis we...
Page 7
Restricted - Confidential Table 4. Cooling fan-mapping (continued) Fan name and configuration i DRAC sensor number (Node_A) FAN 7 3E FAN 8 3F FAN 9 FAN 10 FAN 11 FAN 12 (Node_B) FAN 13 FAN 14 FAN 15 F...
Page 8
Restricted - Confidential Table 5. Expansion bus specifications PCIe Slots Description Form factor x8 DCS Mezz PCIe riser Slot 1: x8 PCIe Gen3 from processor 1 Mini PERC form factor Slot 2: x8 PCIe Ge...
Page 9
Restricted - Confidential Video specifications The Power Edge XE7420 sled supports a Matrox G200 integrated graphics card with 16 MB RAM. Table 8. Supported video resolution options Resolution Refresh...
Page 10
Restricted - Confidential Relative humidity specifications Table 11. Relative humidity specifications Relative humidity Specifications Storage 5% to 95% RH with 27°C (80.6°F) maximum dew point. Atmosp...
Page 11
Restricted - Confidential Table 14. Gaseous contamination specifications Gaseous contamination Specifications Copper coupon corrosion rate <300 Å/month per Class G1 as defined by ANSI/ ISA71.04-201...
Page 12
Restricted - Confidential System diagnostics and indicator codes This section describes the diagnostic indicators on the system front panel that displays the system status during system startup. Topic...
Page 13
Restricted - Confidential Dell Embedded System Diagnostics NOTE: The Dell Embedded System Diagnostics is also known as Enhanced Pre-boot System Assessment (e PSA) diagnostics. The Embedded System Diag...
Page 14
Restricted - Confidential Documentation resources This section provides information about the documentation resources for your system. To view the document that is listed in the documentation resource...
Page 15
Restricted - Confidential Table 20. Additional documentation resources for your system (continued) Task Document Location For information about installing the www.dell.com/operatingsystemmanuals opera...
