Dell EMC OpenManage Port Information Guide Version 10.1.0.0
Summary
This is the Dell EMC OpenManage Port Information Guide version 10.1.0.0, a comprehensive reference for network ports used by Dell systems management software. The guide details port requirements for OpenManage Essentials, Chassis Management Controller, OpenManage Integration for VMware vCenter, OpenManage Server Administrator, and iDRAC. It includes tables listing port numbers, protocols, encryption levels, and traffic directions. This manual is designed for network administrators and security professionals who need to configure firewalls and network policies for Dell management tools.
Page 1 Text Content

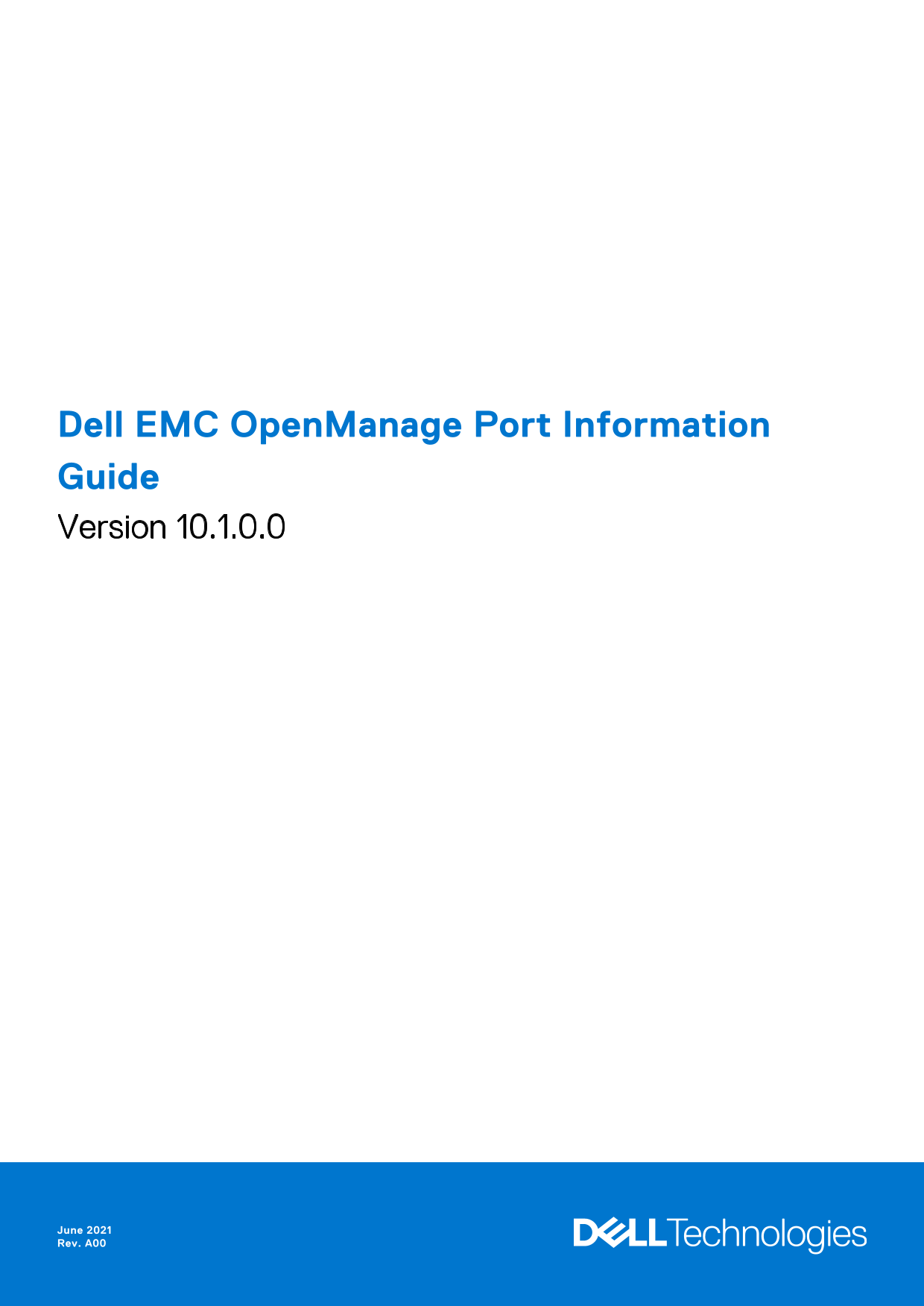

Dell EMC Open Manage Port Information Guide Version 10.1.0.0
June 2021 Rev. A00
Page Summary Contents For Dell EMC OpenManage Port Information Guide Version 10.1.0.0
Page 1
Dell EMC Open Manage Port Information Guide Version 10.1.0.0 June 2021 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Introduction................................................................................................................. Accessing support content from the Dell EMC support si...
Page 4
Introduction The Dell EMC Open Manage Port Information document helps system administrators and technicians to identify the ports usage in Dell EMC Open Manage systems management software, standard op...
Page 5
The Dell EMC Open Manage Server Administrator CIM Reference Guide documents the Common Information Model (CIM) provider, an extension of the standard management object format (MOF) file. The CIM provi...
Page 6
Ports The following tables list the ports used by the Open Manage systems management software, standard operating system services and other agent applications. NOTE: Ports with the correct configurati...
Page 7
Open Manage Essentials Management Stations Table 1. Supported Protocols and Ports on Management Stations Port Protocol Port Type Maximum Direction Usage Numbe Encryption Level SMTP TCP None In/Out Opt...
Page 8
Table 2. Supported Protocols and Ports on Managed Nodes (continued) Port Number Protocol Port Type Maximum Direction Usage Encryption Level 443* Proprietary/ TCP None In/Out i DRAC/OMSA WSMAN communic...
Page 9
Table 3. Supported Protocols and Ports (continued) Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level LDAP TCP SSL Out LDAPS, Active Directory client Yes LDAP TCP No...
Page 10
Table 4. Supported Protocols and Ports on Virtual Appliance (continued) Port Protocols Port Type Maximum Direction Destination Usage Description Number Encryption Level SNMP Agent UDP None In i DRAC/E...
Page 11
Table 4. Supported Protocols and Ports on Virtual Appliance (continued) Port Protocols Port Type Maximum Direction Destination Usage Description Number Encryption Level and mountd services by the V2 a...
Page 12
Table 5. Supported Protocols and Ports on Managed Nodes (continued) Port Protocols Port Type Maximum Direction Destination Usage Description Number Encryption Level station. This port has to open from...
Page 13
Table 6. Supported Protocols and Ports on Managed Nodes (continued) Port Protocols Port Type Maximum Direction Destination Usage Description Number Encryption Level and firmware update. To access the ...
Page 14
Table 7. Supported Protocols and Ports (continued) Port Number Protocols Port Type Direction Usage Configurable software update feature (for Windows operating systems). SNMP UDP In/Out SNMP query mana...
Page 15
Table 9. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level SNMP UDP 8.1 None Out SNMP trap No event 1024-65535 DCO...
Page 16
Table 11. Supported Protocols and Ports (continued) Port Protoco Port Versio Maximum Directio Usage Configurable Number Type Encryption Level 53, 80, N/A TCP N/A N/A N/A Symantec Console—Console using...
Page 17
Table 11. Supported Protocols and Ports (continued) Port Protoco Port Versio Maximum Directio Usage Configurable Number Type Encryption Level N/A TCP N/A N/A N/A Deployment Solutions N/A communication...
Page 18
Managed Node Table 13. Supported Protocols and Ports on Managed Nodes Port Number Protocol Port Maximum Direction Usage Type Encryption Level SSH TCP 256–bit AES In/Out Non-Dell chassis communication ...
Page 19
Dell Lifecycle Controller Integration for System Center Virtualization Machine Manager Table 16. Management Station Port Protocol Port Maximum Direction Usage Configurable Number Type Encryption Level...
Page 20
Dell EMC Open Manage Integration for Microsoft System Center for Operations Manager Table 19. Management Station Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level S...
Page 21
Table 22. Managed Node (continued) Port Protocols Port Maximum Direction Usage Configurable Number Type Encryption Level SNMP UDP None Out Hardware SNMP Events No Symbol SDK TCP None In Power Vault MD...
Page 22
Dell EMC Open Manage Connection for IBM Tivoli Netcool/OMNIbus Table 25. Management Station Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level SNMP UDP None In Event...
Page 23
Dell EMC i DRAC Service Module Table 29. Supported Protocols and Ports Port Protocols Port Direction Usage Configurable Number Type WSMan, GUI, TCP In/Out i DRAC Service Module’s feature, Yes Redfish,...
Page 24
i DRAC6 for Rack and Tower Servers Table 32. Supported Protocols and Ports Port Number Protocols Configurable SSH Yes Telnet Yes SMTP No DNS No DHCP-assigned IP address No TFTP No HTTP Yes SNMP Agent ...
Page 25
Table 33. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configura Encryption ble Level HTTPS TCP 1.0 128-bit SSL In/Out Web management Yes R...
Page 26
Table 34. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level through Trivial FTP HTTP TCP 1.0 None In/Out Redirecte...
Page 27
Digital KVM Table 36. Supported Protocols and Ports Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level Proprietary TCP 1.0 128-bit SSL In/Out Video No redire...
Page 28
Table 37. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level GUI and remote racadm CLI utility RMCP/ UDP 1.0 128-bi...
Page 29
Table 38. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level DHCP UDP 1.0 None In/Out DHCP No assigned IP address T...
