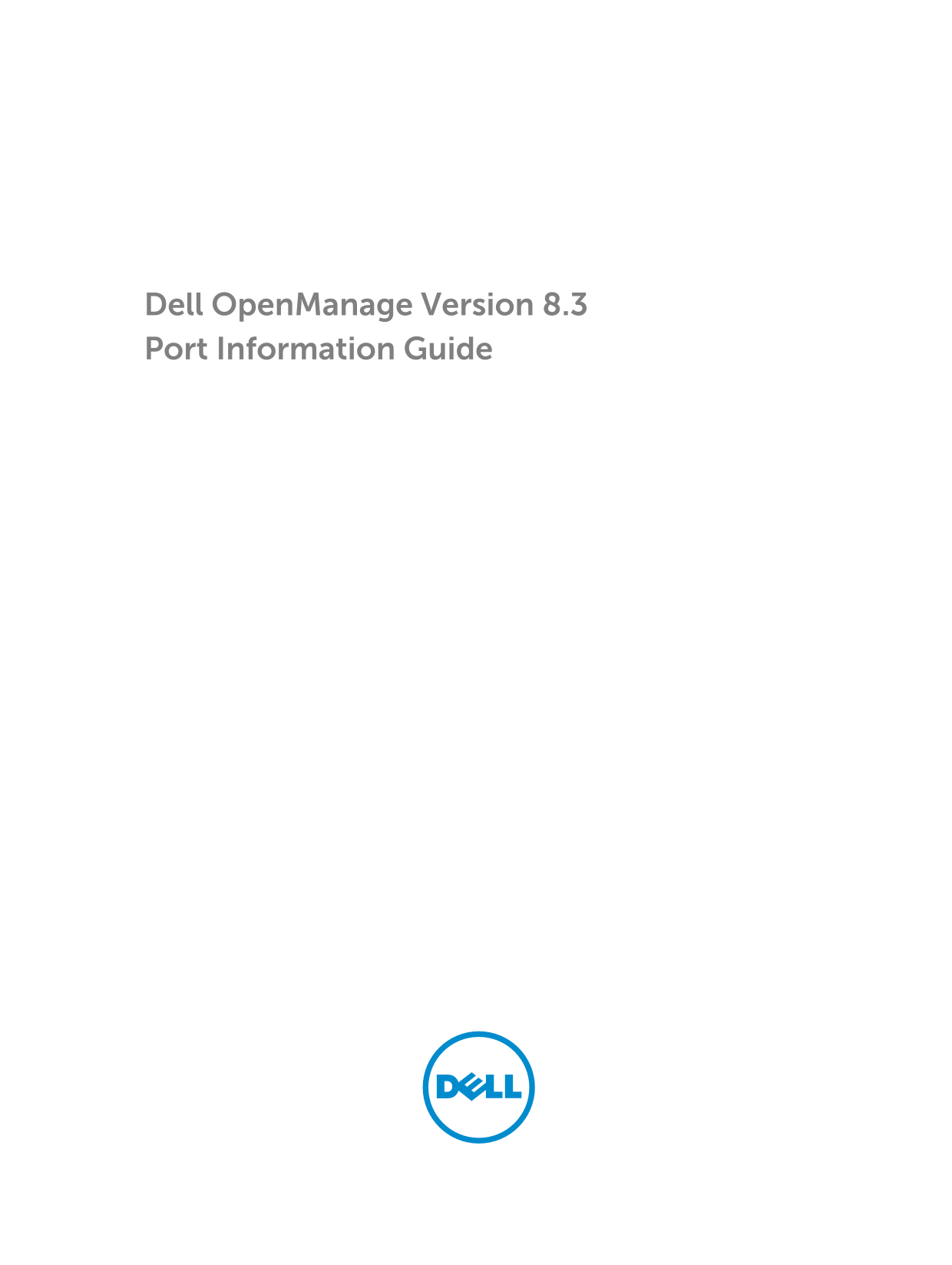

Dell OpenManage Version 8.3 Port Information Guide
Summary
Port information guide for Dell OpenManage version 8.3 systems management software. Documents network ports used by OpenManage Essentials, Server Administrator, and IT Assistant. Specifies port numbers for management stations, managed nodes, web interfaces, SNMP, and inter-component messaging. Provides firewall configuration guidance. Targeted at network administrators configuring security for Dell server management infrastructure.
Page 1 Text Content
Dell Open Manage Version 8.3 Port Information Guide
Page Summary Contents For Dell OpenManage Version 8.3 Port Information Guide
Page 1
Dell Open Manage Version 8.3 Port Information Guide
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1 Introduction........................................................................................................... Server Build and Update Utility Deprecated .............................
Page 4
DRAC 4................................................................................................................................................
Page 5
Introduction The Dell Open Manage Port Information document helps system administrators and technicians to identify the ports used by the Dell Open Manage systems management software, standard operati...
Page 6
Monitoring systems’ health. Viewing and managing system alerts. Performing system updates. Viewing hardware inventory and compliance reports. For more information regarding Dell Open Manage Essentials...
Page 7
The Dell Open Manage Server Administrator SNMP Reference Guide documents the Simple Network Management Protocol (SNMP) management information base (MIB). The SNMP MIB defines variables that extend the...
Page 8
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales...
Page 9
Ports The following tables list the ports used by the Dell Open Manage systems management software, standard operating system services and other agent applications. NOTE: Ports with the correct config...
Page 10
Port Number Protocol Port Type Maximum Direction Usage Encryption Level client Remote software updates to Server Administrator— for systems supporting Linux operating systems Performance monitoring in...
Page 11
Port Number Protocol Port Type Maximum Direction Usage Encryption Level 443* Proprietary/ TCP None In/Out i DRAC/OMSA WSMAN communicatio 623* RMCP UDP None In/Out IPMI access through LAN Proprietary T...
Page 12
Dell Chassis Management Controller Table 3. Supported Protocols and Ports Port Protocol Port Maximum Directio Usage Configurable Number Type Encryption Level FTP TCP None Out FTP data client No FTP TC...
Page 13
Virtual Appliance Table 4. Supported Protocols and Ports on Virtual Appliance Port Number Protocols Port Type Maximum Direction Usage Configurabl Encryption Level FTP TCP None Out FTP No command clien...
Page 14
Port Number Protocols Port Type Maximum Direction Usage Configurabl Encryption Level BOOTP UDP None Out Bootstrap No Protocol Client TFTP UDP 128–bit All Trivial File No Transfer NFS UDP/TCP 128–bit I...
Page 15
Port Protocol Port Directio Usage Configurable Number Type Essentials). Remote Software Update feature (for Linux operating systems). SMTP TCP In/Out Optional email alert messages from No Server Admin...
Page 16
Dell Command | Monitor (Dell Open Manage Client Instrumentation) Table 8. Supported Protocols and Ports Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level H...
Page 17
Dell Open Manage Baseboard Management Utility Table 9. Supported Protocols and Ports Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level Telnet TCP 1.x None ...
Page 18
Port Protoc Port Versi Maximum Directi Usage Configurable Numbe ol Type on Encryptio on n Level UDP UDP 1.x – None In/Out Wake-on-LAN Yes 53, 80, TCP Symantec Console — 135, Console using a remote 137...
Page 19
Port Protoc Port Versi Maximum Directi Usage Configurable Numbe ol Type on Encryptio on n Level PXE TCP Deployment Solution: PXE configuration to talk with PXE configuration Service TCP Monitor Soluti...
Page 20
Port Protoc Port Versi Maximum Directi Usage Configurable Numbe ol Type on Encryptio on n Level 52028, TCP NS Client Multicast 1024 - DCOM TCP/U Unkn None In/Out WMI query management OS - DP own (rand...
Page 21
Dell Lifecycle Controller Integration for System Center Configuration Manager Table 13. Management Station Port Protocol Port Maximum Directio Usage Configura Number Type Encryption ble Level FTP TCP ...
Page 22
Port Protoc Port Maximum Direction Usage Configurable Number ols Type Encryptio n Level HTTPS TCP 128-bit In HTTPS server No WSMA TCP 128-bit In/Out i DRAC/OMSA communication HTTPS TCP 128-bit In Auto...
Page 23
Dell Management Pack for System Center Operation Manager Table 18. Management Station Port Protocols Port Maximum Directio Usage Configurabl Number Type Encryption Level SNMP UDP None In/Out SNMP Quer...
Page 24
Dell Smart Plug-in (SPI) for HP Operations Manager for Microsoft Windows Table 20. Management Station Port Protocols Port Maximum Directio Usage Configurable Number Type Encryption Level SNMP UDP None...
Page 25
Table 23. Managed Node Port Protocols Port Maximum Direction Usage Configurable Number Type Encryption Level WSMAN TCP 128-bit In/Out ESXi No Communication SNMP UDP None In/Out SNMP Query No Managemen...
Page 26
Port Protocols Port Maximum Direction Usage Configurable Number Type Encryption Level HTTP/ TCP None In/Out OMSA Web Console No HTTPS Dell Open Manage Plug-in for Nagios Table 26. Management Station P...
Page 27
Port Number Protocols Configurable Virtual Console Keyboard and Yes mouse redirection, Virtual Media, Virtual Folders, Remote File Share Virtual Network Computing Yes (VNC) Table 29. Supported Protoco...
Page 28
Port Number Protocols Configurable HTTPS Yes RMCP/RMCP+ No LDAPS No Virtual Console/Virtual Media Yes LDAPS for global catalog (GC) No i DRAC for Blade Servers Table 31. Supported Protocols and Ports ...
Page 29
Port Protocols Port Type Version Maximum Directio Usage Configu Number Encryption rable Level LDAPS TCP 1.0 128-bit SSL In/Out Optional ADS No authentication LDAPS for TCP 1.0 128-bit SSL In/Out Optio...
Page 30
Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level registration of host name assigned within DRAC DHCP- UDP 1.0 None In/Out DHCP No assigned IP assigned IP ...
Page 31
Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level keyboard/ keyboard mouse redirection Console TCP 1.0 Non-SSL In/Out For video Yes Redirectio redirection ...
Page 32
DRAC 5 Table 35. Supported Protocols and Ports Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level SSHv2 TCP 1.30 128-bit SSL In/Out Optional Yes Secure Shel...
Page 33
Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level HTTPS TCP 1.0 128-bit SSL In/Out Web No manageme nt GUI and remote racadm CLI utility RMCP/ UDP 1.0 128-b...
Page 34
Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level manageme nt Telnet TCP 1.0 None In/Out Optional Yes Telnet CLI manageme nt SMTP TCP 1.0 None In/Out Optio...
Page 35
Port Protocols Port Type Version Maximum Direction Usage Configura Number Encryption ble Level LDAP TCP 1.0 128-bit SSL In/Out Optional No Active Directory Services (ADS) authenticat ion LDAP for TCP ...
