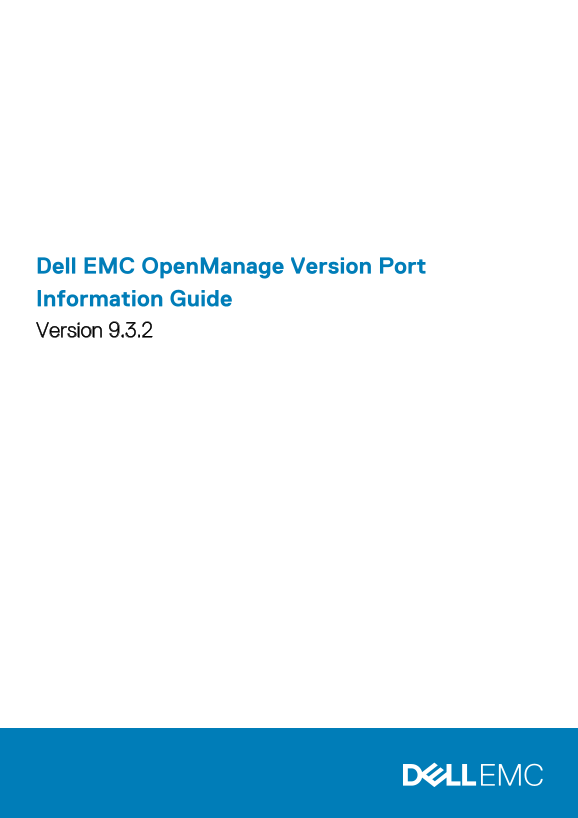

Dell EMC OpenManage Version Port Information Guide Version 9.3.2
Summary
This technical documentation provides comprehensive documentation for the Dell EMC OpenManage Server Administrator. The document covers configuration instructions. This documentation is intended for server administrators and data center operators. The manual provides detailed guidance to ensure proper operation and maintenance of the Dell EMC OpenManage Server Administrator. Users will find step-by-step instructions and technical details necessary for effective utilization of the product.
Page 1 Text Content
Dell EMC Open Manage Version Port Information Guide Version 9.3.2
Page Summary Contents For Dell EMC OpenManage Version Port Information Guide Version 9.3.2
Page 1
Dell EMC Open Manage Version Port Information Guide Version 9.3.2
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Introduction................................................................................................................................. Accessing documents from the Dell EMC support s...
Page 4
Introduction The Dell EMC Open Manage Port Information document helps system administrators and technicians to identify the ports usage in Dell EMC Open Manage systems management software, standard op...
Page 5
The Dell EMC Open Manage Management Station Software Installation Guide contains instructions to help you install Dell EMC Open Manage management station software that includes Baseboard Management Ut...
Page 6
Ports The following tables list the ports used by the Open Manage systems management software, standard operating system services and other agent applications. NOTE: Ports with the correct configurati...
Page 7
Open Manage Essentials Management Stations Table 1. Supported Protocols and Ports on Management Stations Port Protocol Port Type Maximum Direction Usage Number Encryption Level SMTP TCP None In/Out Op...
Page 8
Port Number Protocol Port Type Maximum Direction Usage Encryption Level 623* RMCP UDP None In/Out IPMI access through Proprietary TCP None In/Out Optional remote SQL server access RDP TCP 128 - bit SS...
Page 9
Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level HTTP TCP None Out Link and Launch to FN-IOA, MXL- No * — When a DHCP client connects to a DHCP server, the source ...
Page 10
Port Number Protocols Port Type Maximum Direction Destination Usage Description Encryption Level Web services are consumed by v Center Web Client and Dell Admin portal. WSMan TCP 128-bit In/Out OMIVV ...
Page 11
Port Number Protocols Port Type Maximum Direction Destination Usage Description Encryption Level i DRAC, OMSA, and CMC or Management Module are received to manage and monitor the managed nodes. User-d...
Page 12
Managed Nodes (i DRAC or CMC or Management Module) Table 6. Supported Protocols and Ports on Managed Nodes Port Number Protocols Port Type Maximum Direction Destination Usage Description Encryption Le...
Page 13
Port Number Protocols Port Type Maximum Direction Destination Usage Description Encryption Level deployment and firmware update. To access the i DRAC configurations from the OMIVV used in deployment f...
Page 14
Port Number Protocol Port Type Direction Usage Configurable solution server and client Dell Command Monitor Open Manage Client Instrumentation Table 9. Supported Protocols and Ports Port Number Protoc...
Page 15
Dell Management Console Table 11. Supported Protocols and Ports Port Protocol Port Version Maximum Directio Usage Configurable Number Type Encryption Level SSH TCP 1.x – 128-bit None SSH client Remote...
Page 16
Port Protocol Port Version Maximum Directio Usage Configurable Number Type Encryption Level PXE TCP Deployment Solution: PXE configuration to talk with PXE configuration Service. TCP Monitor Solution....
Page 17
Port Number Protocol Port Type Maximum Direction Usage Encryption Level SNMP Trap UDP None In/Out SNMP Event Reception and Trap Forwarding Postgres TCP None All Postgre SQL HTTPS TCP 256-bit AES In/Ou...
Page 18
Dell Lifecycle Controller Integration for System Center Virtualization Machine Manager Table 16. Management Station Port Protocols Port Maximum Direction Usage Configurable Number Type Encryption Leve...
Page 19
Dell EMC Open Manage Integration for Microsoft System Center for Operations Manager Table 19. Management Station Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level S...
Page 20
Port Protocols Port Maximum Direction Usage Configurable Number Type Encryption Level Symbol SDK TCP None In Power Vault MD Array No Communication HTTP/ TCP None In/Out OMSA Web Console No HTTPS HTTP ...
Page 21
Table 26. Managed Node Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level WSMan TCP 128-bit In/Out ESXi Communication No SNMP UDP None In/Out SNMP Query Management N...
Page 22
i DRAC7 and i DRAC8 Table 30. Supported Protocols and Ports — Ports i DRAC Listens for Connections Port Number Protocols Configurable SSH Yes Telnet Yes HTTP Yes SNMP Agent No HTTPS Yes RMCP/ RMCP+ Ye...
Page 23
Port Number Protocols Configurable SNMP Trap No HTTPS Yes RMCP/RMCP+ No LDAPS No Virtual Console/Virtual Media Yes LDAPS for global catalog (GC) No i DRAC for Blade Servers Table 33. Supported Protoco...
Page 24
Port Number Protocols Port Type Version Maximum Direction Usage Configura Encryption ble Level keyboard/ mouse Console TCP 1.0 None-SSL In/Out For video redirection Yes Redirection video i DRAC6 Enter...
Page 25
Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level 3670, 3671 Virtual Media TCP 1.0 SSL In/Out For Virtual No Secure Service Media redirection and transfer C...
Page 26
Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level Telnet TCP 1.0 None In/Out Optional Telnet Yes CLI management SMTP TCP 1.0 None In/Out Optional e-mail No ...
Page 27
DRAC 4 Table 38. Supported Protocols and Ports Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level SSHv2 TCP 1.30 128-bit In/Out Optional Yes Secure Shell (SS...
Page 28
Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level Proprietary TCP 1.0 None In/Out Remote No RACADM spcmp server Proprietary TCP 1.0 128bit RC4, In/Out Conso...
