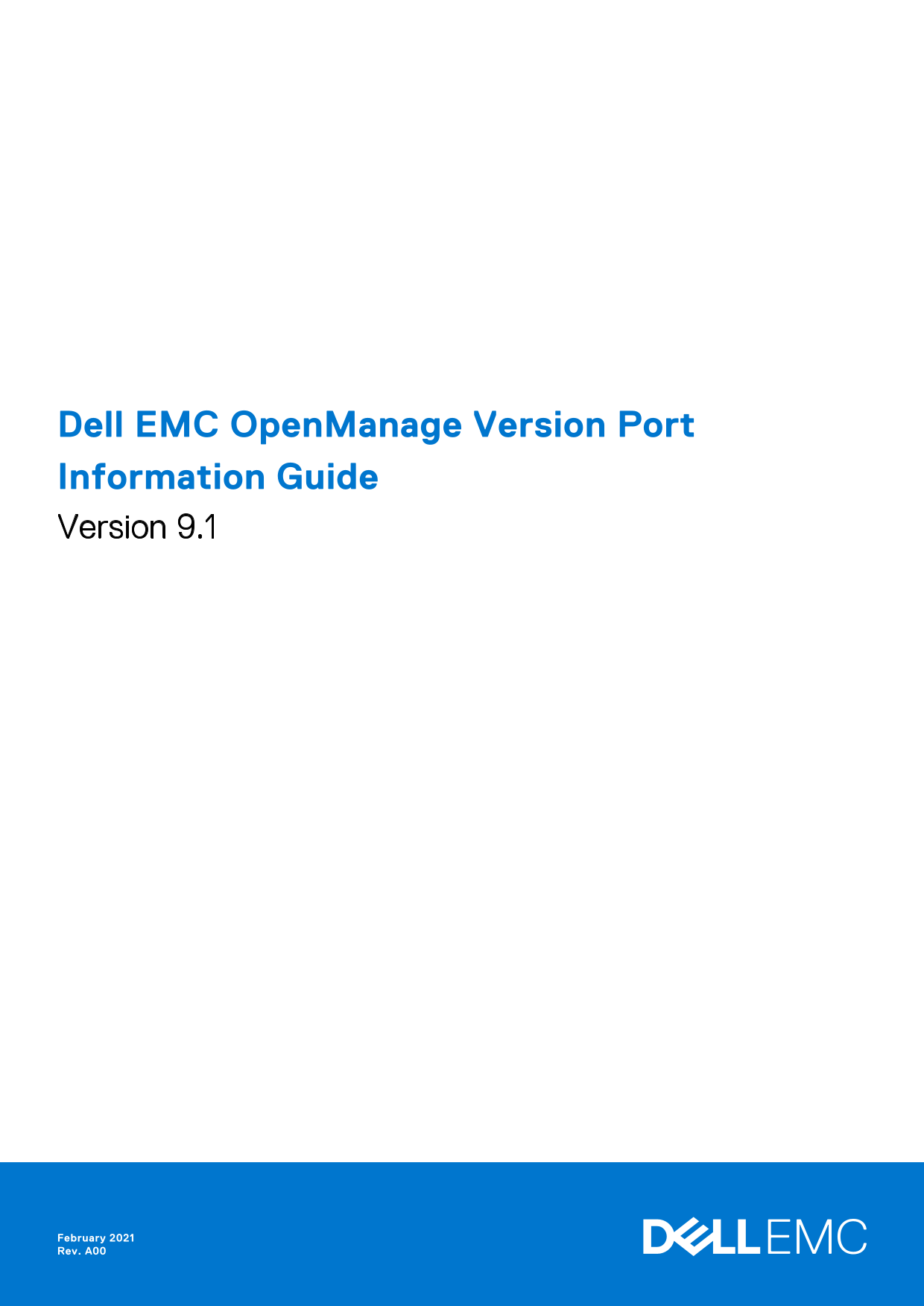

Dell EMC Open Manage Version Port Information Guide Version 9.1
February 2021 Rev. A00
Page Summary Contents For Dell EMC OpenManage Version Port Information Guide Version 9.1 Information Sheet User Manual
Page 1
Dell EMC Open Manage Version Port Information Guide Version 9.1 February 2021 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Introduction................................................................................................................. Accessing support content from the Dell EMC support si...
Page 4
Introduction The Dell EMC Open Manage Port Information document helps system administrators and technicians to identify the ports used by the Dell EMC Open Manage systems management software, standard...
Page 5
The Dell EMC Open Manage Server Administrator CIM Reference Guide documents the Common Information Model (CIM) provider, an extension of the standard management object format (MOF) file. The CIM provi...
Page 6
Ports The following tables list the ports used by the Open Manage systems management software, standard operating system services and other agent applications. NOTE: Ports with the correct configurati...
Page 7
Open Manage Essentials Management Stations Table 1. Supported Protocols and Ports on Management Stations Port Protocol Port Type Maximum Direction Usage Numbe Encryption Level SMTP TCP None In/Out Opt...
Page 8
Table 2. Supported Protocols and Ports on Managed Nodes (continued) Port Number Protocol Port Type Maximum Direction Usage Encryption Level 443* Proprietary/ TCP None In/Out i DRAC/OMSA WSMAN communic...
Page 9
Table 3. Supported Protocols and Ports (continued) Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level LDAP TCP SSL Out LDAPS, Active Directory client Yes LDAP TCP No...
Page 10
Managed Nodes Table 5. Supported Protocols and Ports on Managed Nodes Port Number Protocols Port Type Maximum Direction Usage Configurable Encryption Level RMCP UDP/TCP 128–bit Out Remote Mail No Chec...
Page 11
Table 6. Supported Protocols and Ports (continued) Port Number Protocols Port Type Direction Usage Configurable software update feature (for Windows operating systems). SNMP UDP In/Out SNMP query mana...
Page 12
Table 8. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level SNMP UDP 8.1 None Out SNMP trap No event 1024-65535 DCO...
Page 13
Table 10. Supported Protocols and Ports (continued) Port Protoco Port Versio Maximum Directio Usage Configurable Number Type Encryption Level 53, 80, TCP Symantec Console — Console using 135, 137, a r...
Page 14
Table 10. Supported Protocols and Ports (continued) Port Protoco Port Versio Maximum Directio Usage Configurable Number Type Encryption Level TCP Deployment Solutions communication used for managing t...
Page 15
Managed Node Table 12. Supported Protocols and Ports on Managed Nodes Port Number Protocol Port Maximum Direction Usage Type Encryption Level SSH TCP 256–bit AES In/Out Non-Dell chassis communication ...
Page 16
Dell Lifecycle Controller Integration for System Center Virtualization Machine Manager Table 15. Management Station Port Protocol Port Maximum Direction Usage Configurable Number Type Encryption Level...
Page 17
Dell Management Pack for System Center Operation Manager Table 18. Management Station Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level SNMP UDP None In/Out SNMP Qu...
Page 18
Table 21. Managed Node (continued) Port Protocols Port Maximum Direction Usage Configurable Number Type Encryption Level SNMP UDP None Out Hardware SNMP Events No Symbol SDK TCP None In Power Vault MD...
Page 19
Open Manage Connection for IBM Tivoli Netcool OMNIbus Table 24. Management Station Port Protocols Port Type Maximum Direction Usage Configurable Number Encryption Level SNMP UDP None In Event receptio...
Page 20
i DRAC Service Module Table 28. Supported Protocols and Ports Port Protocols Port Direction Usage Configurable Number Type WSMAN, GUI, TCP In/Out i DRAC Service Module’s feature, Yes Redfish and i DRA...
Page 21
i DRAC6 for Rack and Tower Servers Table 31. Supported Protocols and Ports Port Number Protocols Configurable SSH Yes Telnet Yes SMTP No DNS No DHCP-assigned IP address No TFTP No HTTP Yes SNMP Agent ...
Page 22
Table 32. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configura Encryption ble Level HTTPS TCP 1.0 128-bit SSL In/Out Web management Yes R...
Page 23
Table 33. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level through Trivial FTP HTTP TCP 1.0 None In/Out Redirecte...
Page 24
Digital KVM Table 35. Supported Protocols and Ports Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level Proprietary TCP 1.0 128-bit SSL In/Out Video No redire...
Page 25
Table 36. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level GUI and remote racadm CLI utility RMCP/ UDP 1.0 128-bi...
Page 26
Table 37. Supported Protocols and Ports (continued) Port Number Protocols Port Type Version Maximum Direction Usage Configurable Encryption Level DHCP UDP 1.0 None In/Out DHCP No assigned IP address T...
