Dell E2223HV Monitor Simplified Service Manual
Summary
This is the Service Manual for the Dell E2223HV LCD Monitor (February 2022). It provides technical documentation for repair and maintenance, covering RoHS compliance, lead-free soldering, electrical safety precautions, and qualified repairability guidelines. The manual includes torque specifications and assembly procedures. Target users are authorized service technicians and repair engineers performing hardware repairs on Dell LCD monitors.

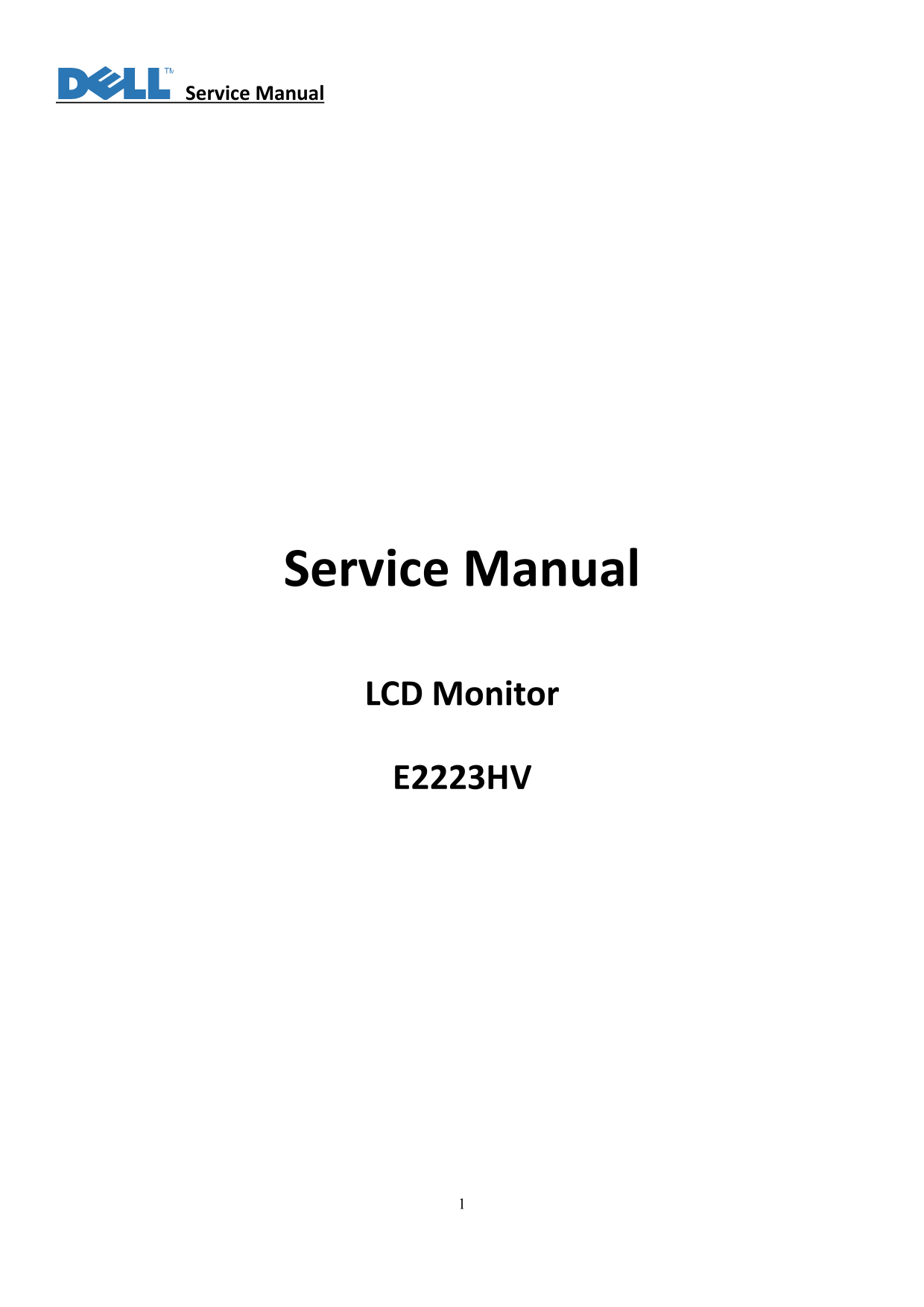

Page 1 Text Content
Service Manual
Service Manual LCD Monitor E2223HV
Page Summary Contents For Dell E2223HV Monitor Simplified Service Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 12 |
| File Size | 2.15 MB |
| Published | June 23, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I perform a monitor self-test?
Turn off the computer and monitor, disconnect all video cables, then turn on the monitor. If it works, a 'No Signal' message appears with a white power LED.
How do I run the built-in diagnostic tool?
Clean the screen, press and hold Button 4 for 4 seconds, select the menu with Button 1 or 2, and use Button 1 to cycle through color test patterns like red, green, blue, and white.
What is the torque required for rear cover screws?
For rear cover screws, use 12.0 +/- 0.5Kgf/cm with a Phillips screwdriver.
How should I disconnect and reconnect cables?
Always switch off power before unplugging or replugging cables to avoid electrical shocks.
