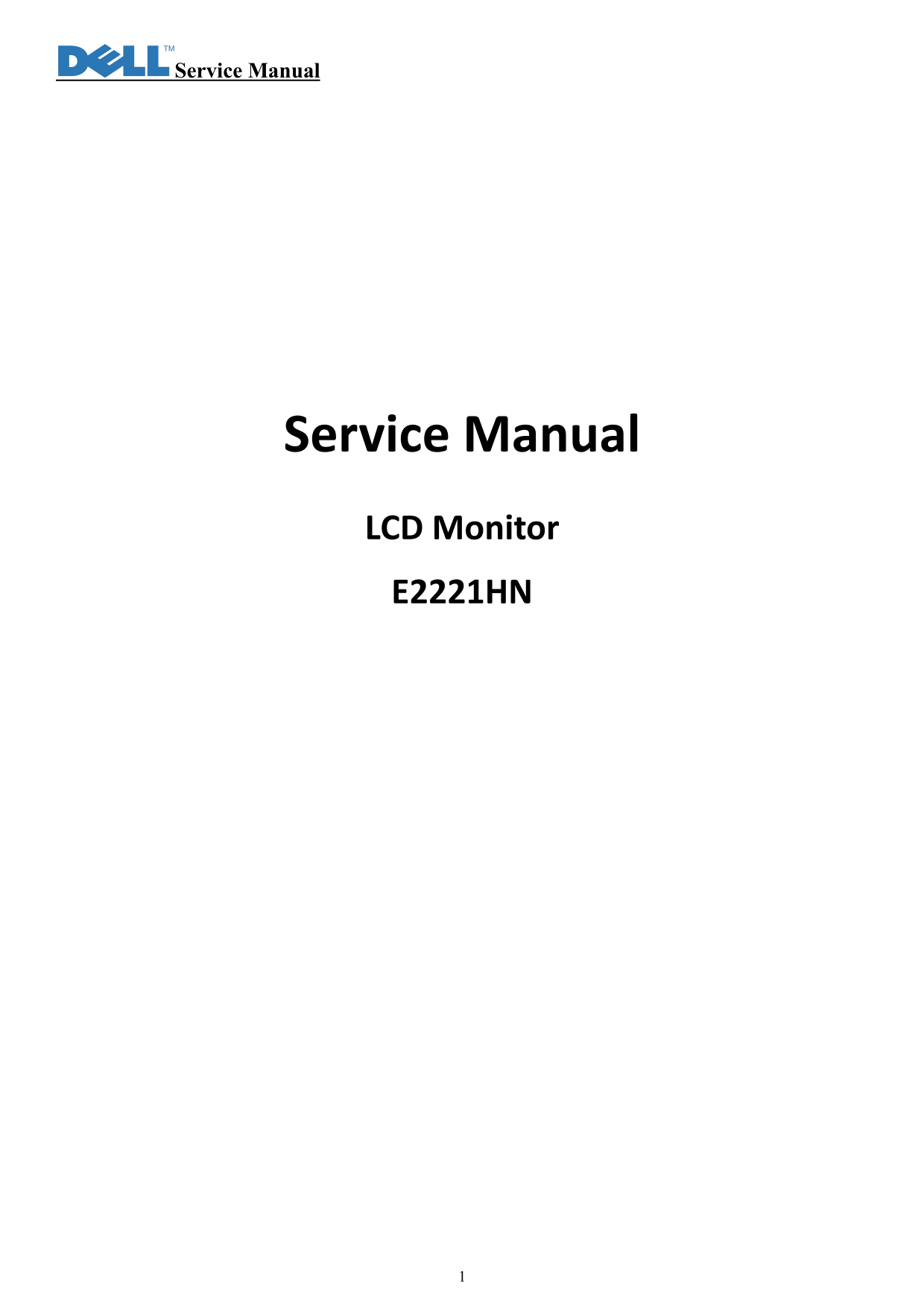

Dell E2221HN Monitor Simplified Service Manual
Summary
This service manual covers the Dell E2221HN 21.5-inch LCD monitor maintenance and repair. It includes safety notices, exploded view diagrams with parts identification numbers, wiring diagrams, cable connection procedures, required tools list, step-by-step disassembly and assembly procedures, and troubleshooting instructions. Addresses RoHS and lead-free soldering requirements. Targeted at Dell-authorized service technicians performing hardware-level E2221HN maintenance.
Manual Details
| Brand | Dell |
|---|---|
| Pages | 15 |
| File Size | 1.37 MB |
| Published | June 23, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What tools are needed for disassembly?
A Philips-head screwdriver and a hex-head screwdriver are required.
What happens if I disassemble the monitor myself?
Dell will deem the warranty void if any disassembly is performed.
Where can I buy replacement power cords?
Contact Dell via support.dell.com to purchase replacement power cords.
Which specific screws are used to attach the back cover?
The back cover is secured with four M4x10 black nylon screws.
