Dell Dimension 9200c Setup Guide Illustrations
Summary
Dell desktop computer setup guide (2006) covering self-adhesive rubber pad installation, dual monitor connection options via white DVI or blue VGA cable (not both), keyboard/mouse and network/modem connection, optional remote control sensor and Media Center setup, wireless network configuration, and system feature overview with CD/DVD/floppy drive locations.
Page 1 Text Content

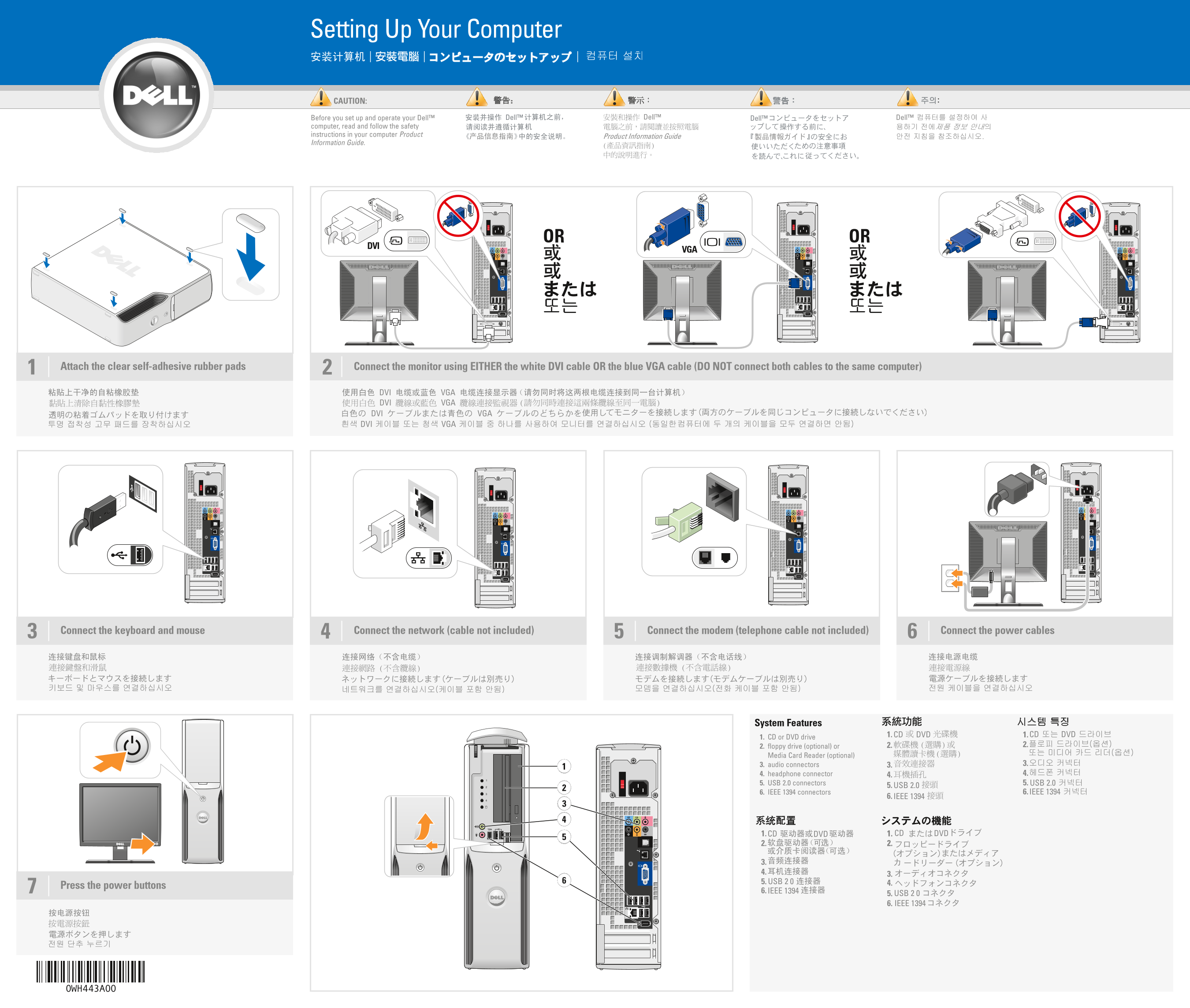

WH443ap0.qxd 11/08/2006 10:53 Page 1
Setting Up Your Computer
CAUTION: Before you set up and operate your Dell™ computer, read and follow the safety instructions in your computer Product Information Guide.
OR OR
Attach the clear self-adhesive rubber pads Connect the monitor using EITHER the white DVI cable OR the blue VGA cable (DO NOT connect both cables to the same computer)2
Connect the keyboard and mouse Connect the network (cable not included) Connect the modem (telephone cable not included) Connect the power cables
System Features
1. CD or DVD drive
2. floppy drive (optional) or 2. 2.
Media Card Reader (optional)
3. audio connectors 3. 3. 4. headphone connector 4. 4. 5. USB 2.0 connectors 5.
6. IEEE 1394 connectors 6.
Press the power buttons
6. IEEE 1394
5. 6. IEEE 1394
0WH443A00
Page Summary Contents For Dell Dimension 9200c Setup Guide Illustrations
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 3.70 MB |
| Published | July 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety instructions should I read before setting up the computer?
You must read and follow the safety instructions found in your computer Product Information Guide.
How do I connect a monitor to the Dell computer?
Use either the white DVI cable or the blue VGA cable, but do not connect both cables to the same computer.
What components are included for setting up a wired network connection?
You will need to connect the network (cable is not included) and the modem (telephone cable is not included).
Where can I find setup instructions or further support information?
Setup instructions can be found in your Owner’s Manual. For general help, visit support.dell.com.
