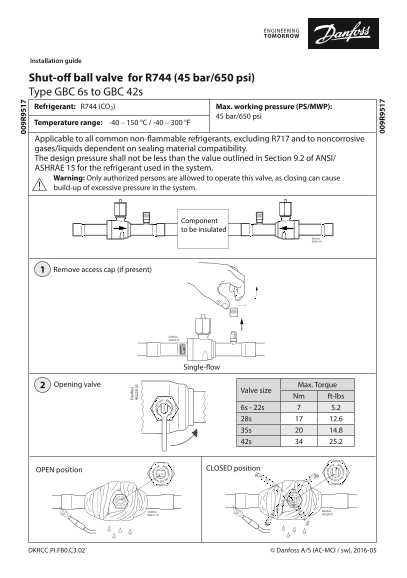

Installation guide
Shut-off ball valve for R744 (45 bar/650 psi) Type GBC 6s to GBC 42s Refrigerant: R744 (CO2) Max. working pressure (PS/MWP):
th is
45 bar/650 psi
Temperature range: -40 – 150 °C / -40 – 300 °F
an fo ss 9G 9.
Applicable to all common non-flammable refrigerants, excluding R717 and to noncorrosive gases/liquids dependent on sealing material compatibility.
th is
th is
The design pressure shall not be less than the value outlined in Section 9.2 of ANSI/ ASHRAE 15 for the refrigerant used in the system. Warning: Only authorized persons are allowed to operate this valve, as closing can cause build-up of excessive pressure in the system.
Component to be insulated
Danfoss 9G219.10
Remove access cap (if present)
th is
th is
Danfoss 9G230.10
Single-flow
Opening valve Max. Torque
Valve size
Nm ft-lbs
Attention! Do nut remov nut D
Attention! Do nut remov nut Attention! Do nut remov
nut CLOSED position
OPEN position
Attention! Do nut remov nut Attention! Do nut remov
Danfoss Danfoss 9G227.10 9G228.10
DKRCC.PI.FB0.C3.02 © Danfoss A/S (AC-MCI / sw), 2016-05
