Danfoss Temperature Sensors for BD350GH Electronic Unit (Standard) Installation Guide
Summary
This collection of high-precision NTC temperature sensors is engineered for reliable thermal monitoring within advanced electronic units and HVAC systems. The product line provides diverse options, including standardized M8 components and long body configurations ranging from 470 mm to 1500 mm, ensuring accurate fit for complex industrial setups. Designed specifically for technical personnel, system integrators, and refrigeration maintenance teams, these sensors guarantee optimal performance and compatibility across demanding control applications.
Page 1 Text Content

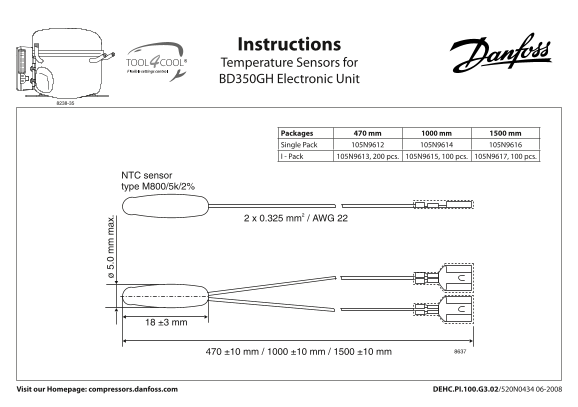

Instructions Temperature Sensors for BD350GH Electronic Unit
.0 ax
Packages 470 mm 1000 mm 1500 mm Single Pack 105N9612 105N9614 105N9616 I - Pack 105N9613, 200 pcs. 105N9615, 100 pcs. 105N9617, 100 pcs.
NTC sensor type M800/5k/2%
2 x 0.325 mm / AWG 222
18 ±3 mm
470 ±10 mm / 1000 ±10 mm / 1500 ±10 mm
Visit our Homepage: compressors.danfoss.com DEHC.PI.100.G3.02/520N0434 06-2008
Page Summary Contents For Danfoss Temperature Sensors for BD350GH Electronic Unit (Standard) Installation Guide
Manual Details
| Brand | Danfoss |
|---|---|
| Pages | 1 |
| File Size | 82.42 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What electronic unit is these temperature sensors designed for?
They are specified for the BD350GH Electronic Unit 8238-35.
What type and specifications does the NTC sensor utilize?
The sensor uses an NTC sensor type M800/5k/2%.
What different length options are available in packages?
Available lengths include single packages for 470 mm, 1000 mm, and 1500 mm.
