Danfoss BD35F Direct Current Compressor for Solar Applications 10-45V DC Datasheet
Summary
This high-efficiency DC compressor is optimized for connecting with sustainable power sources like solar arrays, utilizing R134a refrigerant in demanding vertical lift applications. The accompanying manual provides comprehensive technical documentation, covering variable speed operation details, detailed ASHRAE and EN 12900 performance curves (COP/Capacity), electrical compatibility (10-45V DC), and operational guidelines for safe installation. It is essential reading for HVAC engineers and specialized installers designing robust, power-efficient refrigeration systems requiring precise control and reliability in off-grid environments.

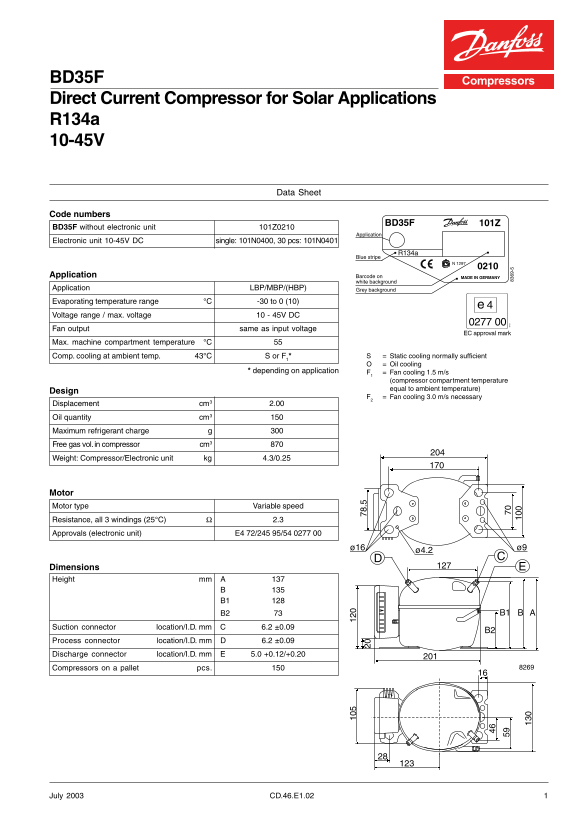

Page 1 Text Content
BD35F Direct Current Compressor for Solar Applications R134a 10-45V
Data Sheet
Code numbers
BD35F 101Z
BD35F without electronic unit 101Z0210
Application
Electronic unit 10-45V DC single: 101N0400, 30 pcs: 101N0401
Blue stripe
Application MADE IN GERMANYBarcode on
white background
Application LBP/MBP/(HBP) Grey background Evaporating temperature range °C -30 to 0 (10) Voltage range / max. voltage 10 - 45V DC
Fan output same as input voltage
EC approval mark
Max. machine compartment temperature °C
Comp. cooling at ambient temp. 43°C S or F1* Static cooling normally sufficient .5 Oil cooling
* depending on application Fan cooling 1.5 m/s
(compressor compartment temperature equal to ambient temperature)
Design
Fan cooling 3.0 m/s necessary
Displacement cm3 2.00 Oil quantity cm3 Maximum refrigerant charge Free gas vol. in compressor cm3 Weight: Compressor/Electronic unit kg 4.3/0.25
Motor Motor type Variable speed
Resistance, all 3 windings (25°C) 2.3 Approvals (electronic unit) E4 72/245 95/54 0277 00
Dimensions Height mm
Suction connector location/I.D. mm 6.2 ±0.09
Process connector location/I.D. mm 6.2 ±0.09 Discharge connector location/I.D. mm 5.0 +0.12/+0.20 Compressors on a pallet pcs.
July 2003 CD.46.E1.02
