This durable polyester nylon label material is designed for industrial wiremarking and general marking applications using both thermal transfer and dot matrix printing technologies. This technical document provides detailed specifications regarding adhesion strength, chemical resistance, temperature stability, and environmental performance. It helps professionals select the ideal, reliable labeling solution required for demanding mechanical or electrical environments that meet strict industry compliance standards.
Page 1 Text Content

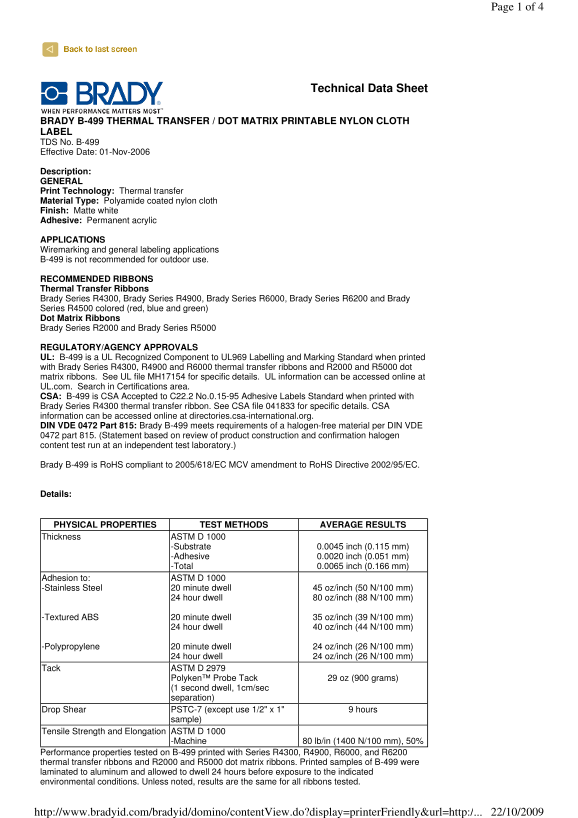

Page 1 of 4
Technical Data Sheet
BRADY B-499 THERMAL TRANSFER / DOT MATRIX PRINTABLE NYLON CLOTH LABEL TDS No. B-499 Effective Date: 01-Nov-2006
Description: GENERAL Print Technology: Thermal transfer Material Type: Polyamide coated nylon cloth Finish: Matte white Adhesive: Permanent acrylic
APPLICATIONS Wiremarking and general labeling applications B-499 is not recommended for outdoor use.
RECOMMENDED RIBBONS Thermal Transfer Ribbons Brady Series R4300, Brady Series R4900, Brady Series R6000, Brady Series R6200 and Brady Series R4500 colored (red, blue and green) Dot Matrix Ribbons Brady Series R2000 and Brady Series R5000
REGULATORY/AGENCY APPROVALS UL: B-499 is a UL Recognized Component to UL969 Labelling and Marking Standard when printed with Brady Series R4300, R4900 and R6000 thermal transfer ribbons and R2000 and R5000 dot matrix ribbons. See UL file MH17154 for specific details. UL information can be accessed online at UL.com. Search in Certifications area. CSA: B-499 is CSA Accepted to C22.2 No.0.15-95 Adhesive Labels Standard when printed with Brady Series R4300 thermal transfer ribbon. See CSA file 041833 for specific details. CSA information can be accessed online at directories.csa-international.org. DIN VDE 0472 Part 815: Brady B-499 meets requirements of a halogen-free material per DIN VDE 0472 part 815. (Statement based on review of product construction and confirmation halogen content test run at an independent test laboratory.)
Brady B-499 is Ro HS compliant to 2005/618/EC MCV amendment to Ro HS Directive 2002/95/EC.
Details:
PHYSICAL PROPERTIES TEST METHODS AVERAGE RESULTS Thickness ASTM D 1000
-Substrate 0.0045 inch (0.115 mm) -Adhesive 0.0020 inch (0.051 mm)
-Total 0.0065 inch (0.166 mm)
Adhesion to: ASTM D 1000 -Stainless Steel 20 minute dwell 45 oz/inch (50 N/100 mm)
24 hour dwell 80 oz/inch (88 N/100 mm)
-Textured ABS 20 minute dwell 35 oz/inch (39 N/100 mm)
24 hour dwell 40 oz/inch (44 N/100 mm)
-Polypropylene 20 minute dwell 24 oz/inch (26 N/100 mm)
24 hour dwell 24 oz/inch (26 N/100 mm)
Tack ASTM D 2979
Polyken™ Probe Tack 29 oz (900 grams) (1 second dwell, 1cm/sec separation)
Drop Shear PSTC-7 (except use 1/2" x 1" 9 hours
sample)
Tensile Strength and Elongation ASTM D 1000
-Machine 80 lb/in (1400 N/100 mm), 50%
Performance properties tested on B-499 printed with Series R4300, R4900, R6000, and R6200 thermal transfer ribbons and R2000 and R5000 dot matrix ribbons. Printed samples of B-499 were laminated to aluminum and allowed to dwell 24 hours before exposure to the indicated environmental conditions. Unless noted, results are the same for all ribbons tested.
22/10/2009http://www.bradyid.com/bradyid/domino/content View.do?display=printer Friendly&url=http:/...
Page Summary Contents For BRADY B-499 Handbook
Manual Details
| Brand | Brady |
|---|---|
| Pages | 4 |
| File Size | 62.51 KB |
| Published | May 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is B-499 suitable for outdoor use?
No, the product manual states that B-499 is not recommended for long-term or general outdoor use.
What are the compatible ribbon series for B-499?
It works with Thermal Transfer Ribbons (R4300, R4900, R6000, R6200, R4500) and Dot Matrix Ribbons (R2000, R5000).
Can I use B-499 on stainless steel?
Yes. For Stainless Steel, the adhesion in a 20 minute dwell is 45 oz/inch, and 24 hours is 80 oz/inch.
Does B-499 meet modern environmental standards?
It is RoHS compliant to the 2005/618/EC directive and meets DIN VDE 0472 Part 815 requirements for a halogen-free material.
