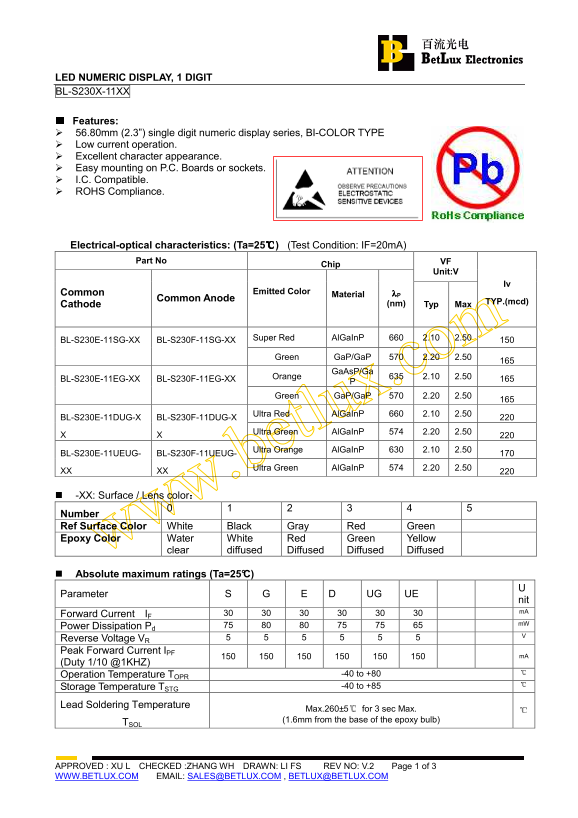

LED NUMERIC DISPLAY, 1 DIGIT BL-S230X-11XX
Features: 56.80mm (2.3”) single digit numeric display series, BI-COLOR TYPE Low current operation. Excellent character appearance. Easy mounting on P.C. Boards or sockets. I.C. Compatible. ROHS Compliance.
Electrical-optical characteristics: (Ta=25) (Test Condition: IF=20m A)
Part No Chip VF
Unit:V
Common Emitted Color Material λP
(nm) Typ Max TYP.(mcd)
Cathode Common Anode
Super Red Al Ga In P 660 2.10 2.50 150 BL-S230E-11SG-XX BL-S230F-11SG-XX
Green Ga P/Ga P 570 2.20 2.50 165
Orange Ga As P/Ga 635 2.10 2.50 165 BL-S230E-11EG-XX BL-S230F-11EG-XX
Green Ga P/Ga P 570 2.20 2.50 165
Ultra Red Al Ga In P 660 2.10 2.50 220 BL-S230E-11DUG-X
BL-S230F-11DUG-X
X Ultra Green Al Ga In P 574 2.20 2.50 220
Ultra Orange Al Ga In P 630 2.10 2.50 170 BL-S230E-11UEUG-
BL-S230F-11UEUG-
XX XX Ultra Green Al Ga In P 574 2.20 2.50 220
-XX: Surface / Lens color Number 0 1 2 3 4 5 Ref Surface Color White Black Gray Red Green Epoxy Color Water White Red Green Yellow
www.betlux.com clear diffused Diffused Diffused Diffused
Absolute maximum ratings (Ta=25°C)
Parameter S G E D UG UE U
Forward Current IF 30 30 30 30 30 30 m A Power Dissipation Pd 75 80 80 75 75 65 m W Reverse Voltage VR 5 5 5 5 5 5 V Peak Forward Current IPF
(Duty 1/10 @1KHZ) Operation Temperature TOPR -40 to +80 Storage Temperature TSTG -40 to +85 Lead Soldering Temperature
Max.260±5 for 3 sec Max. (1.6mm from the base of the epoxy bulb)
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS REV NO: V.2 Page 1 of 3 WWW.BETLUX.COM EMAIL: [email protected] , [email protected]
