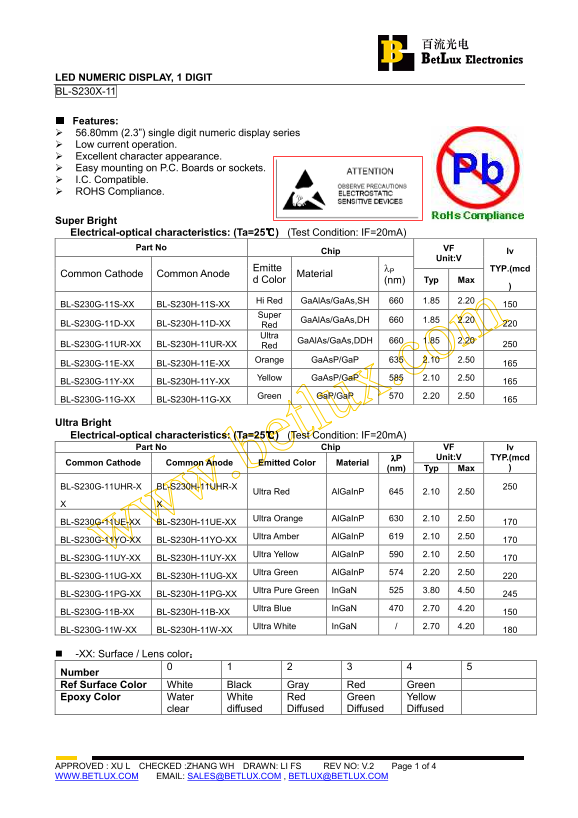

LED NUMERIC DISPLAY, 1 DIGIT BL-S230X-11
Features: 56.80mm (2.3”) single digit numeric display series Low current operation. Excellent character appearance. Easy mounting on P.C. Boards or sockets. I.C. Compatible. ROHS Compliance.
Super Bright Electrical-optical characteristics: (Ta=25 (Test Condition: IF=20m A)
Part No Chip VF
Unit:V
TYP.(mcd
Common Cathode Common Anode Emitte
d Color Material λP (nm) Typ Max
BL-S230G-11S-XX BL-S230H-11S-XX Hi Red Ga Al As/Ga As,SH 660 1.85 2.20 150
Super
BL-S230G-11D-XX BL-S230H-11D-XX Red Ga Al As/Ga As,DH 660 1.85 2.20 220
Ultra
BL-S230G-11UR-XX BL-S230H-11UR-XX Red Ga Al As/Ga As,DDH 660 1.85 2.20 250
BL-S230G-11E-XX BL-S230H-11E-XX Orange Ga As P/Ga P 635 2.10 2.50 165
BL-S230G-11Y-XX BL-S230H-11Y-XX Yellow Ga As P/Ga P 585 2.10 2.50 165
BL-S230G-11G-XX BL-S230H-11G-XX Green Ga P/Ga P 570 2.20 2.50 165
Ultra Bright Electrical-optical characteristics: (Ta=25) (Test Condition: IF=20m A)
Part No Chip VF Iv
Unit:V TYP.(mcd
Common Cathode Common Anode Emitted Color Material λP
(nm) Typ Max
BL-S230G-11UHR-X BL-S230H-11UHR-X
Ultra Red Al Ga In P 645 2.10 2.50 250
BL-S230G-11UE-XX BL-S230H-11UE-XX Ultra Orange Al Ga In P 630 2.10 2.50 170
BL-S230G-11YO-XX BL-S230H-11YO-XX Ultra Amber Al Ga In P 619 2.10 2.50 170
www.betlux.com BL-S230G-11UY-XX BL-S230H-11UY-XX Ultra Yellow Al Ga In P 590 2.10 2.50 170 BL-S230G-11UG-XX BL-S230H-11UG-XX Ultra Green Al Ga In P 574 2.20 2.50 220 BL-S230G-11PG-XX BL-S230H-11PG-XX Ultra Pure Green In Ga N 525 3.80 4.50 245 BL-S230G-11B-XX BL-S230H-11B-XX Ultra Blue In Ga N 470 2.70 4.20 150 BL-S230G-11W-XX BL-S230H-11W-XX Ultra White In Ga N / 2.70 4.20 180 -XX: Surface / Lens color Number 0 1 2 3 4 5 Ref Surface Color White Black Gray Red Green Epoxy Color Water White Red Green Yellow
clear diffused Diffused Diffused Diffused
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS REV NO: V.2 Page 1 of 4 WWW.BETLUX.COM EMAIL: [email protected] , [email protected]
