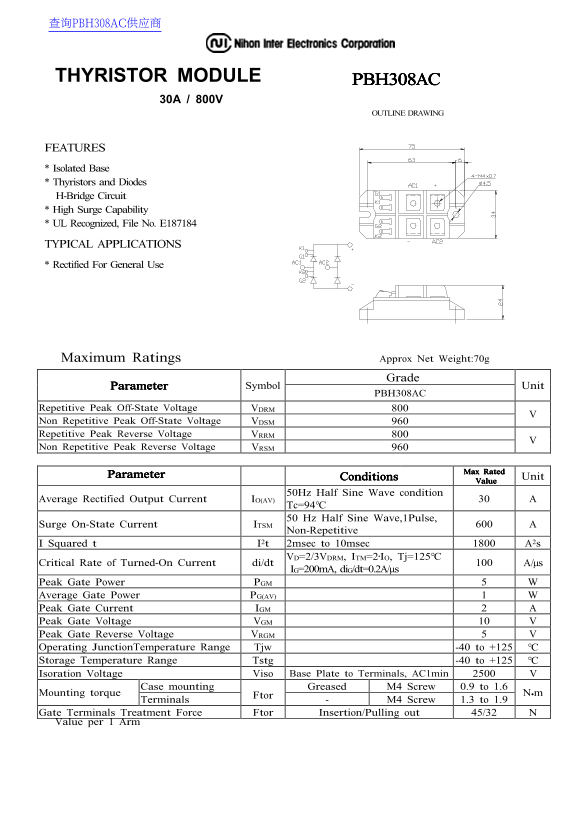

THYRISTOR MODULE PBH308AC
OUTLINE DRAWING
FEATURES * Isolated Base * Thyristors and Diodes H-Bridge Circuit * High Surge Capability * UL Recognized, File No. E187184
TYPICAL APPLICATIONS * Rectified For General Use
Maximum Ratings Approx Net Weight:70g
Grade Parameter Symbol
PBH308AC
Repetitive Peak Off-State Voltage VDRM 800 Non Repetitive Peak Off-State Voltage VDSM 960 V Repetitive Peak Reverse Voltage VRRM 800 Non Repetitive Peak Reverse Voltage VRSM 960 V
Parameter Conditions Max Rated
Value Unit
Average Rectified Output Current IO(AV) 50Hz Half Sine Wave condition
Tc=94°C 30 A
Surge On-State Current ITSM 50 Hz Half Sine Wave,1Pulse,
Non-Repetitive 600 A
I Squared t I2t 2msec to 10msec 1800 A2s Critical Rate of Turned-On Current di/dt VD=2/3VDRM, ITM=2•IO, Tj=125°C
IG=200m A, di G/dt=0.2A/µs 100 A/µs
Peak Gate Power PGM 5 W Average Gate Power PG(AV) 1 W Peak Gate Current IGM 2 A Peak Gate Voltage VGM 10 V Peak Gate Reverse Voltage VRGM 5 V Operating Junction Temperature Range Tjw -40 to +125 °C Storage Temperature Range Tstg -40 to +125 °C Isoration Voltage Viso Base Plate to Terminals, AC1min 2500 V
Case mounting Greased M4 Screw 0.9 to 1.6Mounting torque Terminals Ftor - M4 Screw 1.3 to 1.9
Gate Terminals Treatment Force Ftor Insertion/Pulling out 45/32 N Value per 1 Arm
