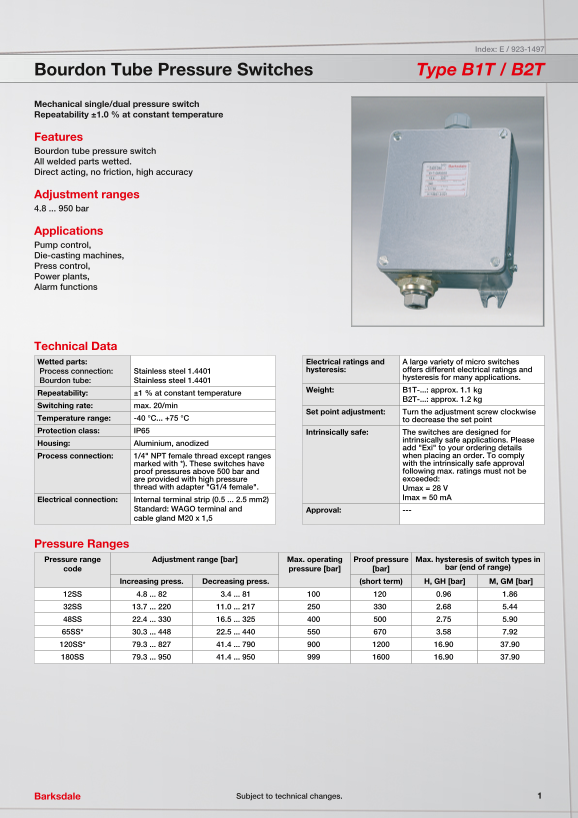

Page 1 Text Content
Index: E / 923-1497
Type B1T / B2TBourdon Tube Pressure Switches
Mechanical single/dual pressure switch
Repeatability ±1.0 % at constant temperature
Features
Bourdon tube pressure switch
All welded parts wetted.
Direct acting, no friction, high accuracy
Adjustment ranges
4.8 ... 950 bar
Applications
Pump control,
Die-casting machines,
Press control,
Power plants,
Alarm functions
Technical Data
Wetted parts: Electrical ratings and A large variety of micro switches
Process connection: Stainless steel 1.4401 hysteresis: offers different electrical ratings and
hysteresis for many applications.
Bourdon tube: Stainless steel 1.4401
Weight: B1T-...: approx. 1.1 kg
Repeatability: ±1 % at constant temperature
B2T-...: approx. 1.2 kg
Switching rate: max. 20/min
Set point adjustment: Turn the adjustment screw clockwise
Temperature range: -40 °C... +75 °C to decrease the set point
Protection class: IP65 Intrinsically safe: The switches are designed for
intrinsically safe applications. Please
Housing: Aluminium, anodized
add "Exi" to your ordering details
Process connection: 1/4" NPT female thread except ranges when placing an order. To comply
marked with *). These switches have with the intrinsically safe approval
proof pressures above 500 bar and following max. ratings must not be
are provided with high pressure exceeded:
thread with adapter "G1/4 female". Umax = 28 V
Imax = 50 m A
Electrical connection: Internal terminal strip (0.5 ... 2.5 mm2)
Standard: WAGO terminal and Approval:
cable gland M20 x 1,5
Pressure Ranges
Pressure range Adjustment range [bar] Max. operating Proof pressure Max. hysteresis of switch types in
code pressure [bar] [bar] bar (end of range)
Increasing press. Decreasing press. (short term) H, GH [bar] M, GM [bar]
12SS 4.8 ... 82 3.4 ... 81 100. 120. 0.96. 1.86.
32SS 13.7 ... 220 11.0 ... 217 250. 330. 2.68. 5.44.
48SS 22.4 ... 330 16.5 ... 325 400. 500. 2.75. 5.90.
65SS* 30.3 ... 448 22.5 ... 440 550. 670. 3.58. 7.92.
120SS* 79.3 ... 827 41.4 ... 790 900. 16.90. 37.90.
180SS 79.3 ... 950 41.4 ... 950 999. 16.90. 37.90.
Subject to technical changes.Barksdale 1
