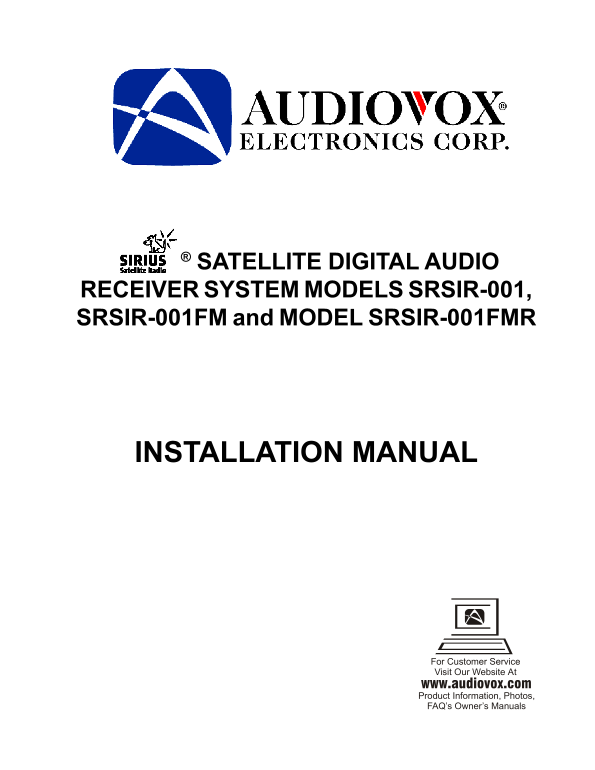

AUDIOVOX SRSIR-001(FM/FMR) Installation Manual/Instructions - Page 1

›

Page 1 Text Content

® SATELLITE DIGITAL AUDIO

RECEIVER SYSTEM MODELS SRSIR-001, SRSIR-001FM and MODEL SRSIR-001FMR

INSTALLATION MANUAL

For Customer Service Visit Our Website At WWW.audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals

Page Summary Contents For AUDIOVOX SRSIR-001(FM/FMR) Installation Manual/Instructions

Page 1 ® SATELLITE DIGITAL AUDIO RECEIVER SYSTEM MODELS SRSIR-001, SRSIR-001FM and MODEL SRSIR-001FMR INSTALLATION MANUAL For Customer Service Visit Our Website At WWW.audiovox.com Product Information, Photo...

Page 2 INTRODUCTION The Audiovox Electronics SIRIUS® Satellite Digital Audio Control And Receiver System (Model SRSIR-001 and SRSIR-001FM) was developed to allow the user to listen to a huge selection of pro...

Page 3 INSTALLATION and WIRING PRECAUTIONS 1. To prevent a short-circuit, Be sure to turn off the ignition and remove the negative(-) battery cable, prior to installation. Connect power wires last. NOTE: If ...

Page 4 PACKING LIST SRSIR-001 / SRSIR-001FM / SRSIR-001FMR (NOTE: Components are not drawn to scale.) MAIN SYSTEM COMPONENTS RADIO RECEIVER RADIO RECEIVER UNIT SATELLITE SYSTEM UNIT (RRU) SRSIR-001 (RRU) SRS...

Page 5 SRSIR-001FM AND SRSIR-001FMR TE : “ A” Sa te llit ad io nt en na (S ol IM PO TA - S om ve hi cl es se pe ci al ua l a nt en na “D ive rs ity " s ys te RF MODULATED SYSTEM INSTALLATION se pa ra te...

Page 6 IO FT02

Page 7 TYPICAL FM MODULATED INSTALLATION for SRSIR-001FM SYSTEM COMPONENT LAYOUT

Page 8 SYSTEM INSTALLATION RADIO RECEIVER UNIT (RRU) PROCEDURE for HORIZONTAL INSTALLATION of the RRU 1. Attach the mounting brackets to each side of the RRU, using the 4 Phillips Round Head Screws (4mm x 8m...

Page 9 PROCEDURE for VERTICAL INSTALLATION of the RRU 1. Attach a mounting bracket to each side of the RRU, using the 4 Phillips Round Head Screws (4mm x 8mm). Phillips Head Screws (4mm x 8mm) used in 4 plac...

Page 10 PROCEDURE for the MOUNTING of the RRU UNDER THE REAR DECK 1. Attach the mounting brackets to each side of the RRU, using the 4 Phillips Round Head Screws (4mm x 8mm). Bracket Phillips Head Screws used...

Page 11 INSTALLING THE SATELLITE SYSTEM CONTROL UNIT (SCU) PROCEDURE for a TYPICAL INSTALLATION of the SCU USING HOOK & LOOP ADHESIVE TAPE (SUPPLIED) 1. Determine where the SCU is to be located (flat surf...

Page 12 PROCEDURE FOR A TYPICAL BRACKET INSTALLATION OF THE SCU (Bracket not supplied) Audiovox suggests this type of installation over the Hook & Loop type of installation though the Hook & Loop inst...
