This comprehensive manual provides detailed electrical and mechanical specifications for a high-precision Quartz Crystal Unit in an SMD package. Covering key parameters such as 6.000 MHz central frequency, load capacitance, temperature tolerances, and extended operating ranges (-40 to +85°C), this component ensures reliable timing performance. It is essential documentation for electronics engineers and manufacturers selecting robust, high-stability crystal components for embedded systems design.

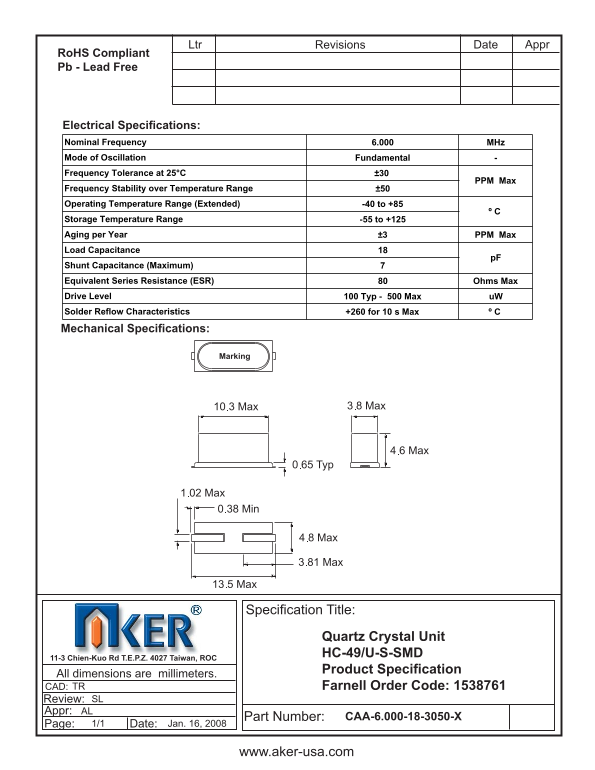

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 6.000 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±50 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit HC-49/U-S-SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters. CAD: Farnell Order Code: 1538761TR Review: SL Appr: AL
Part Number: CAA-6.000-18-3050-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For AKER - aker-usa.com 11-3 Chien-Kuo Road T.E.P.Z. 4027 Taiwan, ROC CAA-6.000-18-3050-X Manual, Specifications, User Guide
Manual Details
| Brand | CAA |
|---|---|
| Pages | 1 |
| File Size | 53.04 KB |
| Published | May 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal operating frequency of this crystal unit?
The nominal frequency is 6.000 MHz.
What are the safe temperature ranges for operation and storage?
Its extended operating range is -40 to +85 °C, and the storage range is -55 to +125 °C.
Does this component comply with environmental standards regarding lead usage?
Yes, it is both RoHS Compliant and Lead Free (Pb-Free).
What are the recommended parameters for soldering this unit?
Solder reflow must occur at a maximum of +260°C temperature for 10 seconds.
