Enhance your embedded systems with this RoHS-compliant, high-precision 10 MHz SMD Quartz Crystal Unit. This technical guide provides comprehensive electrical and mechanical specifications, covering frequency tolerances, stable operation across a wide range (-40 to +85°C), and optimal soldering parameters. Designed for hardware engineers and electronics designers requiring reliable, stable frequency components for critical RF circuitry.

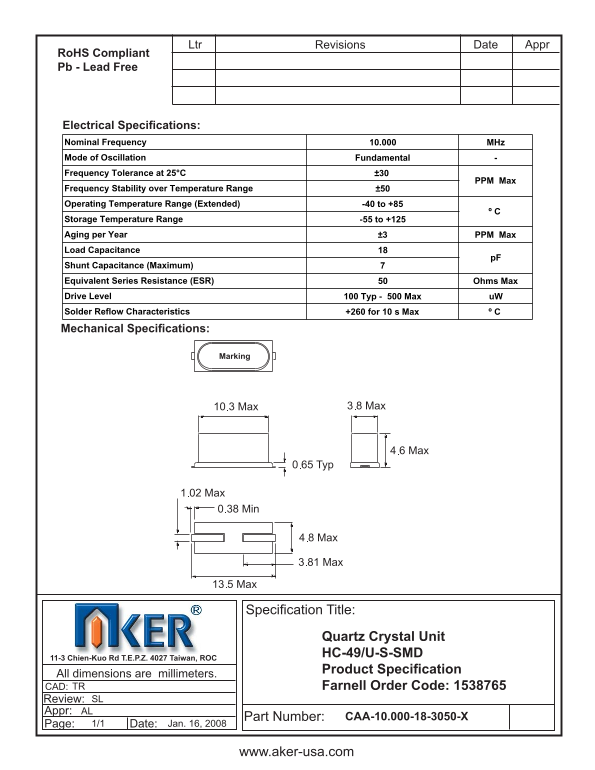

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 10.000 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±50 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit HC-49/U-S-SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters. CAD: Farnell Order Code: 1538765TR Review: SL Appr: AL
Part Number: CAA-10.000-18-3050-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For AKER - aker-usa.com 11-3 Chien-Kuo Road T.E.P.Z. 4027 Taiwan, ROC CAA-10.000-18-3050-X Manual, User Guide
Manual Details
| Brand | CAA |
|---|---|
| Pages | 1 |
| File Size | 53.05 KB |
| Published | May 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the unit's nominal operating frequency?
The nameplate specifies a nominal frequency of 10.000 MHz.
What temperature range must I use this crystal in?
The extended operating temperature range is from -40 to +85 °C.
What are the guidelines for soldering this unit?
It requires solder reflow characteristics of +260 for a maximum time of 10 seconds.
What is the designated storage temperature range?
The product can be safely stored between -55 to +125 °C.
