This comprehensive manual details the specifications for a high-precision, RoHS compliant 16 MHz Quartz Crystal Unit. Ideal for electronics designers and engineers building embedded systems that require reliable and stable timing circuits, this component offers robust electrical performance across extended temperature ranges (-40 to +85°C). The documentation provides critical data on frequency tolerance, mechanical dimensions (through-hole mounting), load capacitance, and ensures compatibility for seamless integration into your next circuit board design.

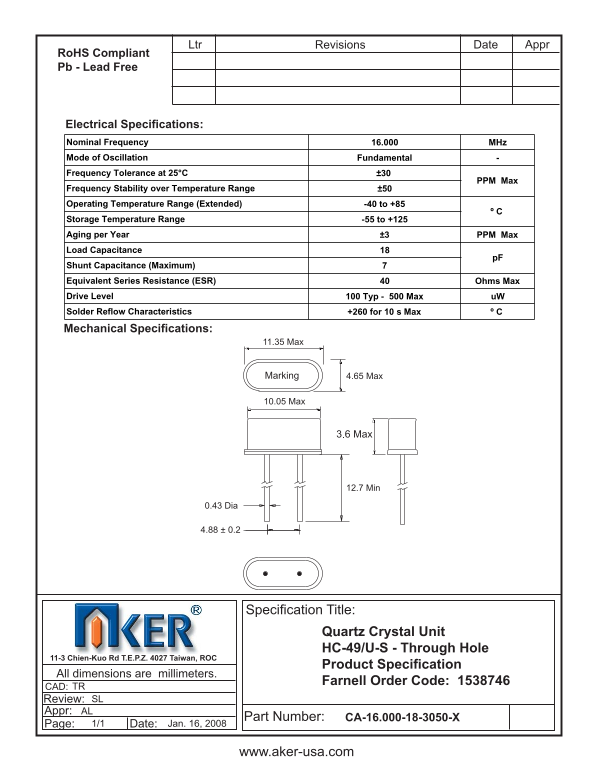

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 16.000 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±50 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit HC-49/U-S - Through Hole
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538746TR
Review: SL
Appr: AL
Part Number: CA-16.000-18-3050-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
