AKER - aker-usa.com 11-3 Chien-Kuo Road T.E.P.Z. 4027 Taiwan, ROC C7S-24.576-12-3030-X Quartz Crystal Manual
Summary
Enhance your electronic designs with this high-precision Quartz Crystal Unit, engineered to provide extremely stable and accurate oscillation signals for demanding timing applications. This manual offers complete professional specifications, detailing electrical performance metrics—such as frequency tolerance, load capacitance, and extended temperature ranges—necessary for reliable integration. It is the essential resource for electronics engineers and hardware developers building critical, time-sensitive embedded systems and communication equipment.

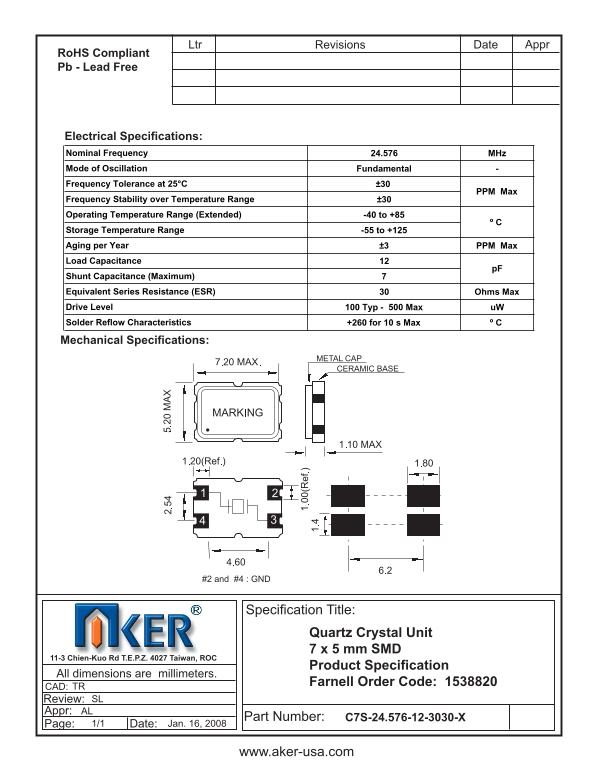

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 24.576 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±30 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit 7 x 5 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538820TR
Review: SL
Appr: AL
Part Number: C7S-24.576-12-3030-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For AKER - aker-usa.com 11-3 Chien-Kuo Road T.E.P.Z. 4027 Taiwan, ROC C7S-24.576-12-3030-X Quartz Crystal Manual
Manual Details
| Brand | Crystal |
|---|---|
| Pages | 1 |
| File Size | 56.63 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal operating frequency of this crystal unit?
The nominal frequency is 24.576 MHz.
What is the extended operating temperature range for use?
It can operate in an extended temperature range from -40 to +85 degrees C.
How does the device handle thermal stress during soldering?
It requires solding reflow characteristics at +260°C for 10 seconds.
What are the maximum capacitance and resistance limits?
The shunt capacitance is a maximum of 7 pF, and the ESR is 30 Ohms.
