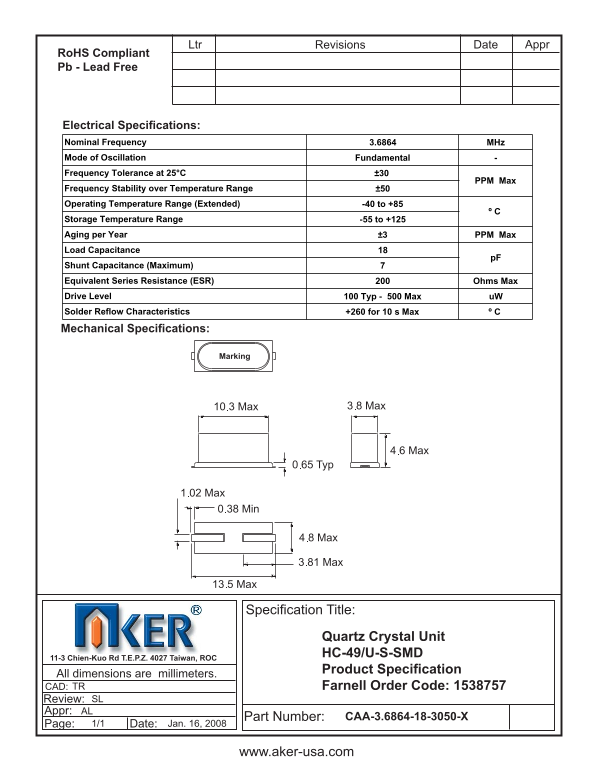

Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 3.6864 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±50 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit HC-49/U-S-SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters. CAD: Farnell Order Code: 1538757TR Review: SL Appr: AL
Part Number: CAA-3.6864-18-3050-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
