ABB Data Sheet - LLT100 Laser Level Transmitter (Short Form)
Summary
The ABB LLT100 is a robust, non-contact laser level transmitter engineered for accurate, continuous measurement of solids and liquids in extreme industrial settings. This manual details the full product range, including base, high-pressure, and hygienic models, outlining specifications from long-range capabilities up to 100 meters (328 ft). It is essential equipment for process automation in challenging environments such as oil & gas, mining, chemical plants, and food & beverage facilities that require reliable, explosion-proof instrumentation.

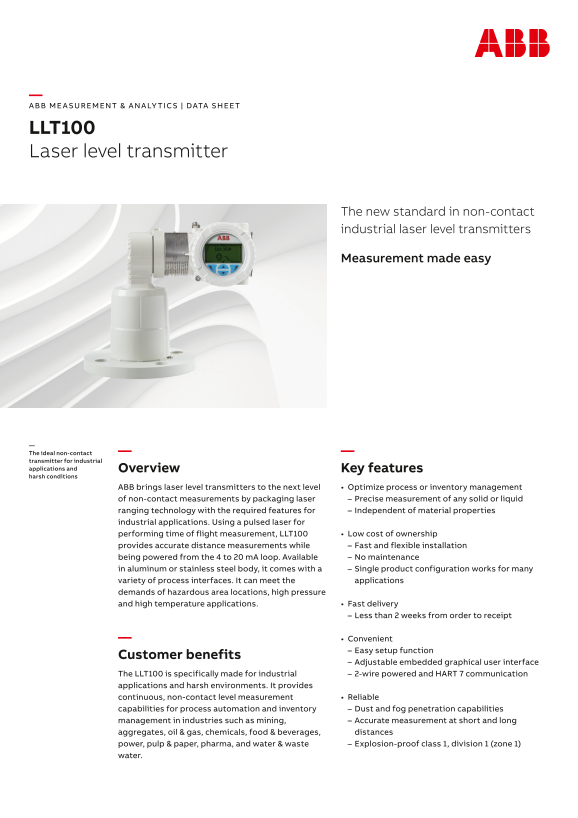

Page 1 Text Content
B M SU EM ENT & A LY TI S | DATA S EE
LLT100 Laser level transmitter
The new standard in non-contact industrial laser level transmitters
Measurement made easy
The ideal non-contact transmitter for industrial applications and Overview Key features harsh conditions
ABB brings laser level transmitters to the next level • Optimize process or inventory management of non-contact measurements by packaging laser Precise measurement of any solid or liquid ranging technology with the required features for Independent of material properties industrial applications. Using a pulsed laser for performing time of flight measurement, LLT100 • Low cost of ownership provides accurate distance measurements while Fast and flexible installation being powered from the 4 to 20 m A loop. Available No maintenance in aluminum or stainless steel body, it comes with a Single product configuration works for many variety of process interfaces. It can meet the applications demands of hazardous area locations, high pressure and high temperature applications. • Fast delivery
Less than 2 weeks from order to receipt
• Convenient Easy setup function
Customer benefits
Adjustable embedded graphical user interface
The LLT100 is specifically made for industrial 2-wire powered and HART 7 communication applications and harsh environments. It provides continuous, non-contact level measurement • Reliable capabilities for process automation and inventory Dust and fog penetration capabilities management in industries such as mining, Accurate measurement at short and long aggregates, oil & gas, chemicals, food & beverages, distances power, pulp & paper, pharma, and water & waste Explosion-proof class 1, division 1 (zone 1) water.
Page Summary Contents For ABB Data Sheet - LLT100 Laser Level Transmitter (Short Form)
Manual Details
| Brand | Laser |
|---|---|
| Pages | 4 |
| File Size | 1023.35 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What specialized interface is available for food/beverage use?
The hygienic model is fitted with a 4 in. triclover clamp interface suitable for pharmaceutical or fluid processing applications.
