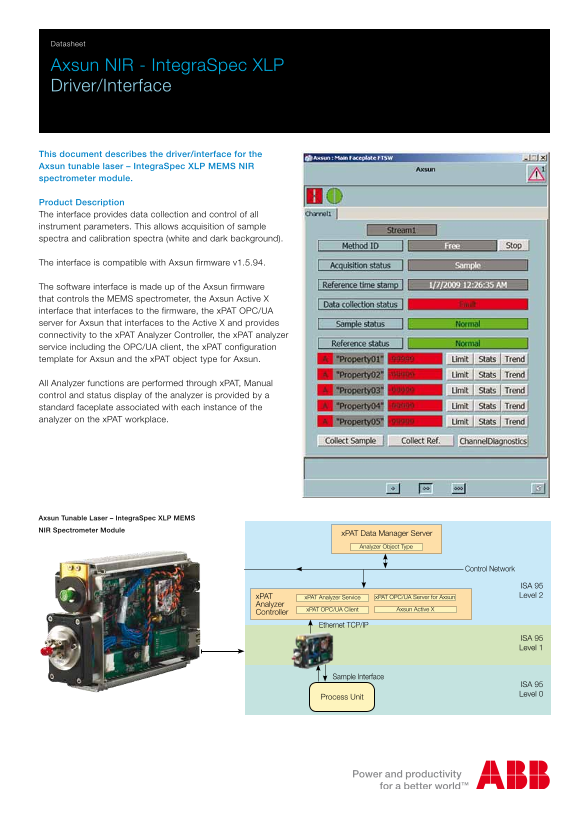

Axsun NIR - Integra Spec XLP Driver/Interface
This document describes the driver/interface for the Axsun tunable laser – Integra Spec XLP MEMS NIR spectrometer module.
Product Description The interface provides data collection and control of all instrument parameters. This allows acquisition of sample spectra and calibration spectra (white and dark background).
The interface is compatible with Axsun firmware v1.5.94.
The software interface is made up of the Axsun firmware that controls the MEMS spectrometer, the Axsun Active X interface that interfaces to the firmware, the x PAT OPC/UA server for Axsun that interfaces to the Active X and provides connectivity to the x PAT Analyzer Controller, the x PAT analyzer service including the OPC/UA client, the x PAT configuration template for Axsun and the x PAT object type for Axsun.
All Analyzer functions are performed through x PAT, Manual control and status display of the analyzer is provided by a standard faceplate associated with each instance of the analyzer on the x PAT workplace.
Axsun Tunable Laser – Integra Spec XLP MEMS NIR Spectrometer Module
x PAT Data Manager Server Analyzer Object Type
Control Network
ISA 95 x PAT x PAT Analyzer Service x PAT OPC/UA Server for Axsun Level 2
Analyzer
x PAT OPC/UA Client Axsun Active X
Controller
Ethernet TCP/IP
ISA 95 Level 1
Sample Interface
ISA 95 Level 0
Process Unit
