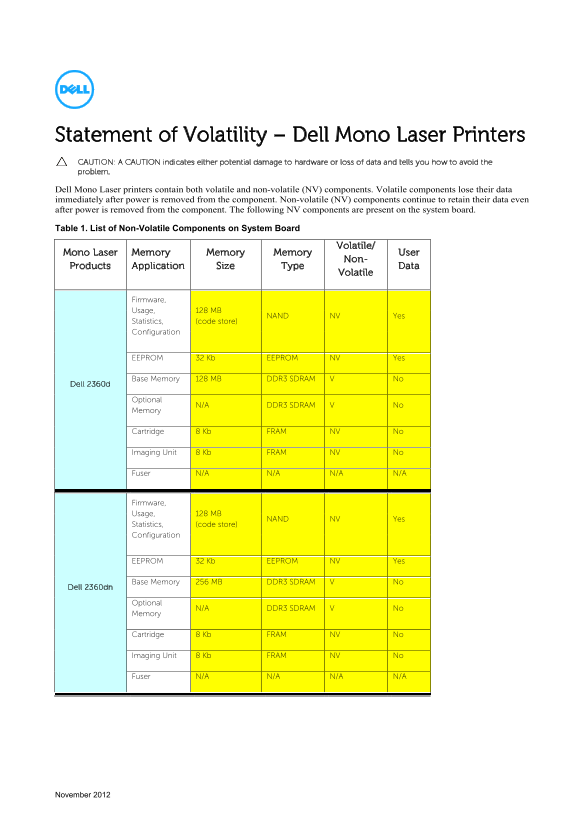

Statement of Volatility – Dell Mono Laser Printers CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. Dell Mono Laser printers contain both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the system board. Table 1. List of Non-Volatile Components on System Board
Volatile/
Mono Laser Memory Memory Memory User
Products Application Size Type Data
Volatile
Firmware, Usage, 128 MB
NAND NV Yes
Statistics, (code store) Configuration
EEPROM 32 Kb EEPROM NV Yes
Base Memory 128 MB DDR3 SDRAM V No
Dell 2360d
Optional
N/A DDR3 SDRAM V No
Memory
Cartridge 8 Kb FRAM NV No
Imaging Unit 8 Kb FRAM NV No
Fuser N/A N/A N/A N/A
Firmware, Usage, 128 MB
NAND NV Yes
Statistics, (code store) Configuration
EEPROM 32 Kb EEPROM NV Yes
Base Memory 256 MB DDR3 SDRAM V No
Dell 2360dn
Optional
N/A DDR3 SDRAM V No
Memory
Cartridge 8 Kb FRAM NV No
Imaging Unit 8 Kb FRAM NV No
Fuser N/A N/A N/A N/A
November 2012
