Dell 3130cn Color Laser Printer Statement of Volatility
Summary
This critical specification guide details the complex memory architecture of the Dell 3130cn Color Laser Printer. It clearly defines volatile and non-volatile data storage components found on the system board, outlining which settings and user information are retained versus those that can be lost during power cycles. This technical reference is essential for IT professionals, service technicians, and advanced users who need to safely troubleshoot or perform deep hardware maintenance while minimizing operational risk and preventing critical data loss.
Page 1 Text Content

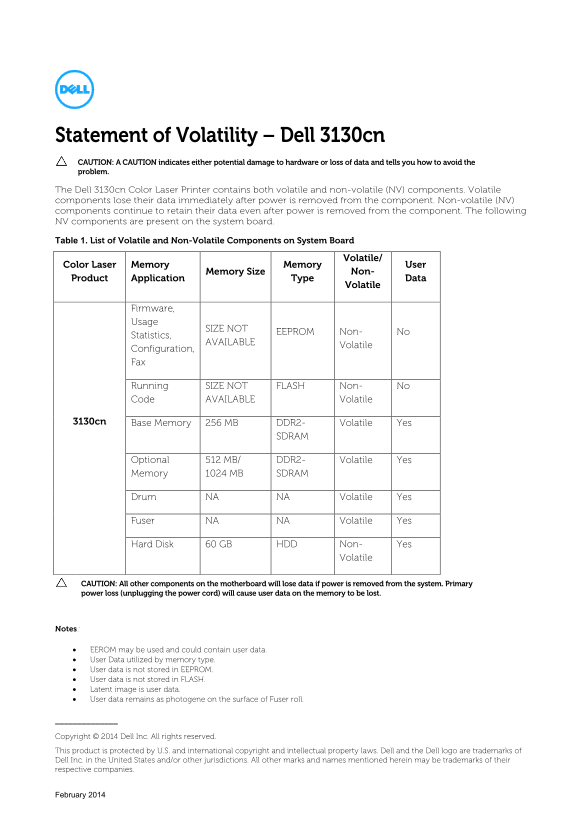

Statement of Volatility – Dell 3130cn CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell 3130cn Color Laser Printer contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the system board. Table 1. List of Volatile and Non-Volatile Components on System Board
Volatile/
Color Laser Memory Memory User
Memory Size Non-
Product Application Type Data
Volatile
Firmware, Usage
SIZE NOT
EEPROM Non- No
Statistics,
AVAILABLE
Volatile
Configuration, Fax
Running SIZE NOT FLASH Non- No Code AVAILABLE Volatile
3130cn Base Memory 256 MB DDR2- Volatile Yes
SDRAM
Optional 512 MB/ DDR2- Volatile Yes Memory 1024 MB SDRAM
Drum NA NA Volatile Yes
Fuser NA NA Volatile Yes
Hard Disk 60 GB HDD Non- Yes
Volatile
CAUTION: All other components on the motherboard will lose data if power is removed from the system. Primary power loss (unplugging the power cord) will cause user data on the memory to be lost.
Notes:
• EEROM may be used and could contain user data. • User Data utilized by memory type. • User data is not stored in EEPROM. • User data is not stored in FLASH. • Latent image is user data. • User data remains as photogene on the surface of Fuser roll.
Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
February 2014
Page Summary Contents For Dell 3130cn Color Laser Printer Statement of Volatility
Manual Details
| Brand | Laser |
|---|---|
| Pages | 1 |
| File Size | 55.65 KB |
| Published | May 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What components retain data after loss of primary power?
Only specific Non-Volatile (NV) components on the system board, such as EEPROM and the Hard Disk, are listed as retaining data.
Where is user's data stored within the printer system?
User data can be utilized by memory types like EEPROM or remains as a photogene on the surface of the Fuser roll (Latent image).
What are the available options for system memory?
The system features 256 MB DDR2 base memory and accepts optional upgrades up to 1024 MB SDRAM.
