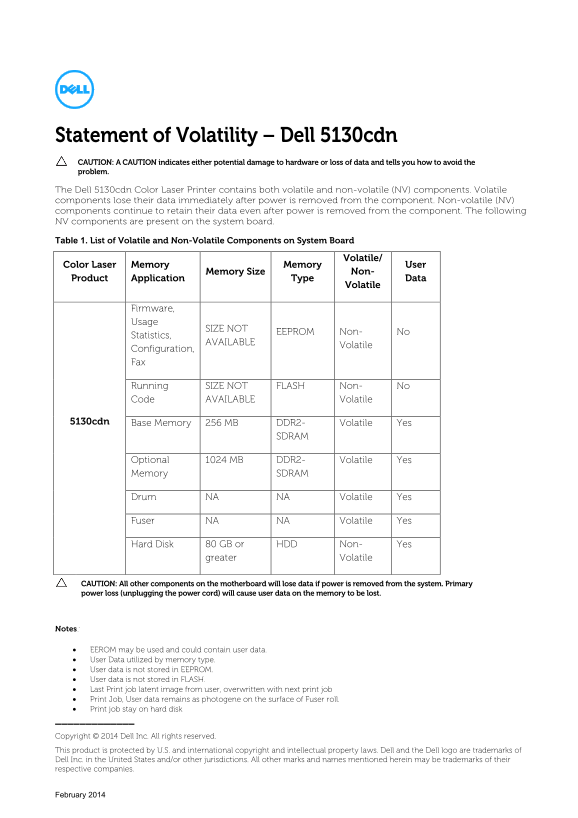

Dell 5130cdn Color Laser Printer Statement of Volatility Owner's Manual

Statement of Volatility – Dell 5130cdn CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell 5130cdn Color Laser Printer contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the system board. Table 1. List of Volatile and Non-Volatile Components on System Board

Volatile/

Color Laser Memory Memory User

Memory Size Non-

Product Application Type Data

Volatile

Firmware, Usage

SIZE NOT

EEPROM Non- No

Statistics,

AVAILABLE

Volatile

Configuration, Fax

Running SIZE NOT FLASH Non- No Code AVAILABLE Volatile

5130cdn Base Memory 256 MB DDR2- Volatile Yes

SDRAM

Optional 1024 MB DDR2- Volatile Yes Memory SDRAM

Drum NA NA Volatile Yes

Fuser NA NA Volatile Yes

Hard Disk 80 GB or HDD Non- Yes

greater Volatile

CAUTION: All other components on the motherboard will lose data if power is removed from the system. Primary power loss (unplugging the power cord) will cause user data on the memory to be lost.

Notes:

• EEROM may be used and could contain user data. • User Data utilized by memory type. • User data is not stored in EEPROM. • User data is not stored in FLASH. • Last Print job latent image from user, overwritten with next print job • Print Job, User data remains as photogene on the surface of Fuser roll. • Print job stay on hard disk

Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

February 2014
