This guide provides detailed technical knowledge for the Dell 2330d/dn Mono Laser Printer, focusing specifically on data management and component reliability. It systematically explains the difference between volatile (data lost upon power removal) and non-volatile system components like memory and EEPROM. Ideal for technicians, service personnel, or advanced users who need to understand internal hardware architecture and safeguard against data loss during maintenance procedures.

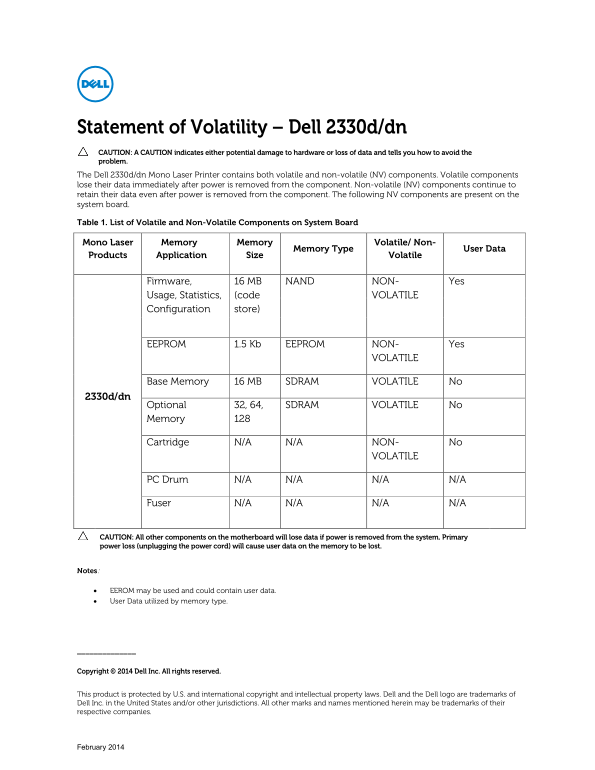

Page 1 Text Content
Statement of Volatility – Dell 2330d/dn CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell 2330d/dn Mono Laser Printer contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the system board. Table 1. List of Volatile and Non-Volatile Components on System Board
Mono Laser Memory Memory Volatile/ Non-
Memory Type User Data
Products Application Size Volatile
Firmware, 16 MB NAND NON- Yes Usage, Statistics, (code VOLATILE Configuration store)
EEPROM 1.5 Kb EEPROM NON- Yes
VOLATILE
Base Memory 16 MB SDRAM VOLATILE No
2330d/dn
Optional 32, 64, SDRAM VOLATILE No Memory
Cartridge N/A N/A NON- No
VOLATILE
PC Drum N/A N/A N/A N/A
Fuser N/A N/A N/A N/A
CAUTION: All other components on the motherboard will lose data if power is removed from the system. Primary power loss (unplugging the power cord) will cause user data on the memory to be lost.
Notes:
• EEROM may be used and could contain user data. • User Data utilized by memory type.
Copyright © 2014 Dell Inc. All rights reserved.
This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
February 2014
Page Summary Contents For Dell Dell Dell 2330d dn Mono Laser Printer Statement of volatitlility
Manual Details
| Brand | Laser |
|---|---|
| Pages | 1 |
| File Size | 45.12 KB |
| Published | May 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the difference between volatile and non-volatile components?
Volatile components lose data when power is removed, while non-volatile (NV) components retain data.
Which storage component on the Dell 2330d/dn retains user data when powered off?
The EEPROM and the Memory type used for User Data Products are the listed NV components.
What happens to basic system memory if power is unplugged?
Primary power loss (unplugging the power cord) will cause user data on the available memory to be lost.
