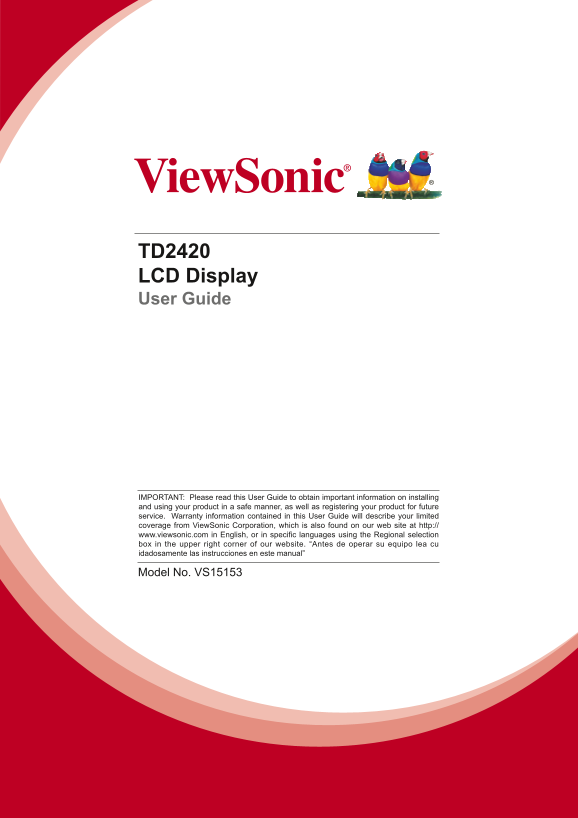

TD2420 LCD Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for futu...
Page 2
Compliance Information NOTE: This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant m...
Page 3
CE Conformity for European Countries The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. Following information is only for EU-member states: The mark shown to ...
Page 4
TCO Information Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, ...
Page 5
Declaration of Ro HS Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain ...
Page 6
Cautions and Warnings 1. Read these instructions completely before using the equipment. 2. Keep these instructions in a safe place. 3. Heed all warnings and follow all instructions. 4. Sit at least 18...
Page 7
20. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to a...
Page 8
Contents Compliance Information FCC Compliance Statement ...................................................................................i Industry Canada Statement ...................................
Page 9
Copyright Information Copyright © View Sonic® Corporation, 2013. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, and the Windows logo are...
Page 10
Product Registration To fulfill possible future product needs, and to receive additional product information as it becomes available, please visit your region section on View Sonic’s website to regist...
Page 11
Getting Started Congratulations on your purchase of a View Sonic® LCD display. Important! Save the original box and all packing material for future shipping needs. NOTE: The word “Windows” in this use...
Page 12
Quick Installation 1. Connect video cable • Make sure both the LCD display and computer are turned OFF. • Remove rear panel covers if necessary. • Connect the video cable from the LCD display to the c...
Page 13
Control of the Touch Function 1. Before using the touch function, make sure the USB cable is connected and the Windows 7 operating system is started. 2. When the touch function is active, make sure th...
Page 14
Wall Mounting (Optional) NOTE: For use only with UL Listed Wall Mount Bracket. To obtain a wall-mounting kit or height adjustment base, contact View Sonic® or your local dealer. Refer to the instructi...
Page 15
Using the LCD Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution ...
Page 16
Adjusting the Screen Image Use the buttons on the front control panel to display and adjust the OSD controls which display on the screen. Standby Power On/Off Power light Blue = ON Orange = Power Savi...
Page 17
Main Menu Controls Adjust the menu items by using the up ▲ and down ▼ buttons. NOTE: Check the Main Menu items on your LCD OSD and refer to Main Menu Explanation below. Main Menu Explanation NOTE: The...
Page 18
Input Select toggles between inputs if you have more than one computer connected to the LCD display. Manual Image Adjust displays the Manual Image Adjust menu. You can manually set a variety of image ...
Page 19
Other Information Specifications LCD Type TFT (Thin Film Transistor), Active Matrix 1920 x 1080 LCD, 0.2715 mm pixel pitch Display Size Metric: 59.8 cm Imperial: 24” (23.6” viewable) Color Filter RGB ...
Page 20
Cleaning the LCD Display • MAKE SURE THE LCD DISPLAY IS TURNED OFF. • NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE. To clean the screen: 1. Wipe the screen with a clean, soft, lint-...
Page 21
Troubleshooting No power • Make sure power button (or switch) is ON. • Make sure A/C power cord is securely connected to the LCD display. • Plug another electrical device (like a radio) into the power...
Page 22
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product serial number. T = Telephone Country/Region Website Email F = F...
Page 23
Limited Warranty View Sonic® LCD Display What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. I...
Page 24
Exclusion of damages: View Sonic's liability is limited to the cost of repair or replacement of the product. View Sonic shall not be liable for: 1. Damage to other property caused by any defects in th...
Page 25
Mexico Limited Warranty View Sonic® LCD Display What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty pe...
Page 26
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
