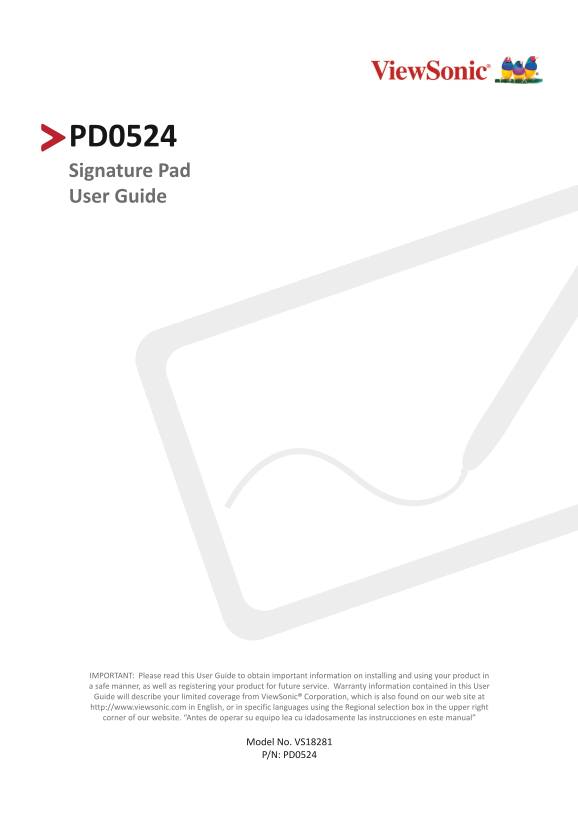

Page 1
PD0524 Signature Pad User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for fu...
Page 2
Thank you for choosing View Sonic® As a world-leading provider of visual solutions, View Sonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplici...
Page 3
Safety Precautions Please read the following Safety Precautions before you start using the device. • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instru...
Page 4
Contents Safety Precautions ....................................................... Introduction ................................................................ Package Contents ........................
Page 5
Introduction Package Contents USB 2.0 cable PD0524 Replacement Pen nib (Type-A to Micro Pen Signature Pad x 3 PD0524 Pen Display Quick Start Guide Guide de démarrage rapide Guía rápida de inicio Green...
Page 6
Product Overview 1. Cable Channel 2. Pen Tether 3. Pen Holder 4. Status Indicator Light Anchor Point 5. Display Screen 6. Security Lock Slot 7. Micro USB Port 8. Pen
Page 7
Making Connections System Requirements: Operating system: Windows XP/7/8/10 (32/64 bit) PC I/O: USB 2.0/above 1. Turn the device over so the bottom side is facing up. 2. Connect the Micro USB end of t...
Page 8
4. Connect the other end of the USB cable to a computer. The Status Indicator Light will turn green once successfully connected.
Page 9
Using the Display Using the Pen Tether The Pen Tether can be attached to the Pen and one of the two available anchor points.
Page 10
Status Indicator Light The Status Indicator Light will turn green once successfully connected to a computer. When the Pen touches the Display Screen, the Status Indicator Light will turn blue.
Page 11
Appendix Specifications Display Item Category Specifications Type 800 x 480 LCD, LCD 0.135 mm x 0.135 mm pixel pitch Surface Treatment 8H Resolution Supported 800 x 480 (16:10) Power USB USB 2.0: 5V/0...
Page 12
Product Dimensions 195 mm 21.51 mm 129.95 mm 9.2 mm 129.95 mm
Page 13
Troubleshooting This section describes some common problems that you may experience when using the monitor. Problem or Issue Possible Solutions • Ensure the USB cable is connected properly at both end...
Page 14
Maintenance General Precautions • Make sure the display is turned off and unplugged. • Never spray or pour any liquid directly onto the screen or case. • Handle the display with care. Cleaning the Scr...
Page 15
Replacing a Pen Nib When the pen nib gets too short or develops a sharp edge, it can be replaced with spare nibs. To replace a pen nib: 1. Use the nib removal tool to pull the old nib straight out of ...
Page 16
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to na...
Page 17
The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates ...
Page 18
• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). • Electrical and electronic components containing lead in a glass or ceramic other than ...
Page 19
Copyright Information Copyright© View Sonic® Corporation, 2021. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, and the Windows logo are ...
Page 20
Customer Service For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Websit...
Page 21
Limited Warranty View Sonic® Display What the warranty covers: View Sonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to ...
Page 22
• Causes external to the product, such as electric power fluctuations or failure. • Use of supplies or parts not meeting View Sonic’s specifications. • Failure of owner to perform periodic product mai...
Page 23
Exclusion of damages: View Sonic’s liability is limited to the cost of repair or replacement of the product. View Sonic® shall not be liable for: • Damage to other property caused by any defects in th...
Page 24
Mexico Limited Warranty View Sonic® Display What the warranty covers: View Sonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty perio...
Page 25
How to get service: For information about receiving service under warranty, contact View Sonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your p...
Page 26
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
Page 27
C0 M91 Y72 K24Process Color C0 M0 Y0 K100Process Color C0 M91 Y72 K24Process Color Pantone Black CSpot Color Pantone 187 CSpot Color Pantone Black CSpot Color Pantone 187 COr Spot Color
