Page 1

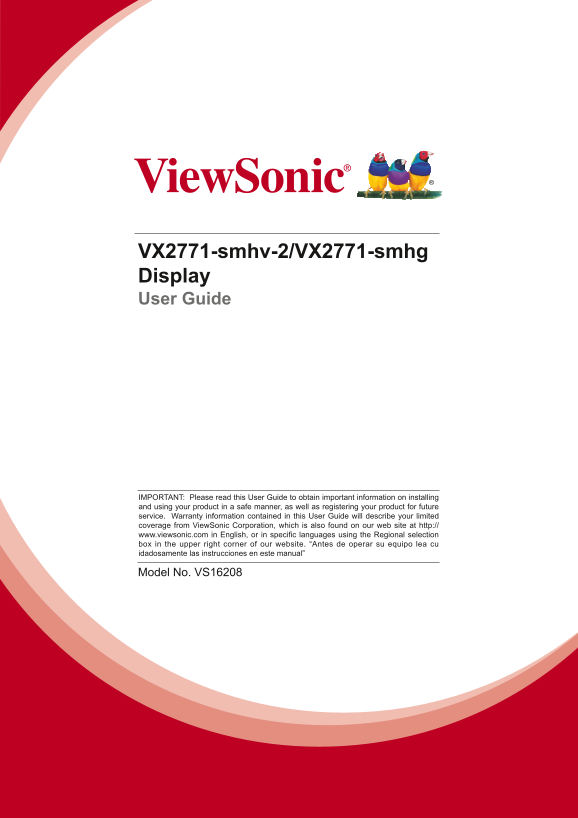

VX2771-smhv-2/VX2771-smhg Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your p...
Page 2
Compliance Information NOTE: This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant m...
Page 3
TCO Information Congratulations! This product is TCO Certified – for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures th...
Page 4
Declaration of Ro HS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain...
Page 5
Cautions and Warnings 1. Read these instructions completely before using the equipment. 2. Keep these instructions in a safe place. 3. Heed all warnings and follow all instructions. 4. Sit at least 18...
Page 6
20. Only use attachments/accessories specified by the manufacturer. 21. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart ...
Page 7
Contents Compliance Information FCC Compliance Statement ...................................................................................i Industry Canada Statement ...................................
Page 8
Copyright Information Copyright © View Sonic® Corporation, 2016. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, and the Windows logo are...
Page 9
Product Registration To fulfill possible future product needs, and to receive additional product information as it becomes available, please visit your region section on View Sonic’s website to regist...
Page 10
Getting Started Thank you for purchasing your monitor from View Sonic®. At View Sonic, we aim to provide the most stunning visual experience possible. Package Contents Your display package includes: •...
Page 11
Quick Installation 1. Connect video cable • Make sure both the display and computer are turned OFF. • Remove rear panel covers if necessary. • Connect the video cable from the display to the computer....
Page 12
Using the Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution (exa...
Page 13
Adjusting the Screen Image Use the buttons on the front control panel to display and adjust the on-screen OSD control settings. Standby Power On/Off Power light Blue = ON Flickering = Power Saving Dis...
Page 14
Main Menu Controls Navigate through menu items by using the left/right ◄/► buttons. NOTE: Check the Main Menu items on your display OSD and refer to Main Menu Explanation below. Main Menu Explanation ...
Page 15
Input Select toggles between inputs if you have more than one computer connected to the display. Manual Image Adjust displays the Manual Image Adjust menu. You can manually set a variety of image qual...
Page 16
Other Information Specifications Display Type TFT (Thin Film Transistor), Active Matrix 1920 x 1080 Display, 0.3114 mm pixel pitch Display Size Metric: 68.6 cm Imperial: 27” (27” viewable) Color Filte...
Page 17
Cleaning the Display • MAKE SURE THE DISPLAY IS TURNED OFF. • NEVER SPRAY OR POUR ANY LIQUIDS DIRECTLY ONTO THE SCREEN OR HOUSING. To clean the screen: 1. Wipe the screen with a clean, soft, lint-free...
Page 18
Troubleshooting No power • Make sure the power button (or switch) is ON. • Make sure A/C power cord is securely connected to the display. • Plug another electrical device into the power outlet to veri...
Page 19
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need to provide the product serial number. T = Telephone Country/Region Website ...
Page 20
Limited Warranty View Sonic® Display What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a ...
Page 21
Exclusion of damages: View Sonic's liability is limited to the cost of repair or replacement of the product. View Sonic shall not be liable for: 1. Damage to other property caused by any defects in th...
Page 22
Mexico Limited Warranty View Sonic® Display What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period...
Page 23
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
