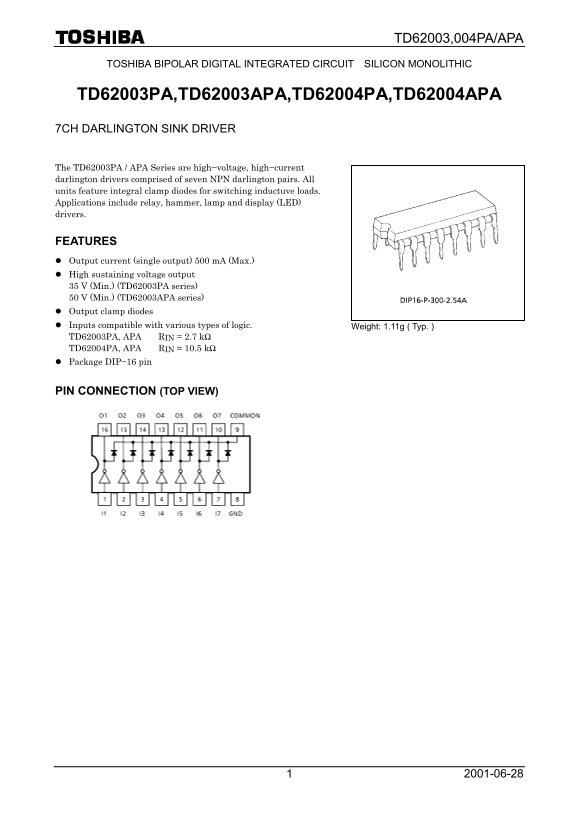

TD62003,004PA/APA

TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC

TD62003PA,TD62003APA,TD62004PA,TD62004APA 7CH DARLINGTON SINK DRIVER

The TD62003PA / APA Series are high−voltage, high−current darlington drivers comprised of seven NPN darlington pairs. All units feature integral clamp diodes for switching inductuve loads. Applications include relay, hammer, lamp and display (LED) drivers.

FEATURES Output current (single output) 500 m A (Max.) High sustaining voltage output 35 V (Min.) (TD62003PA series) 50 V (Min.) (TD62003APA series) Output clamp diodes Inputs compatible with various types of logic. Weight: 1.11g ( Typ. ) TD62003PA, APA RIN = 2.7 kΩ TD62004PA, APA RIN = 10.5 kΩ Package DIP−16 pin

PIN CONNECTION (TOP VIEW)

Page Summary Contents For TOSHIBA TD62003,004PA APA Data Manual

Page 1 TD62003,004PA/APA TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC TD62003PA,TD62003APA,TD62004PA,TD62004APA 7CH DARLINGTON SINK DRIVER The TD62003PA / APA Series are high−voltage, high−c...

Page 2 TD62003,004PA/APA SCHEMATICS (EACH DRIVER) TD62003PA / APA TD62004PA / APA Note: The input and output parasitic diodes cannot be used as clamp diodes. MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC SYMBOL...

Page 3 TD62003,004PA/APA ELECTRICAL CHARACTERISTICS (Ta = 25°C) TEST CHARACTERISTIC SYMBOL CIR− TEST CONDITION MIN TYP. MAX UNIT CUIT VCE = 50 V, Ta = 25°C ― ― 50 VCE = 50 V, Ta = 85°C ― ― 100 Output Leakage...

Page 4 TD62003,004PA/APA TEST CIRCUIT 1. ICEX 2. VCE (sat), h FE 3. IIN (ON) 4. IIN (OFF) 5. VIN (ON) 6. IR 7. VF

Page 5 TD62003,004PA/APA 8. t ON, t OFF Note 1: Pulse Width 50 µs, Duty Cycle 10% Output Impedance 50 Ω, tr ≤ 5ns, tf ≤ 10ns Note 2: See below INPUT CONDITION TYPE NUMBER RI VIH TD620003PA / APA 0 3 V TD6200...

Page 6 TD62003,004PA/APA

Page 7 TD62003,004PA/APA

Page 8 TD62003,004PA/APA

Page 9 TD62003,004PA/APA PACKAGE DIMENSIONS DIP16−P−300−2.54A Unit : mm Weight: 1.11 g (Typ.)

Page 10 TD62003,004PA/APA 000707EBARESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunc...
