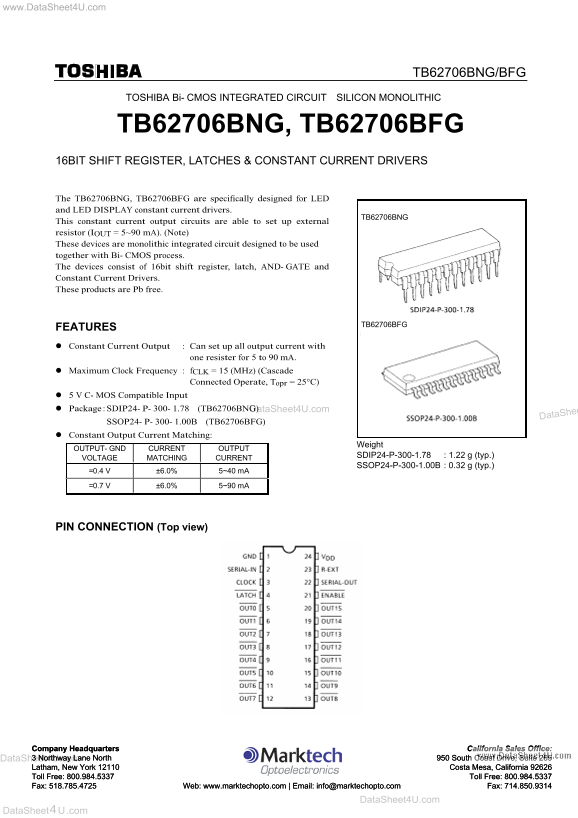

Page 1 Text Content
www.Data Sheet4U.com
TB62706BNG/BFG
TOSHIBA Bi- CMOS INTEGRATED CIRCUIT SILICON MONOLITHIC
TB62706BNG, TB62706BFG 16BIT SHIFT REGISTER, LATCHES & CONSTANT CURRENT DRIVERS The TB62706BNG, TB62706BFG are specifically designed for LED
and LED DISPLAY constant current drivers.
TB62706BNG
This constant current output circuits are able to set up external resistor (IOUT = 5~90 m A). (Note) These devices are monolithic integrated circuit designed to be used together with Bi- CMOS process. The devices consist of 16bit shift register, latch, AND- GATE and Constant Current Drivers. These products are Pb free.
TB62706BFG
FEATURES l Constant Current Output : Can set up all output current with
one resister for 5 to 90 m A.
l Maximum Clock Frequency : f CLK = 15 (MHz) (Cascade
Connected Operate, Topr = 25°C)
l 5 V C- MOS Compatible Input l Package : SDIP24- P- 300- 1.78 (TB62706BNG) Data Sheet4U.com
Data Sheet4U.com
SSOP24- P- 300- 1.00B (TB62706BFG) l Constant Output Current Matching:
Weight
OUTPUT- GND CURRENT OUTPUT
SDIP24-P-300-1.78 : 1.22 g (typ.)
VOLTAGE MATCHING CURRENT
SSOP24-P-300-1.00B : 0.32 g (typ.)
PIN CONNECTION (Top view)
