These are high-reliability NPN Bipolar Junction Transistors designed for critical interface, switching, and inverter circuits. This technical guide provides comprehensive operational details, including maximum ratings, detailed electrical characteristics (such as saturation voltage and current gain), and recommendations for implementing optimal bias resistor values. It is essential documentation for electronics engineers designing general purpose equipment like computer, appliance, or measuring systems who need to integrate reliable, low-power switching capability into their designs.

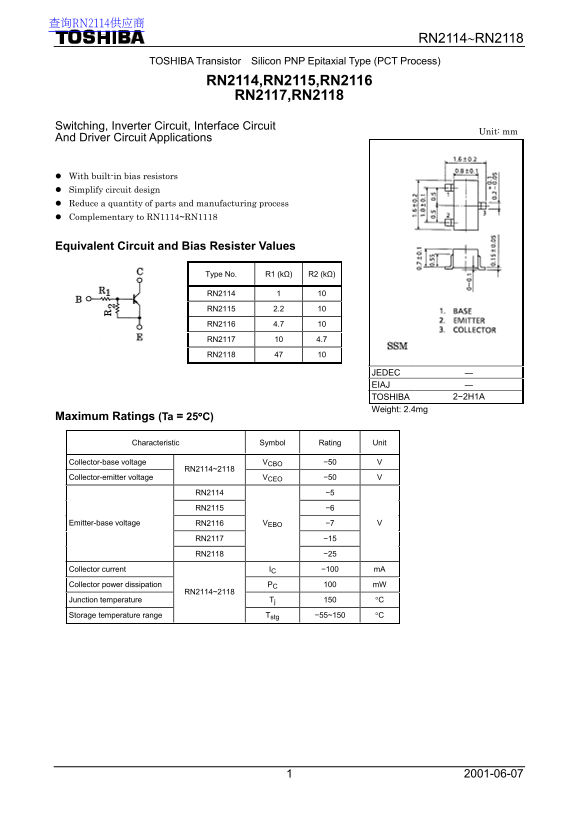

Page 1 Text Content
查询RN2114供应商
RN2114RN2118
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)
RN2114,RN2115,RN2116 RN2117,RN2118
Switching, Inverter Circuit, Interface Circuit
Unit: mm
And Driver Circuit Applications
With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN1114~RN1118
Equivalent Circuit and Bias Resister Values
Type No. R1 (kΩ) R2 (kΩ)
RN2114 1 10 RN2115 2.2 10 RN2116 4.7 10 RN2117 10 4.7 RN2118 47 10
JEDEC ― EIAJ ― TOSHIBA 2−2H1A Weight: 2.4mg
Maximum Ratings (Ta = 25C)
Characteristic Symbol Rating Unit
Collector-base voltage VCBO −50 V
RN2114~2118
Collector-emitter voltage VCEO −50 V
RN2114 −5 RN2115 −6
Emitter-base voltage RN2116 −7 VEBO
RN2117 −15 RN2118 −25
Collector current IC −100 m A Collector power dissipation PC 100 m W
RN2114~2118
Junction temperature Tj 150 C Storage temperature range Tstg −55~150
Page Summary Contents For Toshiba RN2114, RN2115, RN2116, RN2117, RN2118 Data Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 9 |
| File Size | 266.07 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of equipment are not suitable for using these transistors?
They are not intended or warranted for usage in equipment requiring extraordinarily high quality or reliability, such as medical instruments, aircraft, or atomic energy control instruments.
How can I simplify the circuit design when implementing this device?
The device includes built-in bias resistors, which simplifies circuit design and reduces the overall number of parts needed.
What is the maximum Collector current (I_C) rating for these types?
The Collector current capacity is rated at -100 mA.
