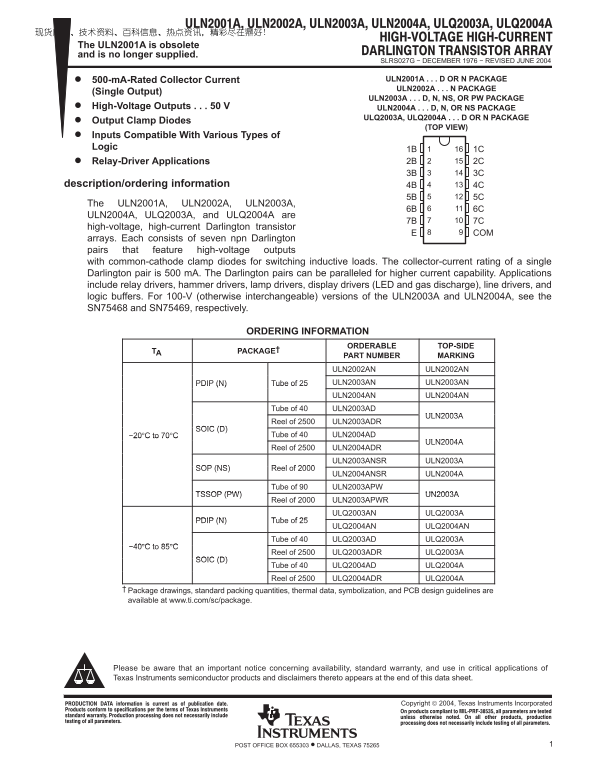

The ULN2001A is obsolete and is no longer supplied.
SLRS027G − DECEMBER 1976 − REVISED JUNE 2004
500-m A-Rated Collector Current ULN2001A D OR N PACKAGE ULN2002A N PACKAGE
(Single Output)
ULN2003A D, N, NS, OR PW PACKAGE
High-Voltage Outputs 50 V ULN2004A D, N, OR NS PACKAGE
ULQ2003A, ULQ2004A D OR N PACKAGE
Output Clamp Diodes
(TOP VIEW)
Inputs Compatible With Various Types of Logic
1B 1C Relay-Driver Applications 2B 2C 3B 3C
description/ordering information 4B 4C
The ULN2001A, ULN2002A, ULN2003A,
ULN2004A, ULQ2003A, and ULQ2004A are
high-voltage, high-current Darlington transistor
arrays. Each consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 m A. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. For 100-V (otherwise interchangeable) versions of the ULN2003A and ULN2004A, see the SN75468 and SN75469, respectively.
ORDERING INFORMATION
ORDERABLE TOP-SIDE
TA PACKAGE†
PART NUMBER MARKING ULN2002AN ULN2002AN PDIP (N) Tube of 25 ULN2003AN ULN2003AN ULN2004AN ULN2004AN
Tube of 40 ULN2003AD
ULN2003A
Reel of 2500 ULN2003ADR
SOIC (D)
−20°C to 70°C Tube of 40 ULN2004AD
ULN2004A
Reel of 2500 ULN2004ADR
ULN2003ANSR ULN2003A
SOP (NS) Reel of 2000
ULN2004ANSR ULN2004A
Tube of 90 ULN2003APW
TSSOP (PW) UN2003A
Reel of 2000 ULN2003APWR
ULQ2003AN ULQ2003A
PDIP (N) Tube of 25
ULQ2004AN ULQ2004AN
Tube of 40 ULQ2003AD ULQ2003A
−40°C to 85°C
Reel of 2500 ULQ2003ADR ULQ2003A
SOIC (D)
Tube of 40 ULQ2004AD ULQ2004A Reel of 2500 ULQ2004ADR ULQ2004A
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
