These ultra-low power quad differential comparators (LP239, LP339, LP2901) are ideal components for battery-powered and signal processing applications requiring high efficiency. The manual provides comprehensive technical guidance on setting operational parameters, verifying electrical compatibility with single/split supplies, and details key specifications such as current consumption and temperature ranges. This resource is essential for engineers developing analog circuits, limit comparators, pulse generators, or simple ADCs needing reliable performance from the CMOS logic family.

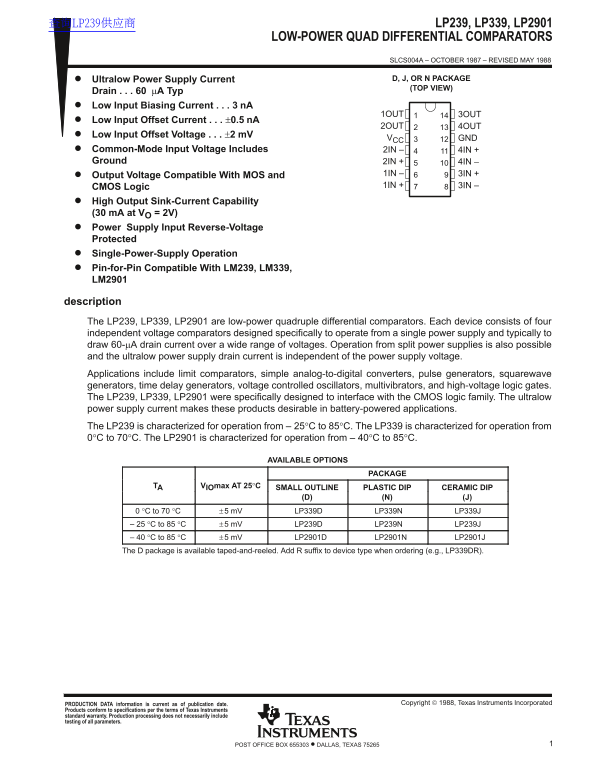

Page 1 Text Content
查询LP239供应商 LP239, LP339, LP2901
LOW-POWER QUAD DIFFERENTIAL COMPARATORS
SLCS004A – OCTOBER 1987 – REVISED MAY 1988
Ultralow Power Supply Current D, J, OR N PACKAGE (TOP VIEW)
Drain 60 µA Typ Low Input Biasing Current 3 n A
1OUT 3OUT
Low Input Offset Current ±0.5 n A
2OUT 4OUT
Low Input Offset Voltage ±2 m V
VCC GND
Common-Mode Input Voltage Includes 2IN 4IN Ground 2IN 4IN
Output Voltage Compatible With MOS and 1IN 3IN CMOS Logic 1IN 3IN
High Output Sink-Current Capability (30 m A at VO = 2V) Power Supply Input Reverse-Voltage Protected Single-Power-Supply Operation Pin-for-Pin Compatible With LM239, LM339, LM2901
description The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage. Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultralow power supply current makes these products desirable in battery-powered applications. The LP239 is characterized for operation from – 25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from – 40°C to 85°C.
AVAILABLE OPTIONS
PACKAGE
TA VIOmax AT 25°C SMALL OUTLINE PLASTIC DIP CERAMIC DIP
0 °C to 70 °C ±5 m V LP339D LP339N LP339J – 25 °C to 85 °C ±5 m V LP239D LP239N LP239J – 40 °C to 85 °C ±5 m V LP2901D LP2901N LP2901J The D package is available taped-and-reeled. Add R suffix to device type when ordering (e.g., LP339DR).
Copyright 1988, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments LP239, LP339, LP2901 Data Handbook
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 7 |
| File Size | 88.33 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What power applications are suitable for these low-power comparators?
They are ideal for battery-powered applications due to their ultra-low supply drain current, typically 60 μA.
Are the LP239, LP339, and LP2901 compatible with older parts?
Yes, these devices are pin-for-pin compatible with LM239, LM339, and LM2901 models.
Do I need to worry about the operating temperature when selecting a model?
The LP239 handles –25°C to 85°C; LP339 is for 0°C to 70°C; and LP2901 supports –40°C to 85°C.
Can I use these chips in critical life-support systems?
No, TI does not warrant or design these products for use in life-support devices or other critical applications.
