Siemens STM 51004X STM 51005X Data Sheet
Summary
This specialized laser diode is engineered for high-performance fiber-optic network applications at a wavelength of 1300 nm. Featuring a Multi-Quantum Well structure and capable of supporting bit rates up to 1 Gbit/s, it includes an integrated rear monitoring photodiode for precise power control. The accompanying manual provides comprehensive technical data, including maximum ratings, electrical characteristics, and detailed performance graphs, making it the essential resource for system engineers designing reliable digital communication infrastructure.
Page 1 Text Content

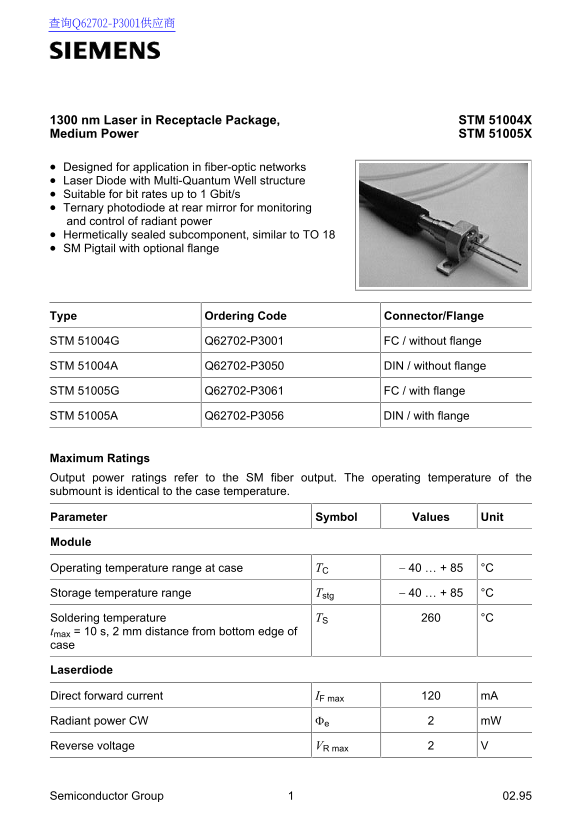

1300 nm Laser in Receptacle Package, STM 51004X Medium Power STM 51005X
Designed for application in fiber-optic networks Laser Diode with Multi-Quantum Well structure Suitable for bit rates up to 1 Gbit/s Ternary photodiode at rear mirror for monitoring and control of radiant power Hermetically sealed subcomponent, similar to TO 18 SM Pigtail with optional flange
Type Ordering Code Connector/Flange
STM 51004G Q62702-P3001 FC / without flange
STM 51004A Q62702-P3050 DIN / without flange
STM 51005G Q62702-P3061 FC / with flange
STM 51005A Q62702-P3056 DIN / with flange
Maximum Ratings Output power ratings refer to the SM fiber output. The operating temperature of the submount is identical to the case temperature.
Parameter Symbol Values Unit
Module
Operating temperature range at case TC − 40 … + 85 °C
Storage temperature range Tstg − 40 … + 85 °C
Soldering temperature TS °C tmax = 10 s, 2 mm distance from bottom edge of case
Laserdiode
Direct forward current IF max m A
Radiant power CW Φe m W
Reverse voltage VR max
Semiconductor Group 02.95
