Siemens Industrial SIRIUS Circuit Breaker S3 SIRIUS Circuit Breaker S3 User Manual
Summary
This comprehensive manual provides detailed operating instructions for the SIRIUS 3RV5.4 Circuit Breaker, a highly reliable electrical protection device conforming to IEC/EN standards. It includes essential information on installation procedures, wiring diagrams, technical specifications (e.g., connection settings and dimensional drawings), and necessary safety precautions. This guide is designed for professional electricians, engineers, and maintenance personnel responsible for the safe installation, operation, or servicing of industrial circuit breaker systems.
Page 1 Text Content

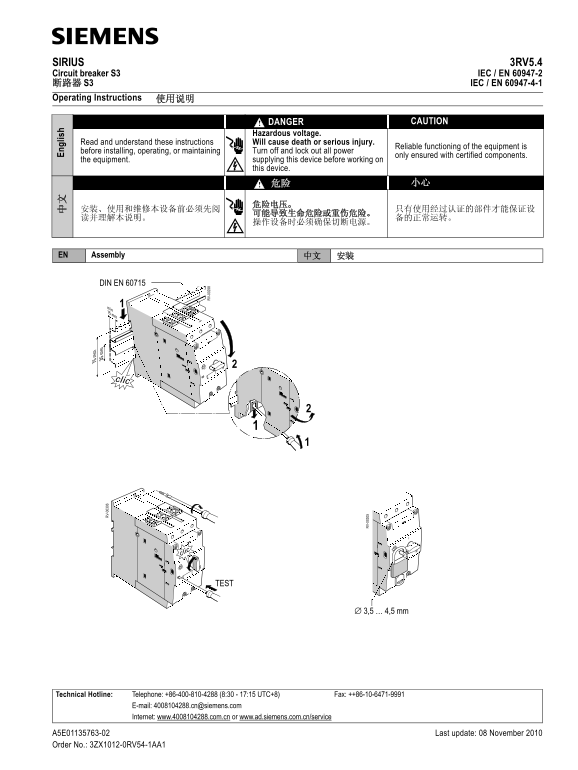

SIRIUS 3RV5.4 En gl is
Circuit breaker S3 IEC EN 60947-2 断路器 S3 IEC EN 60947-4-1 Operating Instructions 使用说明
DANGER CAUTION
Hazardous voltage. Read and understand these instructions Will cause death or serious injury.
Reliable functioning of the equipment is
before installing, operating, or maintaining Turn off and lock out all power
only ensured with certified components.
the equipment. supplying this device before working on this device.
EN Assembly 中文 安装
DIN EN 60715
∅ 3,5 … 4,5 mm
Technical Hotline: Telephone: +86-400-810-4288 (8:30 - 17:15 UTC+8) Fax: ++86-10-6471-9991
E-mail: [email protected] Internet: www.4008104288.com.cn or www.ad.siemens.com.cn/service
A5E01135763-02 Last update: 08 November 2010 Order No.: 3ZX1012-0RV54-1AA1
