This comprehensive manual provides essential operating instructions and technical specifications for SIRIUS circuit breakers (e.g., 3RV6 series). It is designed for industrial electrical engineers, maintenance technicians, and system integrators responsible for configuring customized motor control centers. The guide covers safe installation procedures, detailed functioning tests including checking undervoltage release post-trip, and critical safety warnings necessary for working with high-voltage equipment, ensuring reliable operation of your automated machinery.

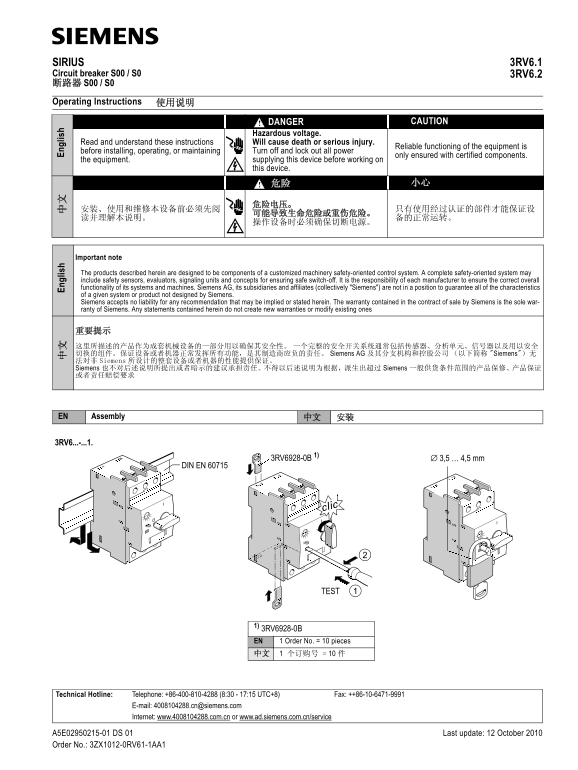

Page 1 Text Content
SIRIUS En gl is 3RV6.1 En gl is
Circuit breaker S00 S0 3RV6.2 断路器 S00 S0 Operating Instructions 使用说明
DANGER CAUTION
Hazardous voltage. Read and understand these instructions Will cause death or serious injury.
Reliable functioning of the equipment is
before installing, operating, or maintaining Turn off and lock out all power
only ensured with certified components.
the equipment. supplying this device before working on this device.
Important note
The products described herein are designed to be components of a customized machinery safety-oriented control system. A complete safety-oriented system may include safety sensors, evaluators, signaling units and concepts for ensuring safe switch-off. It is the responsibility of each manufacturer to ensure the correct overall functionality of its systems and machines. Siemens AG, its subsidiaries and affiliates (collectively "Siemens") are not in a position to guarantee all of the characteristics of a given system or product not designed by Siemens. Siemens accepts no liability for any recommendation that may be implied or stated herein. The warranty contained in the contract of sale by Siemens is the sole war- ranty of Siemens. Any statements contained herein do not create new warranties or modify existing ones
重要提示 这里所描述的产品作为成套机械设备的一部分用以确保其安全性。 一个完整的安全开关系统通常包括传感器、分析单元、信号器以及用以安全 切换的组件。保证设备或者机器正常发挥所有功能，是其制造商应负的责任。 Siemens AG 及其分支机构和控股公司 （以下简称 "Siemens"）无 法对非 Siemens 所设计的整套设备或者机器的性能提供保证。 Siemens 也不对后述说明所提出或者暗示的建议承担责任。不得以后述说明为根据，派生出超过 Siemens 一般供货条件范围的产品保修、产品保证 或者责任赔偿要求
EN Assembly 中文 安装
3RV6...-...1.
3RV6928-0B 1) ∅ 3,5 … 4,5 mm
DIN EN 60715
1) 3RV6928-0B
EN 1 Order No. = 10 pieces 中文 1 个订购号 = 10 件
Technical Hotline: Telephone: +86-400-810-4288 (8:30 - 17:15 UTC+8) Fax: ++86-10-6471-9991
E-mail: [email protected] Internet: www.4008104288.com.cn or www.ad.siemens.com.cn/service
A5E02950215-01 DS Last update: 12 October 2010 Order No.: 3ZX1012-0RV61-1AA1
Page Summary Contents For Siemens Industrial SIRIUS Circuit Breaker S00, S0 - User Manual
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 6 |
| File Size | 1.19 MB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is essential safety protocol before installing or maintaining this equipment?
You must turn off and lock out all power, ensuring it is done using certified components.
If the circuit breaker experiences a short-circuit release (TRIPPED), what check should I perform next?
Check that the undervoltage release was installed properly and re-run its function test.
Does Siemens guarantee the overall functionality of my customized safety control system?
No, it is the responsibility of each manufacturer to ensure the correct overall functionality of their systems and machines.
