Page 1

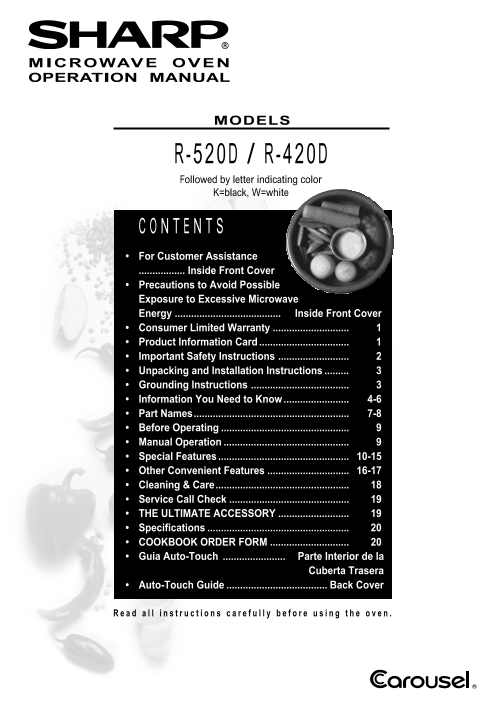

MICROWAVE OVEN OPERATION MANUAL MODELS -520D -420D Followed by letter indicating color K=black, W=white For Customer Assistance ................. Inside Front Cover Precautions to Avoid Possible Expos...
Page 2
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and ...
Page 3
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship an...
Page 4
When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to exc...
Page 5
Unpacking and Examining Your Oven ease of use. It's wise, if possible, to have counter space on at least one side of the oven. Allow at least 2 inches Remove: on the sides, top and at the rear of the ...
Page 6
ABOUT YOUR OVEN This Operation Manual is valuable: read it carefully When using the oven at power levels below 100%, you and always save it for reference. may hear the magnetron cycling on and off. It...
Page 7
ABOUT UTENSILS AND COVERINGS It is not necessary to buy all new cookware. Many The following coverings are ideal: pieces already in your kitchen can be used success- Paper towels are good for covering...
Page 8
ABOUT MICROWAVE COOKING Arrange food carefully. Place thickest areas towards Rearrange foods such as meatballs halfway outside of dish. through cooking both from top to bottom and from the center of t...
Page 9
MICROWAVE OVEN PARTS One touch door open button Removable turntable Push to open door. Place the turntable on the turntable Oven door with see-through window support securely. The turntable will rotat...
Page 10
CONTROL PANEL Number next to the key panel illustration indicates page on which there are a feature description and usage information.
Page 11
Before operating your new microwave oven make TIME COOKING sure you read and understand this operation manual completely. Your oven can be programmed for 99 minutes 99 seconds (99.99). Always enter th...
Page 12
SENSOR COOK Sharp's Sensor is a semi-conductor device that detects 9. Sensor Cook can only be entered within 1 minute the vapor (moisture and humidity) emitted from the food after cooking, opening and...
Page 13
SENSOR COOK CHART Reheat Sensor oz Place in dish or casserole slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wr...
Page 14
SENSOR COOK CHART (continued) Ground Meat .25 2.0 lb Use this setting to cook ground beef or turkey as patties or in a casserole to be added to other ingredients. Place patties on a microwave-safe rac...
Page 15
SENSOR COOK RECIPES (continued) Glazed Apple Slices Makes 6 to 8 servings 1/4 cup brown sugar 3/4 cup orange juice tablespoons margarine or butter tablespoon cornstarch tablespoons apricot preserves b...
Page 16
INSTANT ACTION Instant Action allows you to cook or reheat many of cook. Ex: touch FRESH ROLLS & MUFFINS two your favorite foods by touching just one pad. times for 2 fresh rolls/muffins. More or ...
Page 17
COMPU DEFROST Compu Defrost automatically defrosts all the foods NOTE: shown in the Compu Defrost Chart below. 1. If you attempt to enter more or less than the allowed Round the weight to the nearest ...
Page 18
MANUAL DEFROST KITCHEN TIMER If the food that you wish to defrost is not listed on the Suppose you want to time a 3 minute long distance Compu Defrost Chart or is above or below the limits in phone ca...
Page 19
CUSTOM HELP 3. Be sure to choose foods that can be left in the oven safely until the Auto Start time. Acorn or butternut Custom Help provides 5 features which make using squash are often a good choice...
Page 20
Exterior The outside surface is painted. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner. Door Wipe the window on both...
Page 21
Please check the following before calling for service: Place one cup of water in a glass measuring cup in the oven and close the door securely. Operate the oven for one minute at HIGH 100%. Does the o...
Page 22
AC Line Voltage: Single phase 120V, 60Hz, AC only Single phase 120V, 60Hz, AC only AC Power Required: 1650 watts, 14.6 amps. 1650 watts, 14.6 amps. Output Power: Microwave 1200 watts* 1200 watts* (IEC...
Page 23
Para mayor informacion y precauciones de seguridad, consulte el Manual de Operaciones PARA FIJAR LA HORA OPERACIÓN MANUAL Si en la pantalla se lee SHARP SIMPLY THE BEST Cocción de Alta Potencia PRESS ...
Page 24
For more complete information and safety precautions, refer to your Operation Manual. SET CLOCK MANUAL OPERATION If SHARP SIMPLY THE BEST PRESS CLEAR AND PRESS High Power Cooking CLOCK is in the displ...
