Page 1

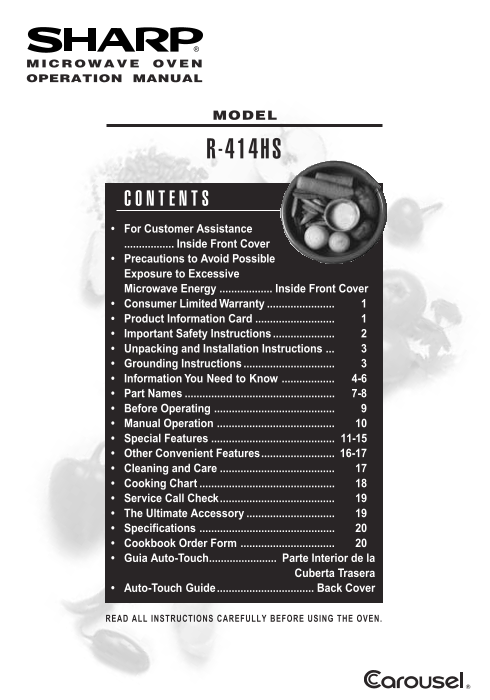

MICROWAVE OVEN OPERATION MANUAL MODEL 414HS For Customer Assistance ................. Inside Front Cover Precautions to Avoid Possible Exposure to Excessive Microwave Energy .................. Inside ...
Page 2
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and ...
Page 3
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship an...
Page 4
When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to exc...
Page 5
Unpacking and Examining Your Oven on at least one side of the oven. Allow at least 2 inches on the sides, top and at the rear of the oven for air Remove: circulation. Do not place or install the oven ...
Page 6
ABOUT YOUR OVEN This Operation Manual is valuable: read it carefully for the exterior of the oven to be warm to the touch and always save it for reference. when cooking or reheating. A good microwave ...
Page 7
ABOUT UTENSILS AND COVERINGS It is not necessary to buy all new cookware. Many The following coverings are ideal: pieces already in your kitchen can be used success- Paper towels are good for covering...
Page 8
ABOUT MICROWAVE COOKING Arrange food carefully. Place thickest areas towards Rearrange foods such as meatballs halfway outside of dish. through cooking both from top to bottom and from the center of t...
Page 9
MICROWAVE OVEN PARTS One touch door open button Removable turntable Push to open door. Place the turntable on the turntable support Oven door with see-through window securely. The turntable will rotat...
Page 10
CONTROL PANEL 16On Door Number next to the control panel illustration indicates pages on which there are feature descriptions and usage information. 1.414HS #335 2/21/03, 10:33 AM8
Page 11
Before operating your new microwave oven make STOP/CLEAR sure you read and understand this operation manual completely. Touch the STOP/CLEAR pad to: 1. Erase if you make a mistake during programming. ...
Page 12
TO SET POWER LEVEL MANUAL DEFROST There are eleven preset power levels. If the food that you wish to defrost is not listed on Using lower power levels increases the cooking time the DEFROST CENTER CHA...
Page 13
POPCORN The POPCORN setting automatically provides the Touch POPCORN once for 3.5 oz bag (regular). correct cooking time for most brands of microwave Touch POPCORN twice for 2.85 - 3.5 oz bag (light p...
Page 14
COOK CENTER CHART (continued) GROUND .3-2.0 lb Use this setting to cook ground beef or poultry as patties or in a casserole to be MEAT added to other ingredients. Place patties on a microwave-safe rac...
Page 15
REHEAT CUPS2 REHEAT automatically computes the correct heating time and microwave power level for foods shown in the Repeat touching same number pad 2 to chart below. increase quantity to 3 cups. (Ex:...
Page 16
REHEAT CHART (continued) 6. Fresh 1-8 Use this setting to warm rolls, muffins, biscuits, bagels etc. Large items Rolls/ should be considered as 2 or 3 regular size. Arrange on plate; cover Muffins wit...
Page 17
DEFROST CENTER After defrost cycle ends, cover and let stand DEFROST CENTER defrosts all the foods shown in the as indicated in chart below. DEFROST CENTER CHART below. Round the weight to the nearest...
Page 18
MULTIPLE SEQUENCE MORE OR LESS TIME COOKING ADJUSTMENT Your oven can be programmed for up to 3 automatic Should you discover that you like any of the COOK, cooking sequences, switching from one power ...
Page 19
CHILD LOCK DEMONSTRATION MODE The Child Lock prevents unwanted oven operation To demonstrate, touch TIMER/CLOCK, the number such as by small children. 0, close the door and then touch the START/ The o...
Page 20
REHEATING CHART START ING EM IME EMICROWAVE TEMPERATURE Plate of Food MED.-HIGH (70%) Meaty portions and bulky 1 serving of meat, Room temp. 1 - 2 min. vegetables to outside. 2 servings of vegetables ...
Page 21
Please check the following before calling for service: Place one cup of water in a glass measuring cup in the oven and close the door securely. Operate the oven for one minute at HIGH 100%. Does the o...
Page 22
AC Line Voltage: Single phase 120V, 60Hz, AC only AC Power Required: 1600 watts, 14.0 amps. Output Power: 1100 watts* Frequency: 2450 MHz Outside Dimensions: 21 11/16"(W) x 12 3/8"(H) x 17 3...
Page 23
Para mayor informacion y precauciones de seguridad, consulte el Manual de Operaciones. PONER LA HORA CENTRO DE COCINAR Si aparece 88:88 en la pantalla, primero oprima Oprima POPCORN una vez para "...
Page 24
H G For more complete information and safety precautions, refer to your Operation Manual. SET CLOCK COOK CENTER If 88:88 is in the display, first touch Touch BAKED POTATOES pad BAKED STOP/CLEAR. TIMER...
