SHARP HT-SL70 HT-SL75 Operation Manual

Summary

Upgrade your visual entertainment with this comprehensive sound bar home theater system, designed for immersive and powerful audio performance. This manual provides detailed step-by-step instructions covering all aspects of installation and operation. Whether you are connecting via HDMI ARC for optimal image/sound synchronization or utilizing analogue inputs, the guide details optimal wiring and setup methods for various TV sizes. It is essential reading for homeowners, tech enthusiasts, and anyone seeking to dramatically enhance their flat-screen television's audio experience with reliable performance and simple integration.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 16 ›
‹ SHARP HT-SL70 HT-SL75 Operation Manual - Page 1 ›

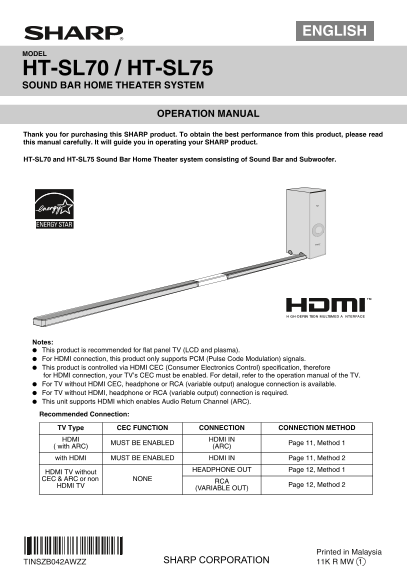

Page 1 Text Content

ENGLISH

MODEL

HT-SL70 / HT-SL75 SOUND BAR HOME THEATER SYSTEM

OPERATION MANUAL

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.

HT-SL70 and HT-SL75 Sound Bar Home Theater system consisting of Sound Bar and Subwoofer.

Notes: This product is recommended for flat panel TV (LCD and plasma). For HDMI connection, this product only supports PCM (Pulse Code Modulation) signals. This product is controlled via HDMI CEC (Consumer Electronics Control) specification, therefore for HDMI connection, your TV’s CEC must be enabled. For detail, refer to the operation manual of the TV. For TV without HDMI CEC, headphone or RCA (variable output) analogue connection is available. For TV without HDMI, headphone or RCA (variable output) connection is required. This unit supports HDMI which enables Audio Return Channel (ARC).

Recommended Connection:

TV Type CEC FUNCTION CONNECTION CONNECTION METHOD HDMI HDMI IN

Page 11, Method 1

( with ARC) MUST BE ENABLED (ARC)

with HDMI MUST BE ENABLED HDMI IN Page 11, Method 2

HEADPHONE OUT Page 12, Method 1

HDMI TV without CEC & ARC or non NONE

HDMI TV Page 12, Method 2

(VARIABLE OUT)

Printed in Malaysia TINSZB042AWZZ 11K R MW 1

2011September20

HT-SL70_75_Front ZB042EN.fm

Page Summary Contents For SHARP HT-SL70 HT-SL75 Operation Manual

Page 1 ENGLISH MODEL HT-SL70 / HT-SL75 SOUND BAR HOME THEATER SYSTEM OPERATION MANUAL Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual ca...
Page 2 Accessories The following accessories are included. This product has no remote control. RCA to Headphone Subwoofer Stand x 2 Audio Cable x 1 HDMI Cable x 1 Wall Mount Cable (1pin - 2 pins) x 1 (GITAUA...
Page 3 Special Notes NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonabl...
Page 4 Important Safety Instructions Electricity is used to perform many useful functions, but it 17) Object and Liquid Entry - Never push objects of any kind can also cause personal injuries and property da...
Page 5 For U.S customer only CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when ship in its origina...
Page 6 Precautions Warnings: General The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other Please ensure that the equipment is positioned in a than ...
Page 7 Controls and indicators Sound bar FRONT VIEW REAR VIEW The spec label illustration may be different from the actual label used. MODEL NO. HT-SL70 SOUND BAR HOME THEATER SYSTEM SPEAKER : FULL RANGE X 4...
Page 8 System preparation 2. Place the two sound bars adjacent to each other and Make sure to unplug the AC power cord before slot in the sound bar joint and its cover as below. installing the unit or changi...
Page 9 System preparation (continued) /1 6" (1 2. Using stand (vertical arrangement) For model Use sound bar stand cover : 10 - 2/16" (257 mm). HT-SL75 Use stand base : 13 - 7/32" (336 mm). Sl...
Page 10 System preparation (continued) Caution: Screw the wall mount angle to the wall as shown in Be very careful to prevent the sound bar from falling when the illustration. (Total screw is 4 pieces) mounti...
Page 11 Placing the system Installation image: Notes: As the sound from the system is omni-directional, you can place the speaker anywhere you like. However, it is recommended to place it as close to the TV a...
Page 12 System connections (continued) Connecting to TV (with HDMI) Caution: Turn off all other equipment before making this connection. Set the TV at low volume before turning on the system. Notes: This unit...
Page 13 System connections (continued) Connecting a TV (with AUDIO IN (TV)) Connect to the TV using an audio cable. 1. Method 1 To HEADPHONE terminal Audio cable Subwoofer To AUDIO IN (TV) input terminal ud i...
Page 14 General Control Make sure to enable the HDMI CEC when making HDMI connection. For details, refer to the operation manual of the TV. To turn the power on Plug the AC power cord into a AC outlet, the st...
Page 15 Troubleshooting chart Many potential problems can be resolved by the owner without calling a service technician. Condensation If something is wrong with this product, check the following Sudden temper...
Page 16 Specifications As part of our policy of continuous improvement, SHARP reserves the right to make design and specification Soundbar speaker changes for product improvement without prior notice. The per...
