Page 1

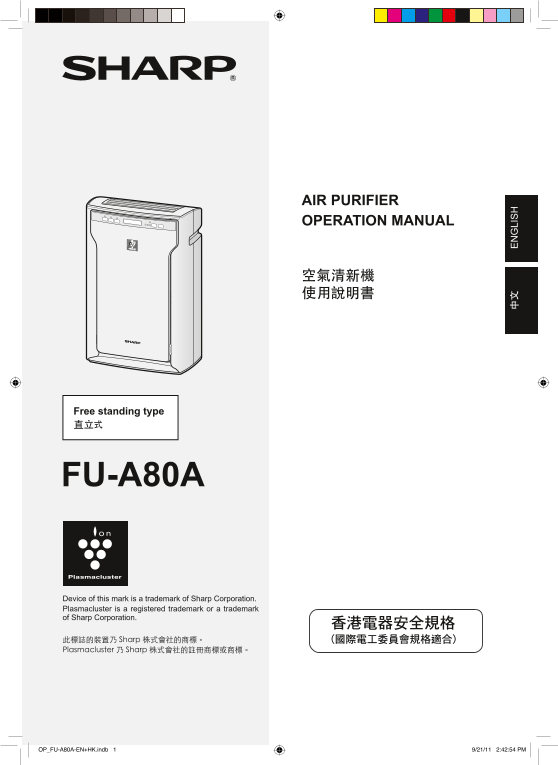

AIR PURIFIER OPERATION MANUAL Free standing type FU-A80A Device of this mark is a trademark of Sharp Corporation. Plasmacluster is a registered trademark or a trademark of Sharp Corporation. OP_FU-A80...
Page 2
Please read before operating your new Air Purifier Some odor ingredients absorbed by the filters may become separated and may be discharged through the air outlet and result in additional odor. Depend...
Page 3
ENGLISH FEATURES CONTENTS EXCLUSIVE AIR PURIFYING IMPORTANT SAFETY INSTRUCTIONS .....E-2 TECHNOLOGY Filtration System + Plasmacluster Ion PART NAMES ...........................................E-4 FILT...
Page 4
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using the unit. When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce t...
Page 5
CAUTIONS CONCERNING OPERATION • Do not block the air inlet and air outlet. • Do not use the unit near or on hot objects, such as stoves or heaters or radiators. • Do not lay the unit down when using. ...
Page 6
PART NAMES ILLUSTRATIVE DIAGRAM Air Outlet Air Inlet Handle Main Unit HEPA Filter Active Carbon Deodorizing Filter Dust Sensor Date Label Power Cord OP_FU-A80A-EN+HK.indb 4 9/21/11 2:43:03 PM
Page 7
CONTROL PANEL SHOWER Button / SHOWER Indicator Light (green) Plasmacluster ON / OFF Button / Plasmacluster ON / OFF Indicator Light (green) CHILD LOCK Button / CHILD LOCK Indicator Light (green) CLEAN...
Page 8
Unplug the electrical cord before FILTER INSTALLATION installation. To maintain the quality of the filters, they are packed in plastic bags and installed in the main unit. Be sure to remove the filter...
Page 9
OPERATION 1 Press to start / stop. CLEAN SIGN Unless the power cord has been unplugged, the operation starts in the previous mode it The Dust sensor automatically monitors was operated in. indoor air ...
Page 10
Care Cycle : MAINTENANCE Whenever dust accumulates on the unit or every 1 month. CLEANING THE FILTERS CLEANING THE UNIT Wipe with a dry, soft cloth. 1 Turn off the unit, and unplug the power cord. For...
Page 11
FILTER REPLACEMENT GUIDELINES Filter life varies depending on the room environment, usage, and location of the unit. If dust or odor persists, replace the filter. Replacement Cycle • HEPA Filter About...
Page 12
TROUBLESHOOTING Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunctions. PROBLEM SOLUTION The unit leaves smoke and • Clean or repla...
Page 13
SPECIFICATIONS Model FU-A80A Power supply 220V, 50 Hz Fan Fan Speed MAX MED LOW Speed Rated Power (W) Operation Air flow (m3/hour) Noise Level (d BA) Recommended Applicable Floor Area *1 62m2 Sensor D...
Page 14
OP_FU-A80A-EN+HK.indb 12 9/21/11 2:43:17 PM
Page 15
OP_FU-A80A-EN+HK.indb 1 9/21/11 2:43:19 PM
Page 16
OP_FU-A80A-EN+HK.indb 2 9/21/11 2:43:21 PM
Page 17
OP_FU-A80A-EN+HK.indb 3 9/21/11 2:43:25 PM
Page 18
OP_FU-A80A-EN+HK.indb 4 9/21/11 2:43:28 PM
Page 19
OP_FU-A80A-EN+HK.indb 5 9/21/11 2:43:30 PM
Page 20
OP_FU-A80A-EN+HK.indb 6 9/21/11 2:43:32 PM
Page 21
OP_FU-A80A-EN+HK.indb 7 9/21/11 2:43:36 PM
Page 22
OP_FU-A80A-EN+HK.indb 8 9/21/11 2:43:38 PM
Page 23
OP_FU-A80A-EN+HK.indb 9 9/21/11 2:43:40 PM
Page 24
OP_FU-A80A-EN+HK.indb 10 9/21/11 2:43:42 PM
Page 25
OP_FU-A80A-EN+HK.indb 11 9/21/11 2:43:45 PM
Page 26
OP_FU-A80A-EN+HK.indb 12 9/21/11 2:43:46 PM
Page 27
OP_FU-A80A-EN+HK.indb 13 9/21/11 2:43:46 PM
Page 28
SHARP CORPORATION Osaka, Japan Printed in Thailand TINS-A519KKRZ 11J- TH 1 OP_FU-A80A-EN+HK.indb 14 9/21/11 2:43:47 PM
