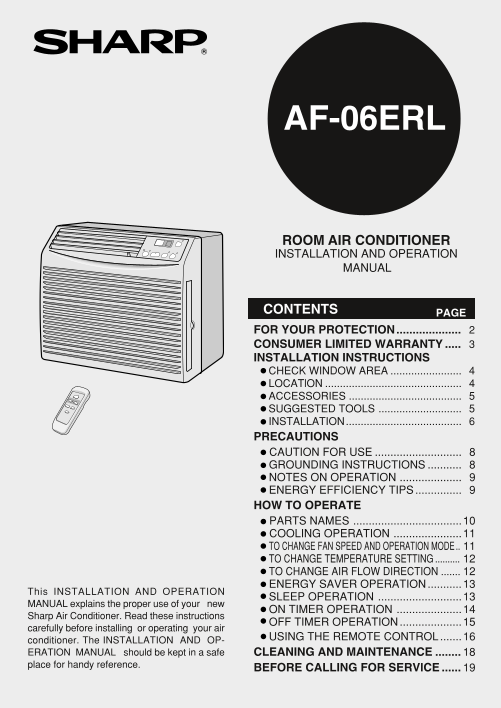

AF-06ERL

ROOM AIR CONDITIONER INSTALLATION AND OPERATION MANUAL

PAGECONTENTS

FOR YOUR PROTECTION.................... CONSUMER LIMITED WARRANTY INSTALLATION INSTRUCTIONS • CHECK WINDOW AREA • LOCATl ON • ACCESSORIES • SUGGESTED TOOLS • INSTALLATION....................................... PRECAUTIONS • CAUTION FOR USE • GROUNDING INSTRUCTIONS • NOTES ON OPERATION • ENERGY EFFICIENCY TIPS HOW TO OPERATE • PARTS NAMES ...................................10 • COOLING OPERATION ......................11 • TO CHANGE FAN SPEED AND OPERATION MODE • TO CHANGE TEMPERATURE SETTING • TO CHANGE AIR FLOW DIRECTION • ENERGY SAVER OPERATION...........13

This INSTALLATION AND OPERATION

• SLEEP OPERATION ...........................13

MANUAL explains the proper use of your new

• ON TIMER OPERATION .....................14

Sharp Air Conditioner. Read these instructions

• OFF TIMER OPERATION....................15

carefully before installing or operating your air

• USING THE REMOTE CONTROL.......16

conditioner. The INSTALLATION AND OP- ERATION MANUAL should be kept in a safe CLEANING AND MAINTENANCE place for handy reference.

BEFORE CALLING FOR SERVl CE

Page Summary Contents For SHARP AF-06ERL User Guide

Page 1 AF-06ERL ROOM AIR CONDITIONER INSTALLATION AND OPERATION MANUAL PAGECONTENTS FOR YOUR PROTECTION.................... CONSUMER LIMITED WARRANTY INSTALLATION INSTRUCTIONS • CHECK WINDOW AREA • LOCATl ON...
Page 2 FOR YOUR PROTECTION To aid in answering questions if you call for service or for reporting loss or theft, please record below the model and serial number located on the right side of the unit. MODEL N...
Page 3 CONSUMER LIMITED WARRANTY CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when shipped in its ...
Page 4 INSTALLATION INSTRUCTIONS Before beginning installation, read these instructions carefully. Use the enclosed MOUNTING KIT for proper installation. CHECK WINDOW AREA The mounting kit is designed for wo...
Page 5 INSTALLATION INSTRUCTIONS ACCESSORIES No. Accessories Q'ty Right closure assembly Left closure assembly Window sash foam seal Window sash foam seal (adhesive type) Bottom gasket Screws (L=1", 25....
Page 6 INSTALLATION INSTRUCTIONS INSTALLATION WARNING: Make sure the unit is turned off and unplugged before working. Cut the window sash foam seal (adhesive type) to the proper length and attach it to the u...
Page 7 INSTALLATION INSTRUCTIONS Closure assembly (Left) Insert the closure assemblies on both sides into the rails of the jamb.5 (Left) Indoor side Closure assembly (Left) Indoor side 1/2 inches (13mm) Stoo...
Page 8 PRECAUTIONS CAUTION FOR USE IMPORTANT: Points to keep in mind when using your air conditioner. Install the air conditioner by following the installation instructions given in the previous section of t...
Page 9 PRECAUTIONS NOTES ON OPERATION Allow 3 minutes for the compressor to restart cooling. If you turn the air conditioner off and immediately restart it, allow three minutes for the compressor to restart ...
Page 10 HOW TO OPERATE PARTS NAMES UNIT Front Cabinet Air Inlet (Indoor Side) Horizontal Louvers Vertical Louvers Air Outlet (Indoor Side) Control Panel Rear Cabinet Air Inlet (Outdoor side) Filter (Pull the ...
Page 11 HOW TO OPERATE COOLING OPERATION POWER COOL indicator indicator Touch POWER ON/OFF pad. The unit is preset at 74°F and HIGH COOL. This will show in the display POWER when the power is first turned on....
Page 12 HOW TO OPERATE TO CHANGE TEMPERATURE SETTING During cooling operation POWER Touch the TEMPERATURE setting ON/OFF pad to adjust the temperature set- ting. TEMPCOOLSLEEP ---Lower temp. ---Raise temp. EN...
Page 13 HOW TO OPERATE ENERGY SAVER OPERATION During normal operation, the thermostat automatically controls cooling and the fan runs continu- ously. When the ENERGY SAVER OPERATION is selected, the thermosta...
Page 14 HOW TO OPERATE ON TIMER OPERATION This unit has a built-in timer that can be programmed to start the unit up to 12 hours in advance. You can set the timer to start in increments of 30 minutes (0.5 hou...
Page 15 HOW TO OPERATE OFF TIMER OPERATION This unit has a built-in timer that can be programmed to shut the unit off up to 12 hours in advance. You can set the timer to stop in increments of 30 minutes (0.5 ...
Page 16 HOW TO OPERATE USING THE REMOTE CONTROL INSTALLING BATTERIES Battery compartment cover Use two size-AA (R6) batteries. Open the battery compartment cover. Insert and slide the batteries into the compa...
Page 17 HOW TO OPERATE OPERATING WITH THE REMOTE CONTROL TRANSMITTER POWER ON/OFF button POWER Push to start or stop the operation. ON OFF TEMP. button TEMP. TEMP. ---Raise temp. setting 1°F at a time. TEMP. ...
Page 18 CLEANING AND MAINTENANCE CLEANING THE FILTER If the filter is clogged with dust, the amount of air flow will be reduced, resulting in poor cooling performance. The filter should be cleaned every 10 da...
Page 19 BEFORE CALLING FOR SERVl CE IF YOUR AIR CONDITIONER DOES NOT OPERATE PROPERLY, PLEASE CHECK THE FOLLOWING ITEMS BEFORE CALLING FOR SERVICE. AIR CONDITIONER DOES NOT OPERATE AT ALL Is the unit plugged ...
Page 20 SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 SHARP CORPORATION Osaka, Japan Printed in Thailand TINSEA367JBRZ 03MO TH
