1_E150MP170MPcov.fm Page 1 Monday, September 17, 2001 5:05 PM
Sync Master150MP Sync Master170MP (For PAL systems) TFT-LCD Monitor
Owner’s Instructions
Page Summary Contents For Samsung SyncMaster 150MP SyncMaster 170MP Monitor User Guide
Page 1

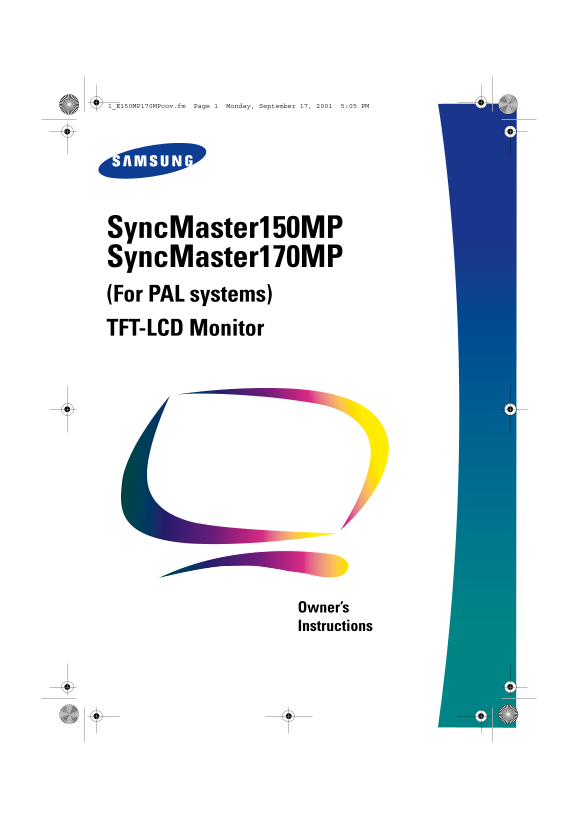

1_E150MP170MPcov.fm Page 1 Monday, September 17, 2001 5:05 PM Sync Master150MP Sync Master170MP (For PAL systems) TFT-LCD Monitor Owner’s Instructions
Page 2
1_E150MP170MPcov.fm Page 2 Monday, September 17, 2001 5:05 PM For Better Display 1. Adjust computer resolution and screen injection rate (refresh rate) in control panel of computer as described below ...
Page 3
2_E150MP170MPtoc.fm Page 1 Wednesday, September 19, 2001 3:55 PM Table of Contents Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 4
3_E150MP170MPsaf.fm Page 2 Wednesday, September 19, 2001 3:57 PM Safety Instructions Before connecting the AC power cord to the DC adapter outlet, make sure the voltage designation of the DC adapter c...
Page 5
4_E150MP170MPbody.fm Page 3 Wednesday, September 19, 2001 2:54 PM Unpacking Your Monitor Please make sure the following items are included with your monitor. If any items are missing, contact your dea...
Page 6
4_E150MP170MPbody.fm Page 4 Wednesday, September 19, 2001 2:54 PM Setting up Your LCD Monitor Setting up an Ergonomic Workstation Consider the advice given below before you install your monitor. Monit...
Page 7
4_E150MP170MPbody.fm Page 5 Wednesday, September 19, 2001 2:54 PM Setting up Your LCD Monitor Connecting Your LCD Monitor IN OUT DVD or VCR Figure 3. Cable connections Connect the power cord to the DC...
Page 8
4_E150MP170MPbody.fm Page 6 Wednesday, September 19, 2001 2:54 PM Setting up Your LCD Monitor Plug and Play The adoption of the new VESA Plug and Play solution eliminates complicated and time con- sum...
Page 9
4_E150MP170MPbody.fm Page 7 Wednesday, September 19, 2001 2:54 PM Setting up Your LCD Monitor If the monitor is functioning properly, you will see a white box with a large blue oval Samsung logo and a...
Page 10
4_E150MP170MPbody.fm Page 8 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor User Controls Your LCD monitor allows you to easily adjust the characteristics of the image being displayed...
Page 11
4_E150MP170MPbody.fm Page 9 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor No. Name Description Moves the selector up or down on the OSD. - CH + Increases or decreases the channel nu...
Page 12
4_E150MP170MPbody.fm Page 10 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Direct-Access Features While you are watching full screen TV or in PIP mode Valid only after performing &q...
Page 13
4_E150MP170MPbody.fm Page 11 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor ON-Screen Display(OSD) Function icons AUTO ADJUSTMENT Function name Setting bar Tool Tip Auto Adjustment P...
Page 14
4_E150MP170MPbody.fm Page 12 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor OSD functions and adjustments Table 1. Screen controls Menus and Function Descriptions Sub-menus Auto Adju...
Page 15
4_E150MP170MPbody.fm Page 13 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Table 1. Screen controls (Continued) Menus and Function Descriptions Sub-menus Fine The Fine and Coarse ad...
Page 16
4_E150MP170MPbody.fm Page 14 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Table 1. Screen controls (Continued) Menus and Function Descriptions Sub-menus Color The tone of color can...
Page 17
4_E150MP170MPbody.fm Page 15 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Table 1. Screen controls (Continued) Menus and Function Descriptions Sub-menus Manual Tune Due to the weak...
Page 18
4_E150MP170MPbody.fm Page 16 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Table 1. Screen controls (Continued) Menus and Function Descriptions Sub-menus Channel Sort Channel order ...
Page 19
4_E150MP170MPbody.fm Page 17 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Table 1. Screen controls (Continued) Menus and Function Descriptions Sub-menus The monitor has a built-in ...
Page 20
4_E150MP170MPbody.fm Page 18 Wednesday, September 19, 2001 2:54 PM Adjusting Your LCD Monitor Table 1. Screen controls (Continued) Menus and Function Descriptions Sub-menus Image Effect Image being di...
Page 21
4_E150MP170MPbody.fm Page 19 Wednesday, September 19, 2001 2:54 PM Appendix By Remote-Control Source Power On/Off • PIP on • TV • Full screen Turn on the OSD PIP Off • PIP PC Turn off the OSD, PIP • F...
Page 22
4_E150MP170MPbody.fm Page 20 Wednesday, September 19, 2001 2:54 PM Appendix Features that can only be accessed via remote controller Display Shows a current channel number and an audio type on the upp...
Page 23
4_E150MP170MPbody.fm Page 21 Wednesday, September 19, 2001 2:54 PM Appendix Power Saver This monitor has a built-in power management system called Power Saver. This system saves energy by switching yo...
Page 24
4_E150MP170MPbody.fm Page 22 Wednesday, September 19, 2001 2:54 PM Appendix Troubleshooting If you have a problem setting up or using your LCD monitor, you may be able to solve it yourself. Before con...
Page 25
4_E150MP170MPbody.fm Page 23 Wednesday, September 19, 2001 2:54 PM Appendix Table 3. Troubleshooting – Image (Continued) What you see... Suggested Actions Reference Screen is blank and The monitor is ...
Page 26
4_E150MP170MPbody.fm Page 24 Wednesday, September 19, 2001 2:54 PM Appendix Table 4. Troubleshooting – Audio and TV Problem Suggested Actions Reference No sound Ensure that the audio cable is firmly C...
Page 27
4_E150MP170MPbody.fm Page 25 Wednesday, September 19, 2001 2:54 PM Appendix Specifications Table 5. Technical and environmental specifications 150MP 170MP Panel Size 15.0” Diagonal 17.0” Diagonal Disp...
Page 28
4_E150MP170MPbody.fm Page 26 Wednesday, September 19, 2001 2:54 PM Appendix Table 5. Technical and environmental specifications 150MP 170MP Power Maximum 52 W Consumption Power Saving < 3 W < 3 ...
Page 29
4_E150MP170MPbody.fm Page 27 Wednesday, September 19, 2001 2:54 PM Appendix Pin Assignments Table 6. 15 pin D-sub connector Pin Separate H/V Composite H/V Sync-on-green Red Red Red Green Green Green +...
Page 30
4_E150MP170MPbody.fm Page 28 Wednesday, September 19, 2001 2:54 PM Appendix Display Modes If the signal from the system equals to the standard signal mode, the screen is adiusted automatically. If the...
Page 31
4_E150MP170MPbody.fm Page 29 Wednesday, September 19, 2001 2:54 PM Appendix Table 8. PAL Broadcasting Systems Model Color Sound Stereo Channel Countries Name System System System System CCIR Germany,A...
Page 32
4_E150MP170MPbody.fm Page 30 Wednesday, September 19, 2001 2:54 PM Appendix Installing VESA compliant mounting devices Refer to page 32 to fold the base. Rear cover mounting pad Mounting Align the mou...
Page 33
4_E150MP170MPbody.fm Page 31 Wednesday, September 19, 2001 2:54 PM Appendix Retractable Stand NOTE: *Please pull the rear retractable part of the stand when you tilt the monitor to the backward direct...
Page 34
4_E150MP170MPbody.fm Page 32 Wednesday, September 19, 2001 2:54 PM Appendix Attaching a wall or Arm mounting device The monitor supports VESA mounting standard for use with various VESA mounting devic...
Page 35
5_E150MP170MPix.fm Page 33 Wednesday, September 19, 2001 4:02 PM Index OSD Lock/Unlock 10 Audio control OSD Control 18 Automatic Save Auto adjustment PAL-NTSC connector 3 PAL Broadcasting System 29 Ba...
Page 36
6_E150MP170MPreg.fm Page 0 Wednesday, September 19, 2001 2:53 PM Regulatory Information FCC Information device must accept any interference received, including interference that may cause undesired op...
Page 37
